Unique, Mid-Century Modern Home on Wheels - Beautifully Handcrafted and Ultra High Spec

|
2806 | 10

ยฃ65,000
Campervan

Citroen Relay L3H2

Used
53,000 miles
2 Berths

Essential Information
Hob
Oven
Fridge
Kitchen Sink
Dining Table
Heater
Woodburner
Ceiling Fan/Vent
Shower - Internal
Toilet - Portable
Toilet - Built-in
Toilet - Composting
Pet Bed/Pet Friendly
Audio Inputs
Bike Rack
Extra Storage
Reversing Camera

Detailed Information
Vehicle Description

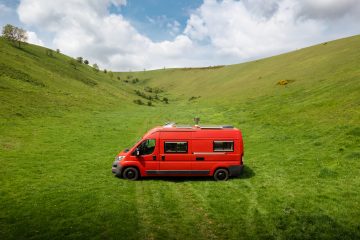

Impeccably well-maintained Citroen Relay L3H2 van – the most common motorhome base vehicle in Europe. These are incredibly reliable, maneuverable (fit into most standard parking bays with a small overhang at the back. Great turning circle, easy to park), and easy to work on and access parts for.

Rear parking sensors and reversing camera.
ScorpionTrack Thatcham Category S5 Vehicle Tracker fitted (massively reduces insurance premiums).
Mechanically this van is spot-on. Low mileage at only 53,000 – most of which is motorway and urban miles driven carefully without hard acceleration or braking.
Full service history, two keys, receipts of all work done and stamped logbook.
8 months’ MOT, passed with no advisories almost every year of its life.
Past MOT advisories include tyre wear, a new windscreen and small chip repair, brake pads and a couple of bulbs – all incredibly minor, standard wear-and-tear – no serious work undertaken, no accidents, bumps or knocks, fully serviced annually.
Bodywork is in excellent condition, with a few very small age-related marks. Paintwork had a full polish in spring 2023 to bring it back to vibrant pillar box red after some minor fading.
Spare wheel and jacking & towing kit.
Rear-mounted Thule double bike carrier.
Professionally resprayed black steel wheels with 5 nearly-new Michelin Agilis CrossClimate all-terrain tyres.
Milenco hardened-steel steering lock.
Approx 30mpg
Fully converted weight 2.6 tonnes – very light despite the use of quality materials such as stainless steel, birch plywood and ceramic tile.
Anevay chimney brings overall height to exactly 3m, which can be reduced slightly with the use of the chimney cap.

Conversion Description

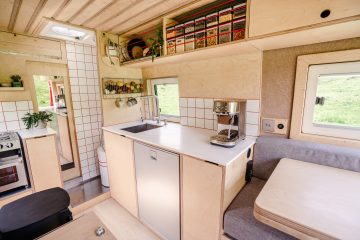

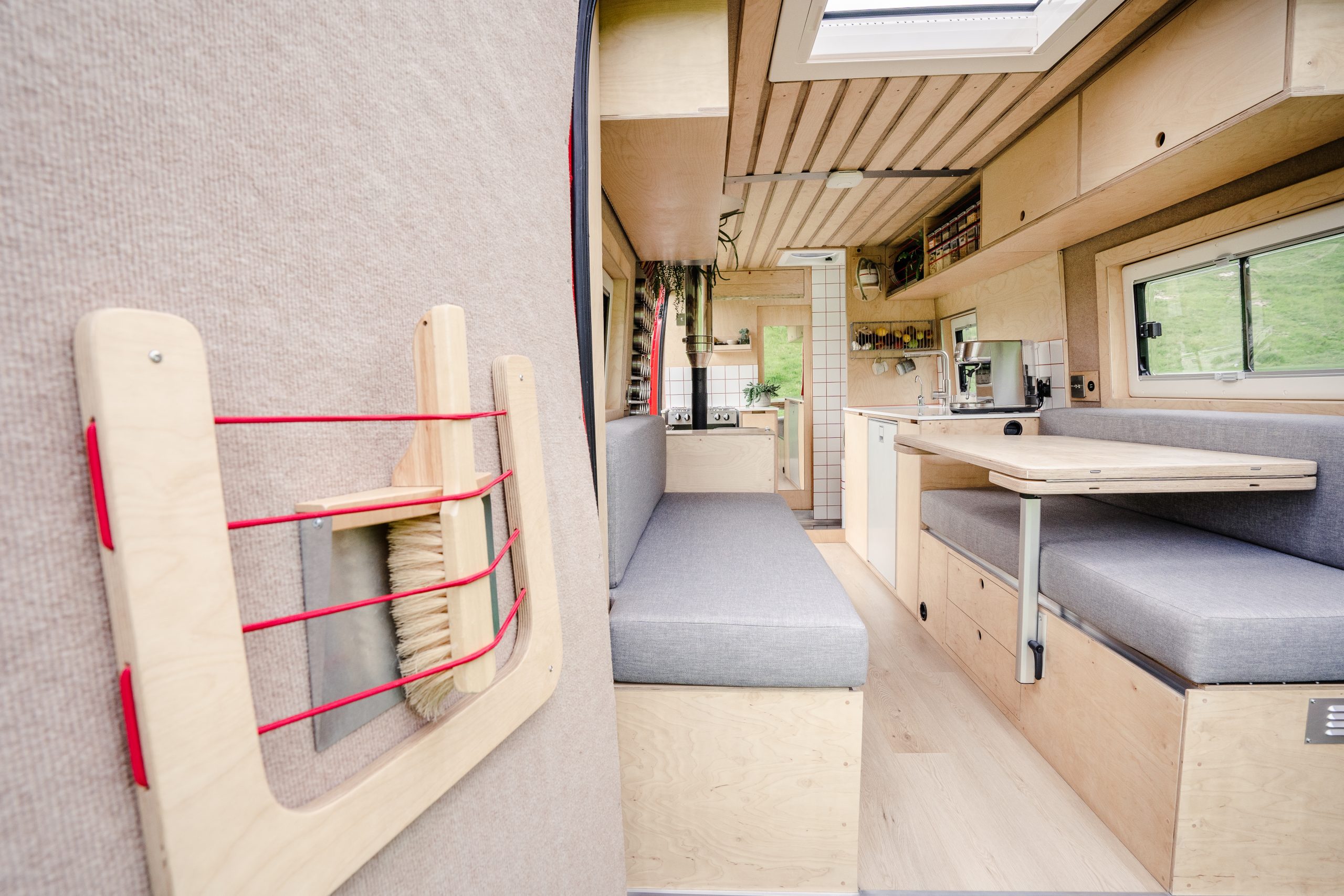

This is a highly unusual, one-of-a-kind, lovingly handbuilt camper van and tiny home. It is with a very heavy heart that I list this camper (my baby!) for sale โ€“ but due to a change in life circumstances, she just doesnโ€™t get the use she once did. I feel she should go to a home where sheโ€™ll be loved โ€“ I am in no rush to sell as finding the right buyer is essential.
It is incredibly spacious, functional and comfortable for its size due to the exceptionally thoughtful design. The build quality is superb, taking 8 months of hard work to complete โ€“ with all wood and metalwork created bespoke, from scratch, to a very high standard. No expense has been spared in building this rig, and the base vehicle was meticulously sourced.
It was built to be lived in full-time and travelled in long-term, and has traversed Europe with ease โ€“ always reliable, no breakdowns, faults or problems whatsoever throughout its life.
In short, this little home on wheels is warm in the winter and cool in the summer, has an extra large 115L fridge-freezer capacity, oven and hob, indoor shower, 480W solar array, battery to battery (drive) charging, 320Ah lithium leisure battery and huge off-grid electrical capacity. Underneath is 120L of water storage and 25L of LPG with exterior fill points. It boasts a premium stainless steel, ceramic tile and Norwegian birch plywood interior with bespoke upholstery by Jody Gray. A Truma Combi 4E boiler, Anevay Shepherd cast-iron wood burning stove, and copious storage make this camper exceptionally comfortable and capable year-round, on both long trips and weekends away.
It comes with a brand new Propex full habitation check certificate โ€“ ensuring gas, electric, and plumbing are all safe and working as they should โ€“ there is no damp or leaks, all fixtures and fittings are tight and properly secured. Essentially total peace of mind, knowing everything has been professionally checked over by an accredited engineer.
Full Specification:
Water and Gas:

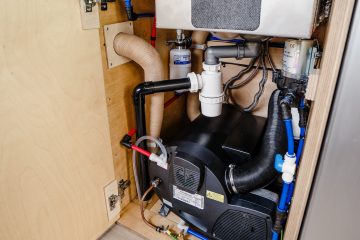

– Truma Combi 4E gas and electric boiler โ€“ instant hot water and central heating
– John Guest 12mm push fit pipework throughout and original fittings. Inserts and collars used on all joints to ensure long-term protection against leaks.
– Triple filtered water: Tank mounted Ceramet filter, in-line ceramic-carbon filter and General Ecology Nature Pure QC water filter (with dedicated faucet) provide cleaner, safer water than you have at home. General Ecology system worth ยฃ420 โ€“ capable of filtering the tiniest of particles including protozoa, cysts, fungi, hormones, pesticides, bacteria and more.

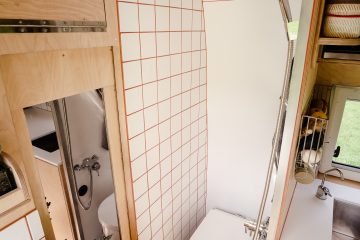

– Indoor hot shower with handmade stainless steel shower tray and water-saving head. Thermostatic mixer

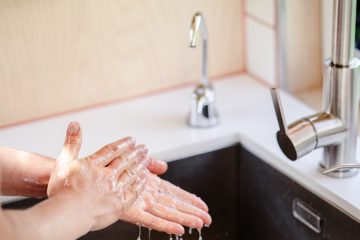

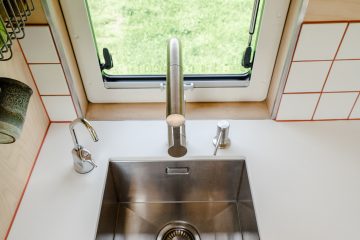

– Household stainless mixer tap with pull-out-spout and deep square sink with strainer
– 25L underslung Gas It (Stacko) tank with full rubberising spray protection and double-sleeved armoured copper lines, local isolation, Cavagna 30mb regulator, stainless steel pigtail, heat shield and correct thermoplastic fill hose, all clipped at the correct intervals. It is essential a camper gas system has been installed safely, abiding by regulations โ€“ and this exceeds all safety specs. Comes with Gas Safe certificate and has had three full gas services.
– Exterior water and gas fill points in the B pillar. Accepts standard bayonet Autogas fill hoses (petrol stations) and comes with a set of European adapters.
– 65L fresh and 55L grey underslung, insulated water tanks with taps
– LED water and gas level indicators
– Undersink bottle trap and shower flexiwaste to eliminate smells

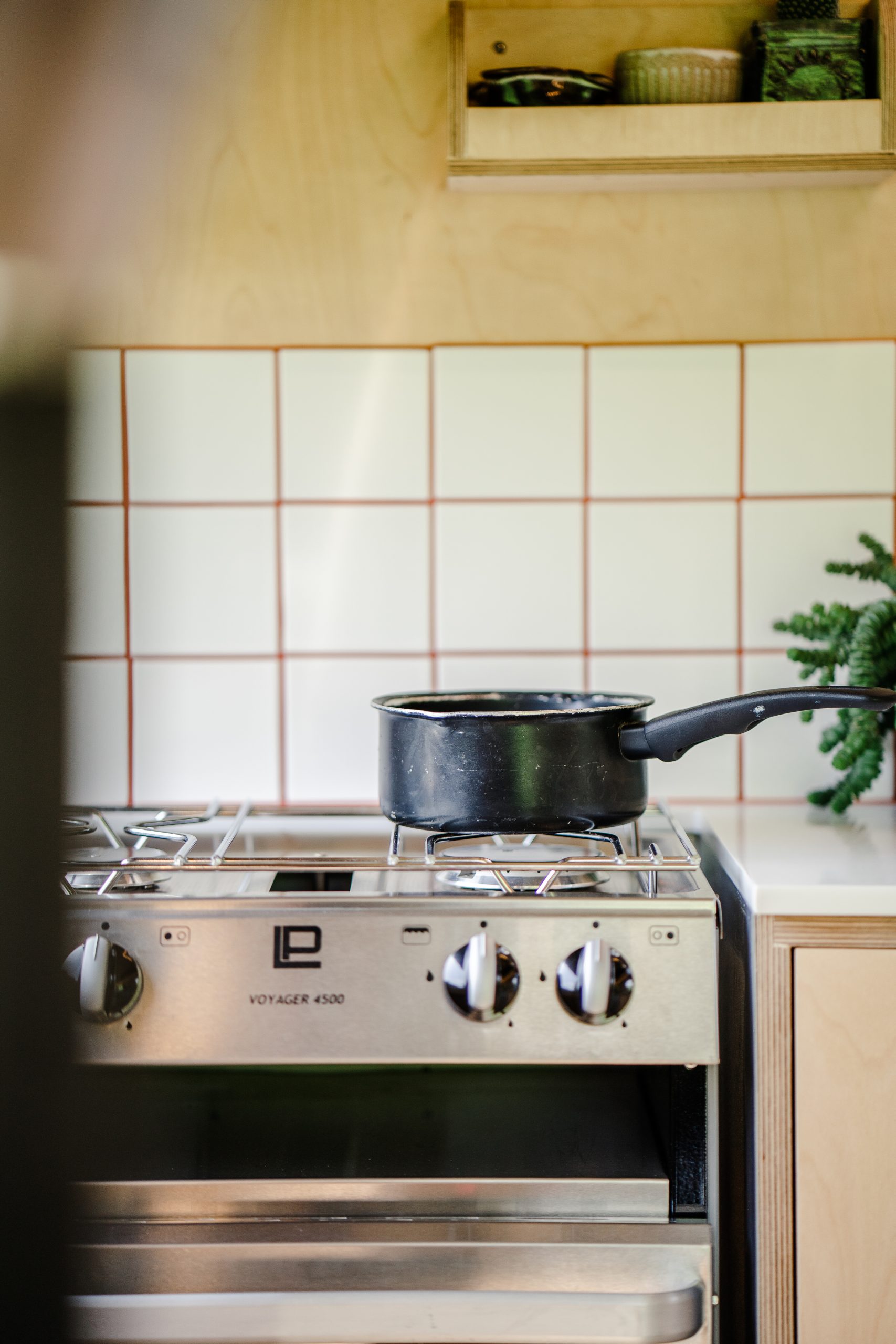

– Voyager 4500 marine gas oven and two burner hob
– Shurflo 30psi water pump with switch
– Local gas drop out vents and isolation taps for each appliance

Electrical:
– 320Ah Roamer smart lithium leisure battery with internal BMS protection
– Best quality components from Blue Sea, including 300Ah terminal (cube) fuse, 12v blade fuse holder, battery isolation switch and more.
– Best quality insulated crimp terminals and WAGOs used throughout for solid, reliable connections โ€“ neat and tidy heat shrink, careful cable management, conduit, high-quality LINEAX thick-wall cable, high-quality fuses โ€“ all ensure an exceptionally safe system.
– Victron charge controllers and Orion 12/12-30 battery to battery charger enable optimal solar charging and charging while driving.
– Sterling 1600w pure sine wave inverter with surge of well over 2000w to be able to power high-consumption 230v appliances from espresso machines to blenders. Remote switch.
– 4 12v USB fast charging ports
– 5 320v sockets in brushed stainless-steel (matching light switches)
– Double pole solar isolation and additional MC4 fuses
– Rigid monocrystalline solar panels (300W and 180W) and glands from Photonic Universe with 6mm cable and Renogy MC4 connectors, solidly mounted to steel unistrut rack (secured to Citroen roof t pieces, ensuring max strength with no holes drilled through the roof โ€“ no potential for leaks)
– Midi and mega fuse distribution board and high-quality 500A busbars.
– Metal consumer unit with RCD and MCBs
– Electrical Installation Condition Report (EICR) carried out on completion, all tested and working perfectly.
– 115L Isotherm (Webasto) 12V compressor fridge-freezer. Very low energy consumption and exceptionally quiet. Stainless front.

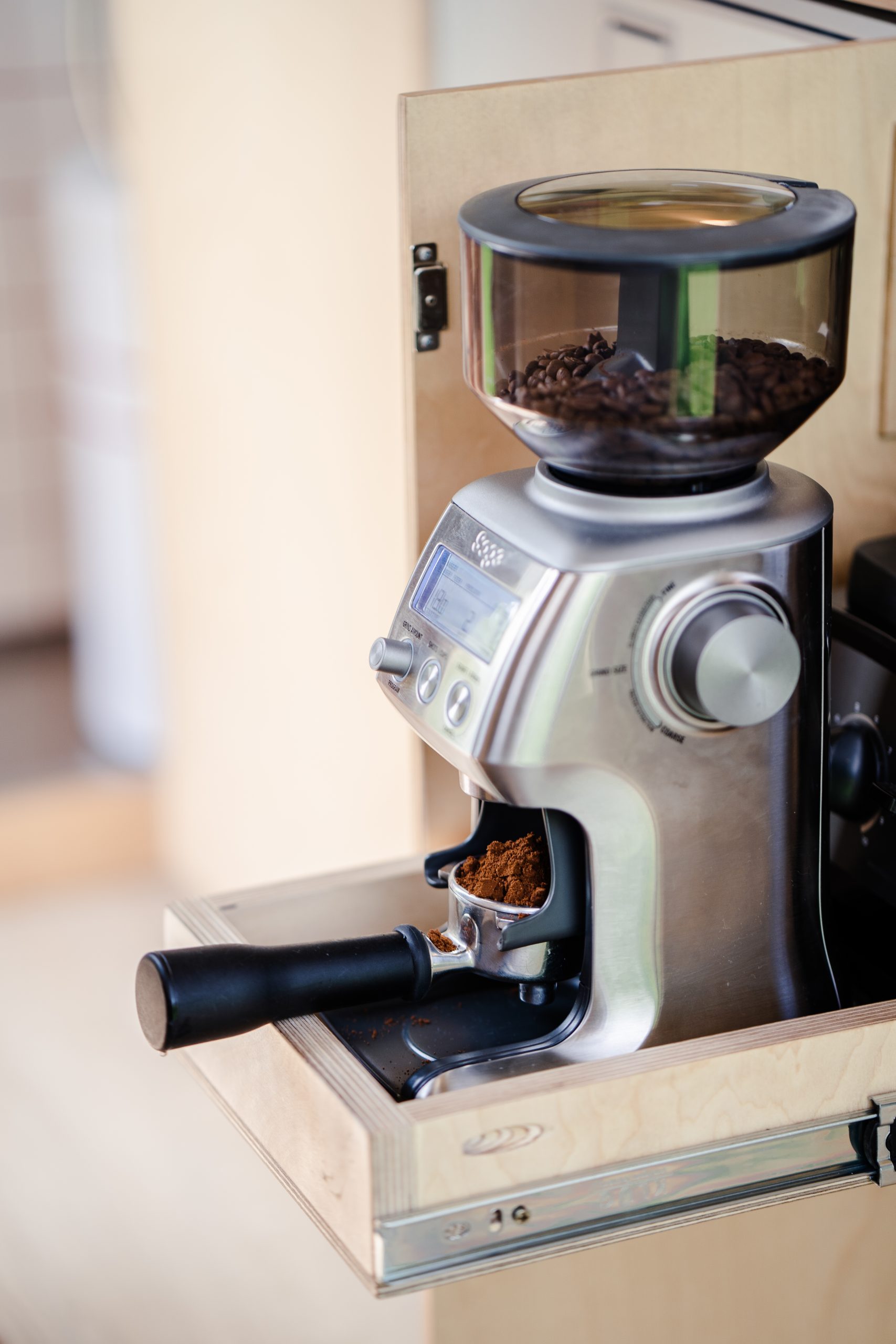

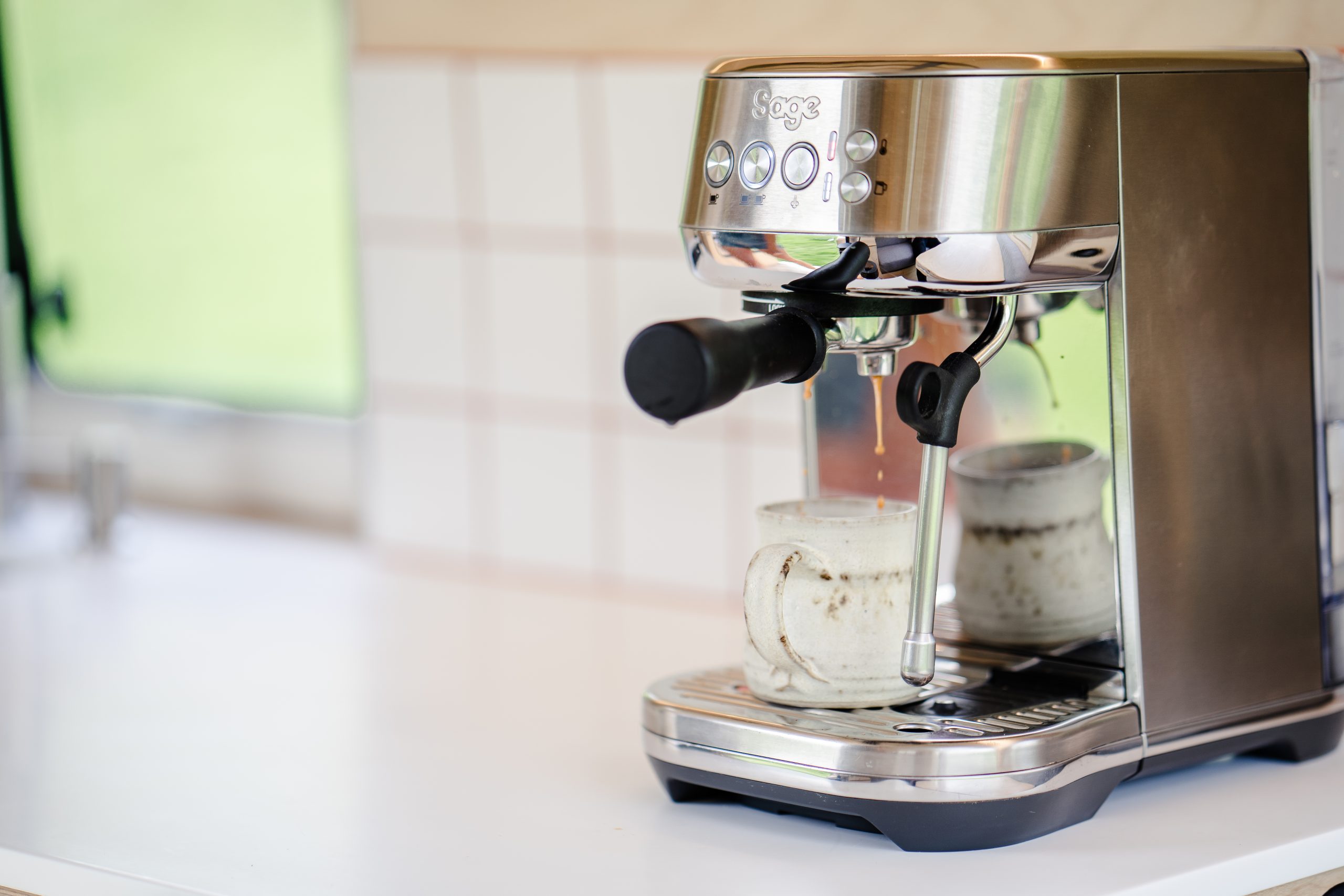

– Appliance drawer with CNC drag chain for anything from blenders to espresso machines, coffee grinders, photography equipment. Allows appliances to be used and then tucked away while remaining plugged in with cables safely out of the way.
– Low-profile aerial and hardwired router from Motorhome wifi. Strong 4G connection.

Heating and Cooling:
– MaxxAir fan, clear smoke tint positioned over the shower and hob, serving as an extractor fan and can blow cool air in on hot days. Remote.

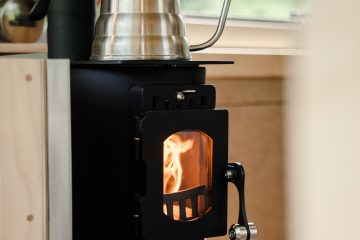

– Anevay Shepherd stove โ€“ 1.8kw cast iron wood burner โ€“ beautiful little unit with striking chimney and spark arrestor which attracts admirers wherever it goes. Can heat the space to the mid 20 degrees C within half an hour, burning very cleanly with compressed logs, and can hold heat all night without needing to be reloaded. Itโ€™s not an overstatement to say I LOVE this wood burner โ€“ it dries out wet clothes and wetsuits, prevents damp and condensation, and creates a cosy ambience which is impossible to replicate with any other heat source. The difference between this dry heat source and gas or diesel is remarkable and makes tiny living a real joy. I will miss this the most.
– Handmade aluminium heat shields with air gaps and a large exterior air intake vent ensure there is always enough oxygen for both you and the stove, and the surrounding surfaces are safely cool to touch. All minimum clearances have been observed and assessed by an independent stove installer for safety.
– Google Nest carbon monoxide and smoke alarm ensures you are protected while inside the motorhome, and alerted via your smartphone if an incident occurs while you are away, protecting your asset.
– Large under-stove wood storage area, log bag and firelighter jar.

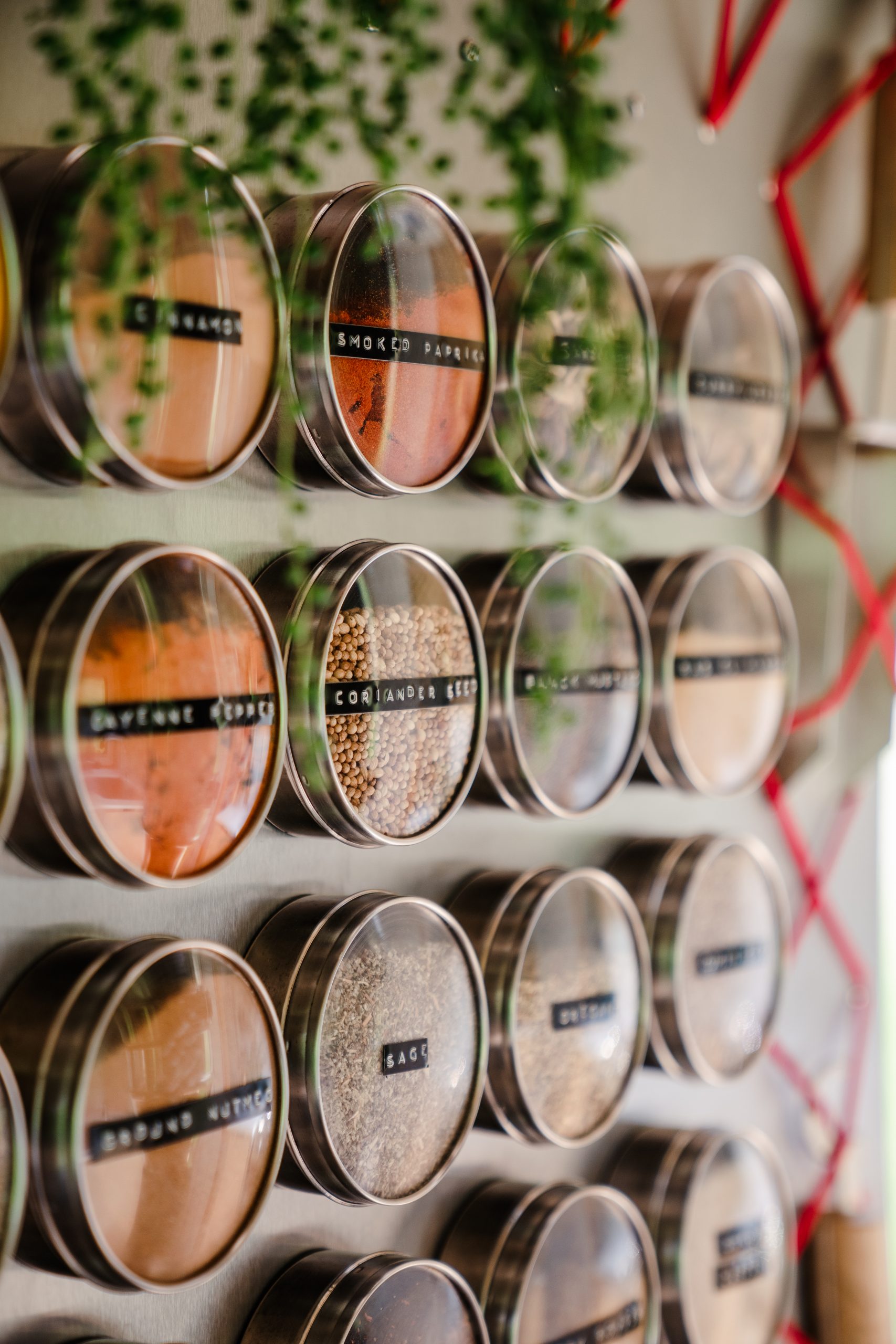

– Extra large magnetic stainless steel heat shield and bungee rack. I used this for magnetic spice jars (pictured) and to store my axe and wood burner tools.
– Magnetic stainless steel ceiling trim can be used with magnetic carabiners to make a washing line for drying clothes (carefully!)
– Truma Combi 4E boiler (as above) for when you donโ€™t have time to light the burner, on warmer nights, and when you need hot water for showers and dishes. Hot blown air ducting runs throughout the living space.

Fixtures and Fittings
– Dometic Midi Heki large double-glazed skylight above the bed which is incredible for stargazing. Lets loads of light in while being thermally efficient & fully openable. Used in conjunction with the Maxxfan, creates a convection current to quickly cool the van on hot days. Integrated blackout blind and fly screen.
– Four large top-hinged/sliding Dometic Seitz S4 double glazed windows with integrated fly screens and blackout blinds.
– Dedicated plant holders and salt & pepper shelf over the hob
– Integrated washing-up liquid dispenser in the countertop by the sink โ€“ no fiddly bottles

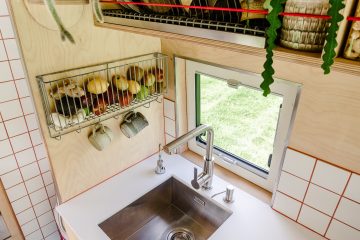

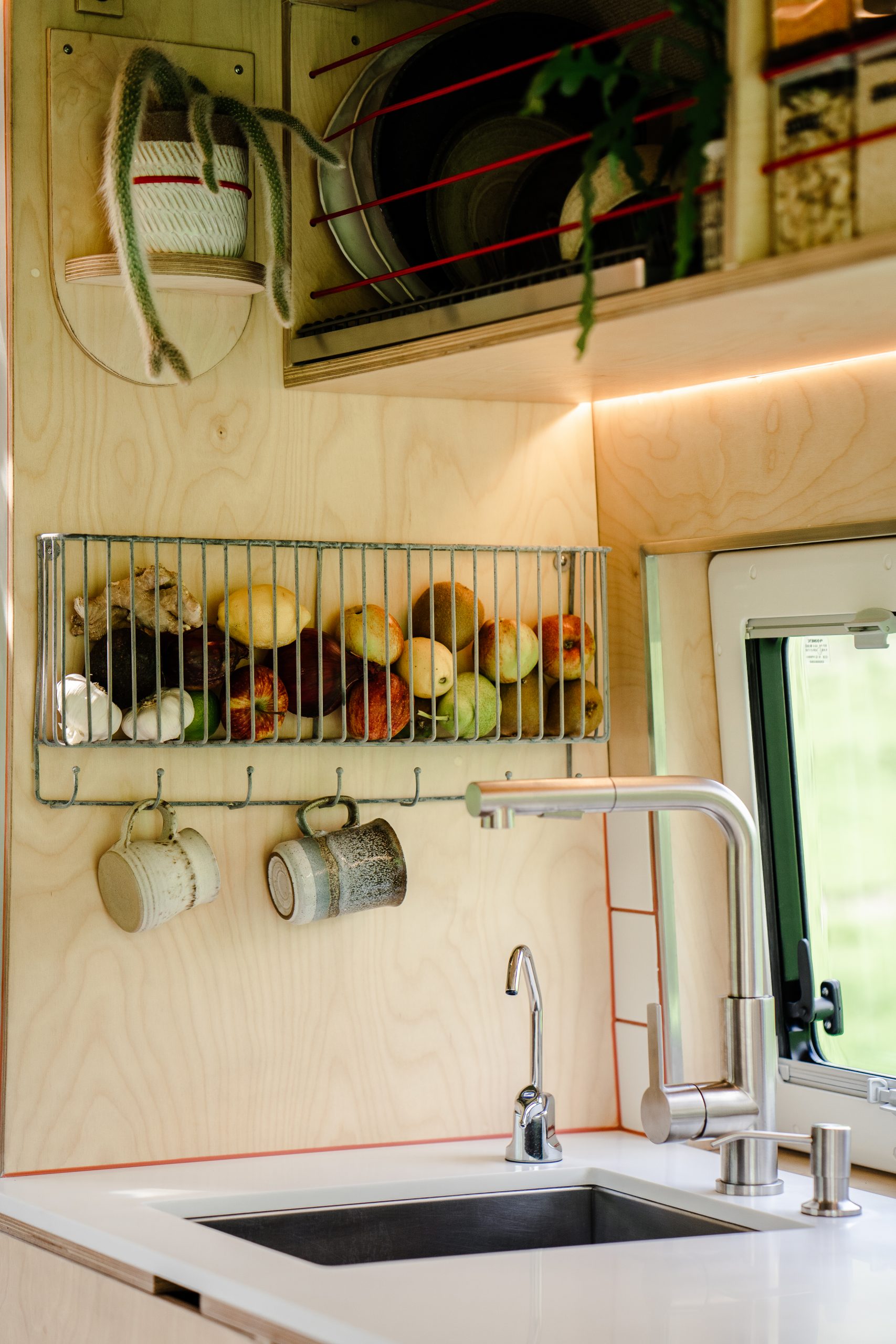

– Large fruit basket with hooks for mugs, cloths etc.
– Stainless steel draining board above the sink โ€“ plates and bowls can be stored here when clean and will not move or rattle when driving. Vintage stoneware jar for cutlery.

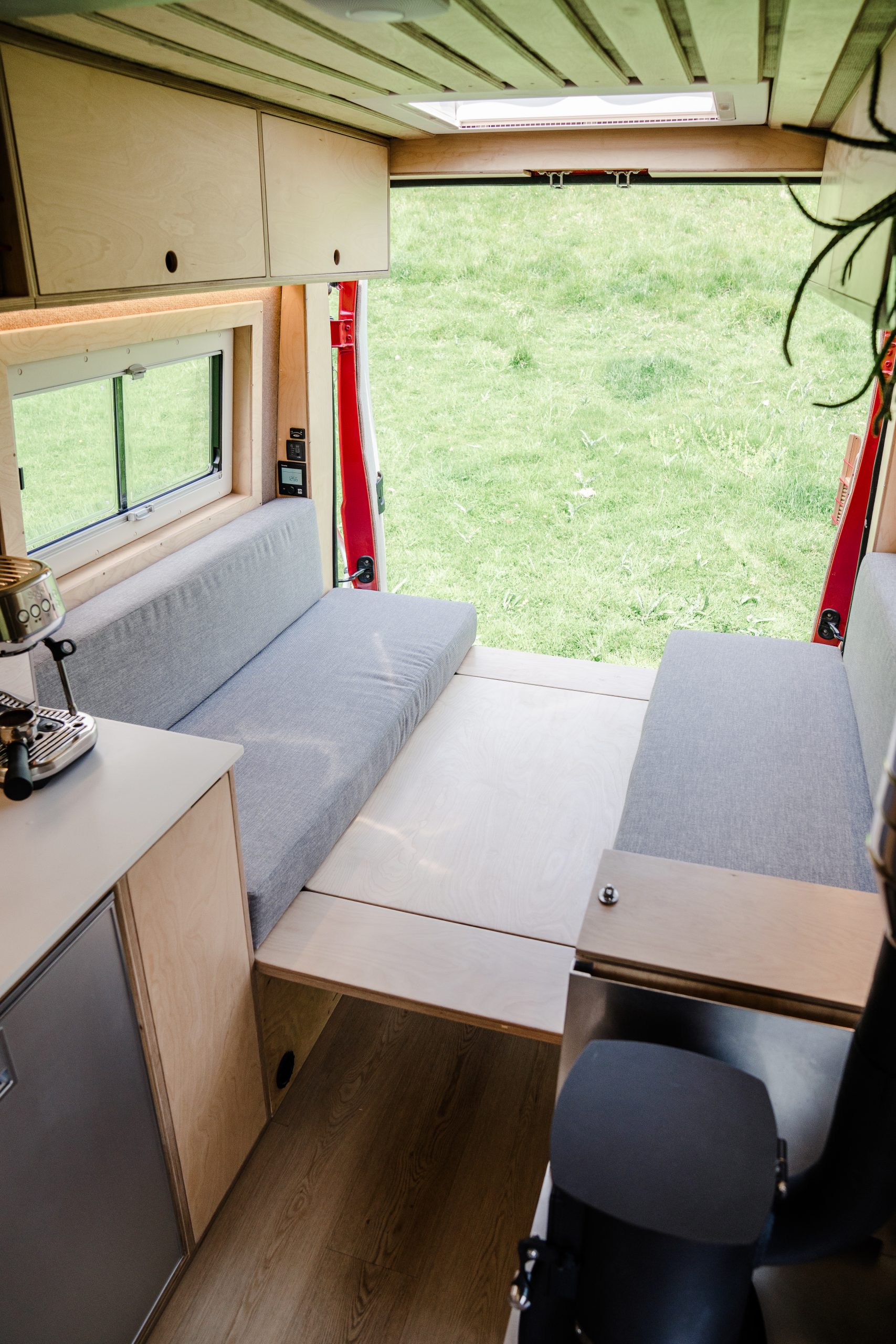

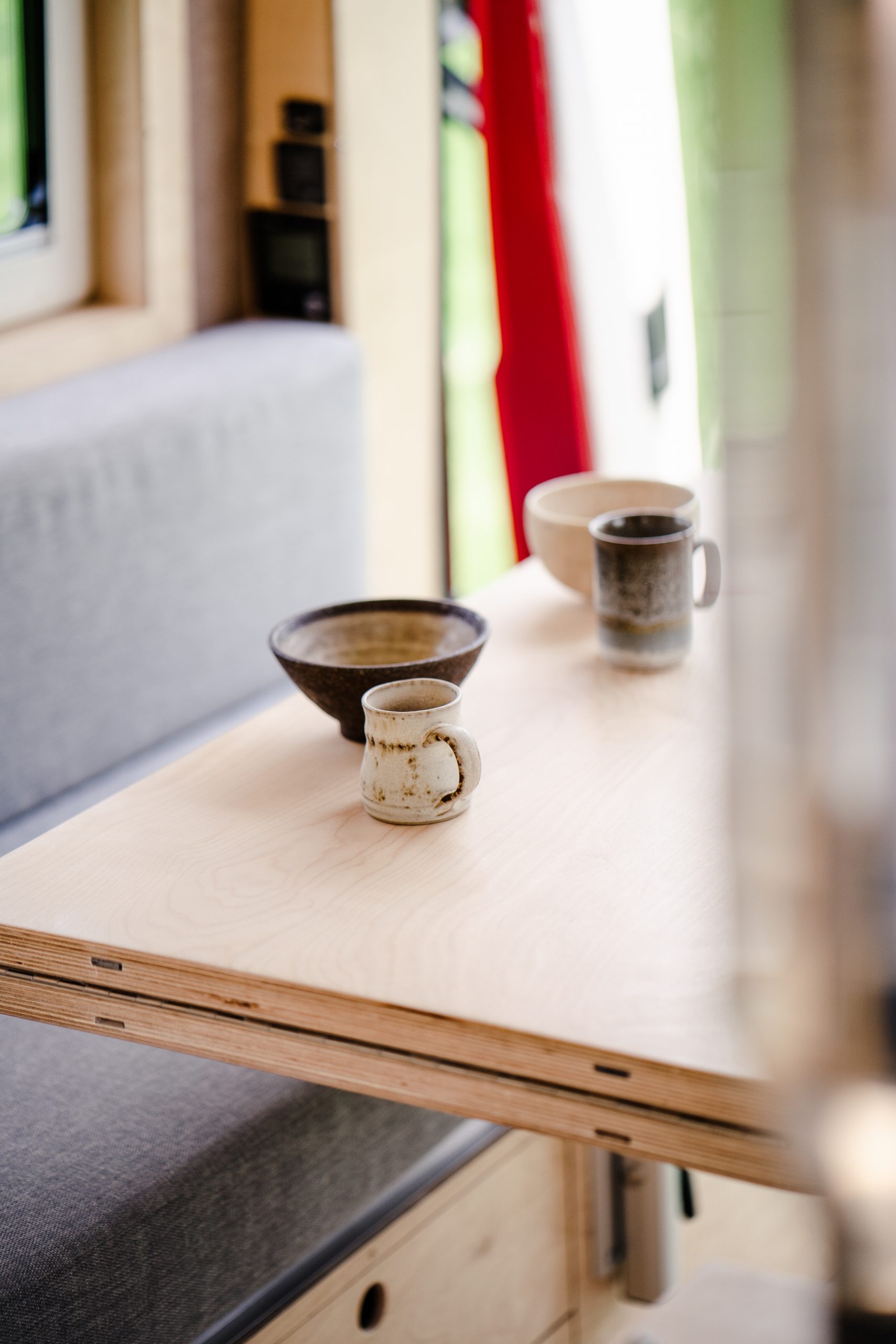

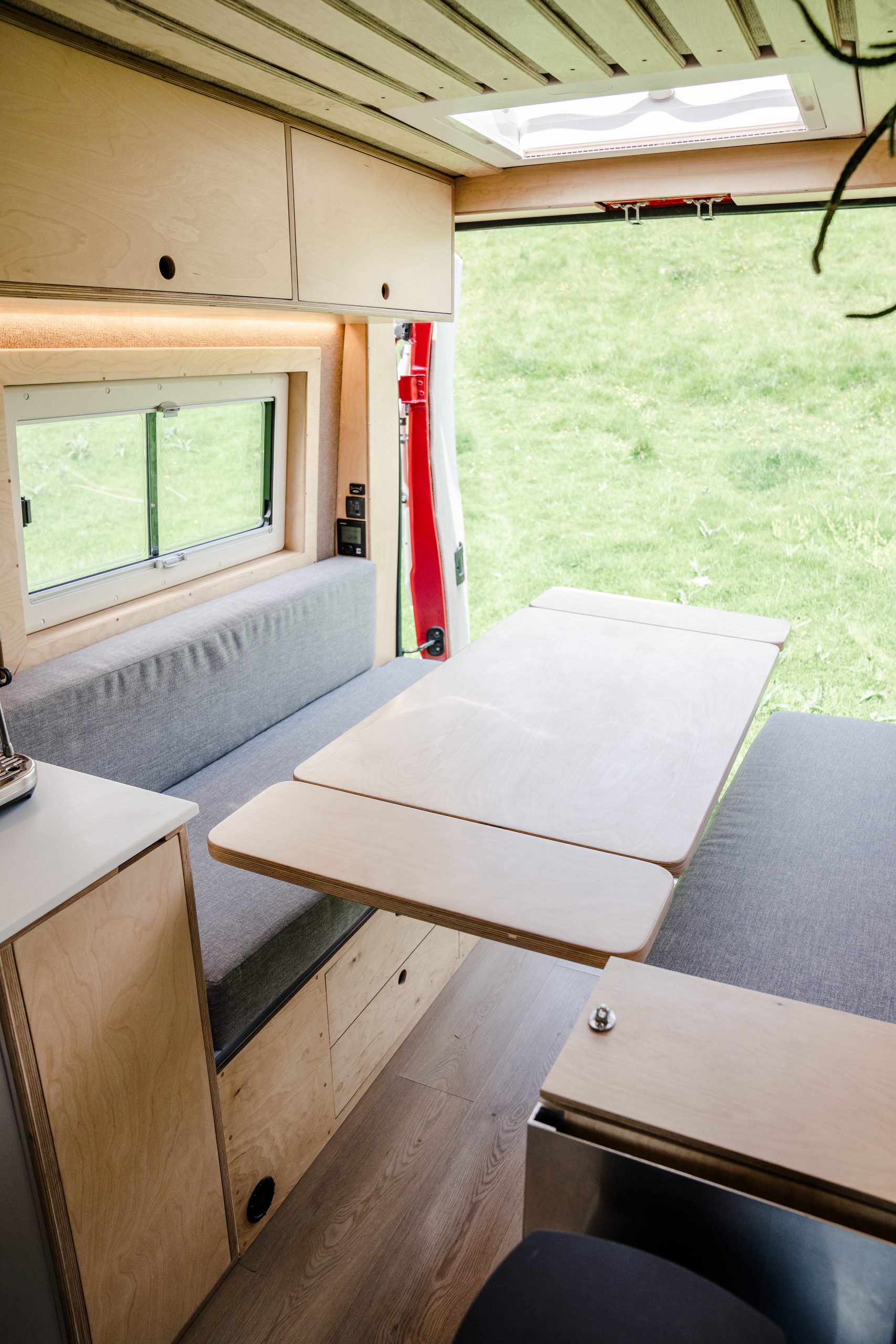

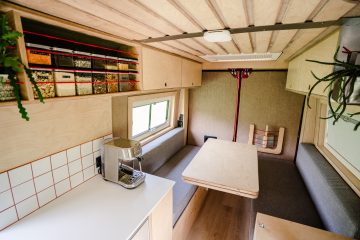

– Legun mounted table swivels into any position. Two drop leaves expand the table to seat six, and steel bars hold the leaves securely out. Magnets hold the steel bars securely in transit. This table top pops off easily and forms the kingsize bed base by slotting snugly into the two aluminium rebates in each bench seat. The bed can be made in full in under 3 minutes.

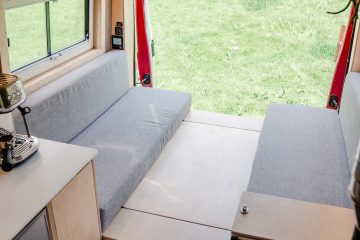

– Convenient bedding store next to the bench seats โ€“ no scrabbling around with annoying bench seat storage.

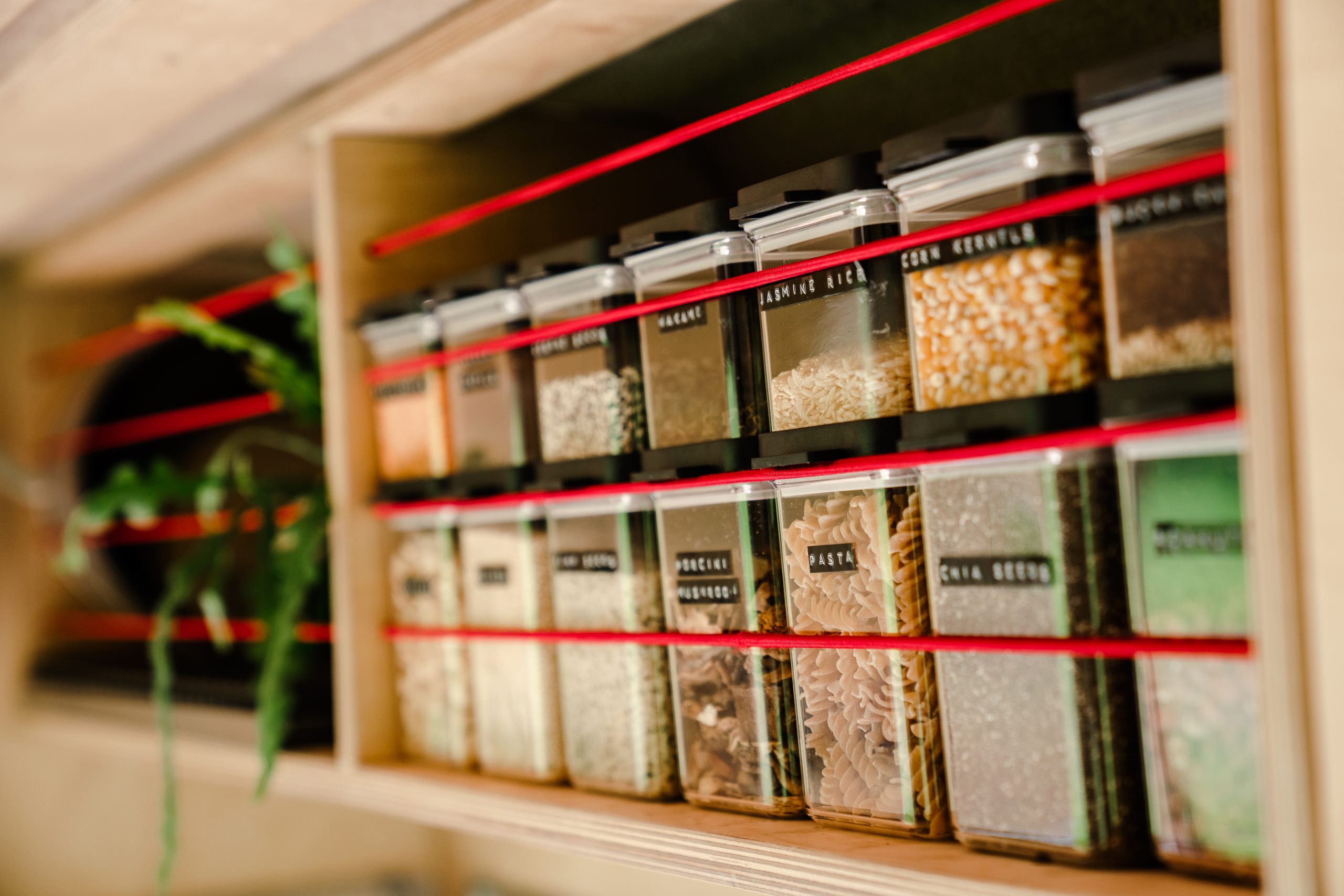

– Large dedicated pantry space โ€“ containers are held securely with bungee cord.
– Handmade routered plinths hold USB and 230v sockets, making them easily serviceable.
– Five large drawers, bench seat storage and a large bulkhead cupboard provide loads of storage space.

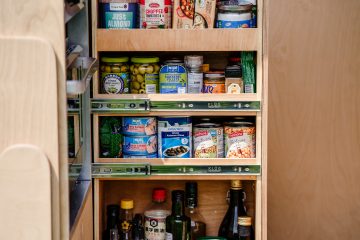

– A heavy-duty, double-width larder drawer holds as many bottles and cans as you can carry.
– Upper cabinets with 80N gas struts. All cupboard doors are fitted with quality magnet latches.
– Handy fold-away outdoor table built into the kitchen cabinetry.
– Beautiful quality, bespoke, handmade wrapped memory foam cushions in thick, grey, stain-resistant fabric with removable covers. Made by Jody Gray Upholstery.
– Shoe-drawer with in-built dividers and child lock.
– Feature V grooved birch statement ceiling, handmade and hand-finished with care.
– All birch plywood is sanded to a butter-soft finish and treated with OSMO Polyx Raw hardwax oil to seal and protect while maintaining the beautiful light colour of the timber.

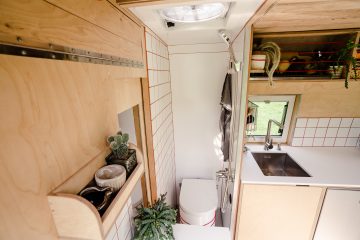

– Simploo composting toilet (ยฃ509) with 12v extractor fan which vents smells outdoors, urine separator and two containers. Infinitely easier to manage than a cassette toilet.
– Sliding door with full-length unbreakable mirror
– Thick cord carpet throughout in natural beige
– 6mm high quality luxury vinyl tile flooring with underlay, blonde oak effect
– Maximum possible celotex and rockwool insulation used throughout โ€“ up to 100mm used in walls, 40mm in ceiling and 25mm in floor. Dodo sound deadening and foil bubble vapour barrier for huge R value and moisture-protection.
– Thule Elite Van XT rear mounted dual bike carrier
– UK, LPG stickers and Critair required for EU travel.

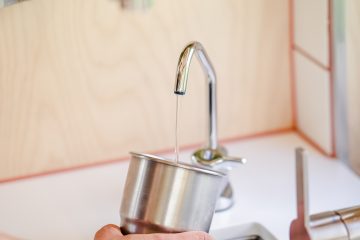

– Dedicated filtered water tap
– Captainโ€™s seat & ability to walk from the cab to the living space.
– Book/magazine door-mounted rack.
– Projector screen, screen hooks and projector swivel mount inside upper cabinet.
– Aluminium floor and window trim
– Mid-century knurled statement knobs
– IKEA stainless hooks
– Handmade birch plywood window frames
– Real ceramic white tile with terracotta red matching grout and silicone
Included in sale:
– Milenco extra long hardened-steel steering lock, two keys
– Milenco clutch pedal lock, two keys
– Spare wheel, jacking kit and tow eye
– Full European driving kit
– Spare bulbs
– Spare key
– Full service history, receipts, Gas Safe certificates
– ScorpionTrack Thatcham S5 tracker
– Eyesopen handmade, extremely high quality blackout window and Maxxfan covers โ€“ insulated in black leatherette finish, magnetic.
– Fire extinguisher and fire blanket
– Reversing camera, dash-mounted screen and reversing radar
– In-car entertainment system with Bluetooth and screen. Air conditioning. Phone charging.
– Handmade wood and steel dustpan and brush
– Projector screen
– Shower curtain and magnetic carabiners

Beds Description

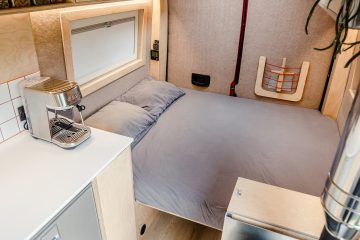

Ultra-comfortable kingsize bed in 13cm medium-firm, high quality orthopaedic wrapped memory foam.
Width-ways sleeping position. Bed dimensions 1500x1850mm (6 foot length king)

Main Bed Length
185cm

Contact the Seller

Please note: Quirky Campers do not inspect the listings for accuracy or check campervans in person. We have asked sellers to provide evidence of certificates and paperwork however you MUST check yourself that the information provided is present and correct. You will need to exercise the normal due diligence when buying any vehicle.

Contact Details

Vehicle Spec
Fuel Type:
Diesel
Transmission:
Manual
Belted Seats:
2 Belts
Driving Side:
Right-Hand Drive
Vehicle Length:
5.99 meters
Vehicle Height:
3.00 meters
Vehicle Width:
2.50 meters
Emissions Compliance:
LEZ Compliant
Registered Vehicle Type:
Panel Van (does not meet DVLA standards)

Conversion Spec
Conversion Condition:
Excellent
Converter Type:
Professional - Handcrafted
Gas Sign-off:
Gas Safe Certificate
Max Weight (MAM/GVW/MTPLM):
3,500kg
Unladen Weight:
2,600kg
Unladen Weight Verified:
Yes - the vehicle has been weighed since completion

Electrics
12v Electrics
USB Sockets
Leisure Battery
Split Charge Relay
Solar Panel(s)
Inverter
240v Electrics
240v Sign off
