MERCEDES 613D CAMPERVAN - RARE

|
765 | 5

£26,000
Campervan

Mercedes 613D KA LWB

Used
150,741 miles
2 Berths

Essential Information
Hob
Oven
Fridge
Kitchen Sink
Dining Table
Heater
Ceiling Fan/Vent
Toilet - Composting
Pet Bed/Pet Friendly
Awning
Roof Box
Extra Storage

Detailed Information
Vehicle Description

It is with a heavy heart we are selling our beloved Van Sandy. We have owned her for five years and she has been a truly amazing companion and a home.
We converted her from scratch with the help of a professional carpenter who specialises in van conversions. We really would like her to go to somebody who will enjoy her as much as we have.
If you are looking for a vehicle to last you a lifetime, Sandy is the one!

– Mercedes 613D KA like Vario 814d 508d 508 Dudo campervan motorhome LWB

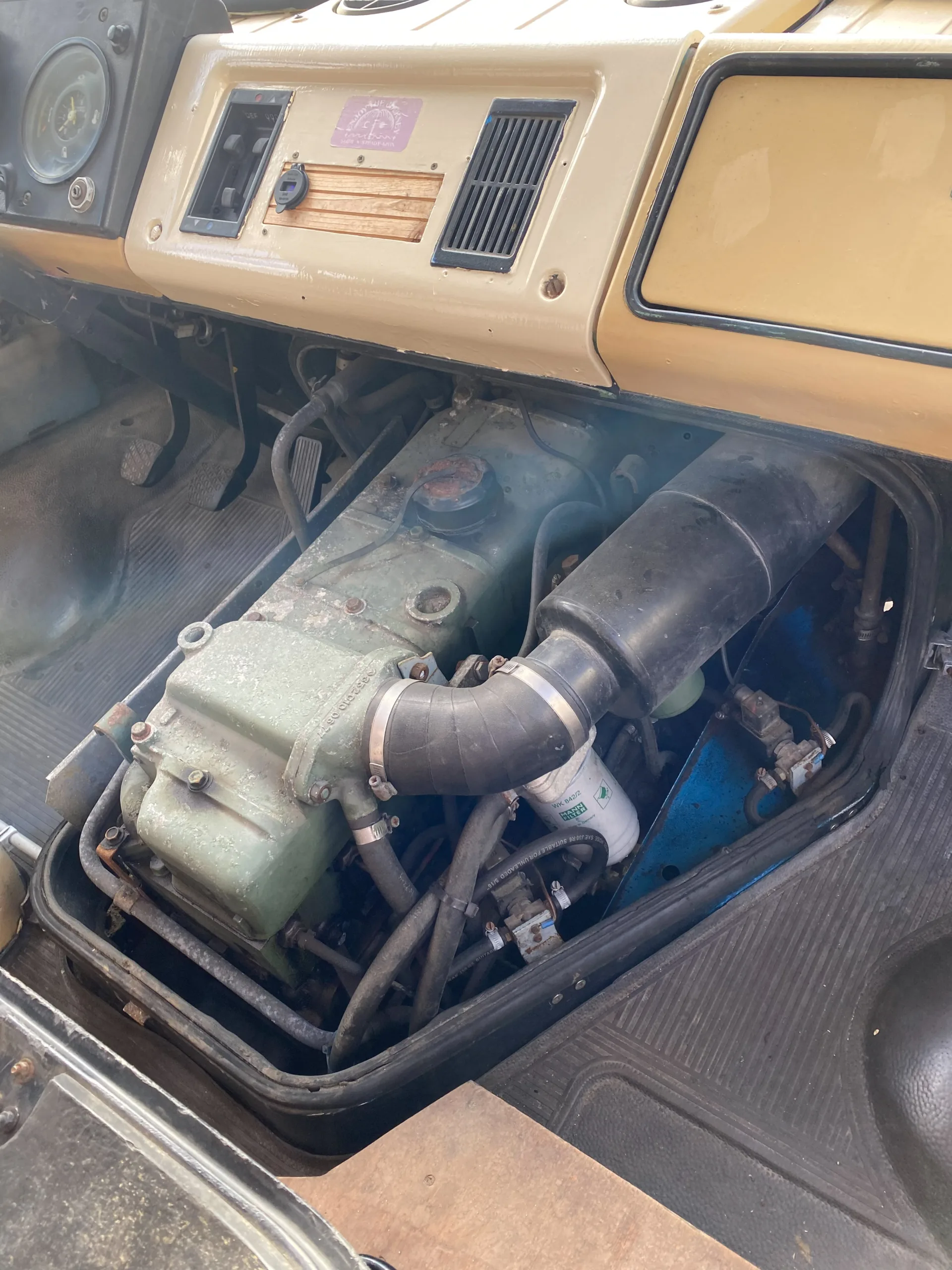

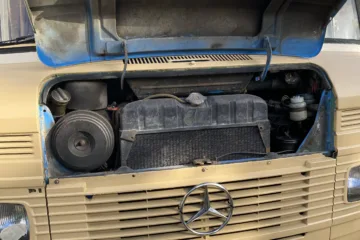

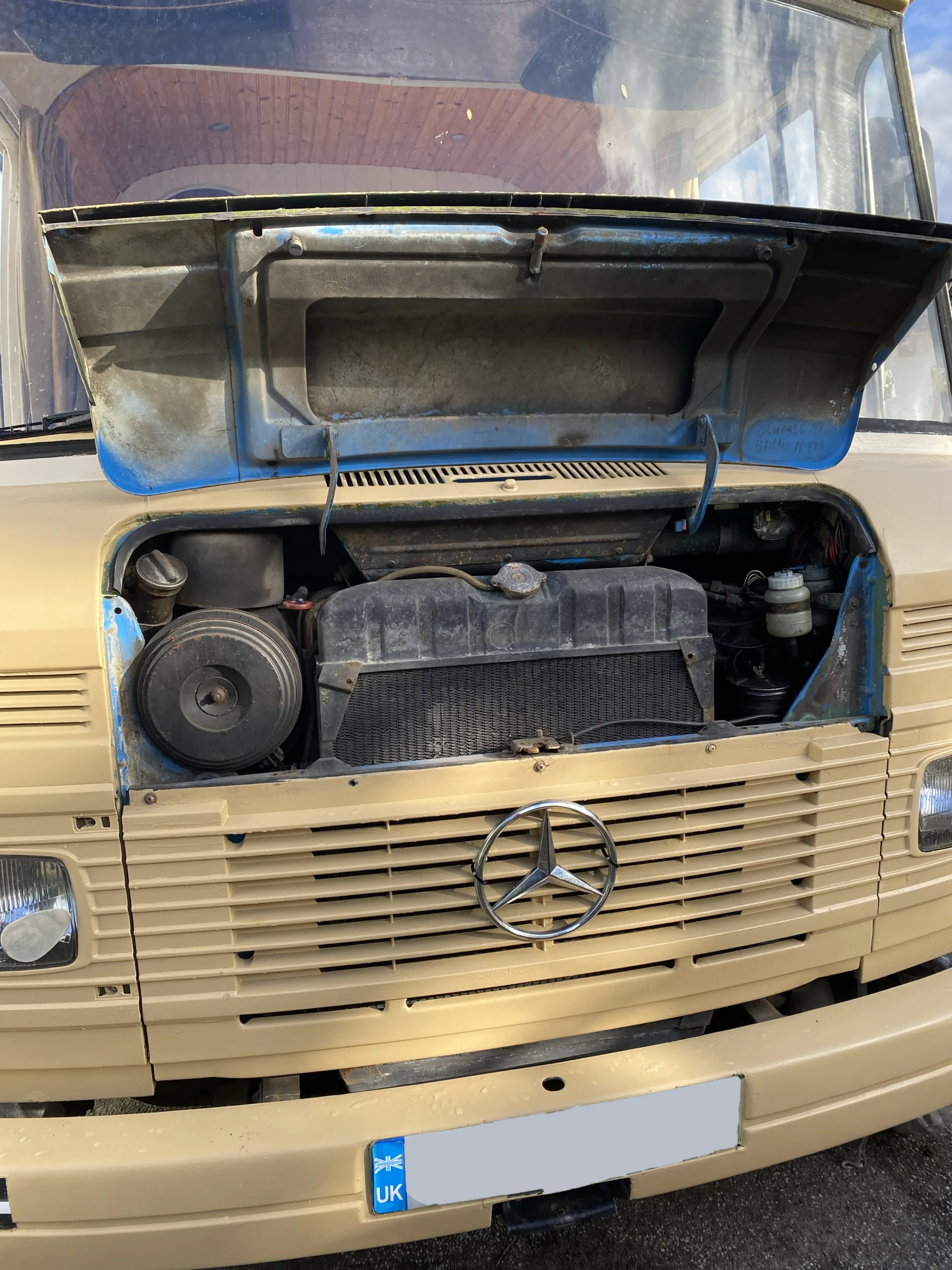

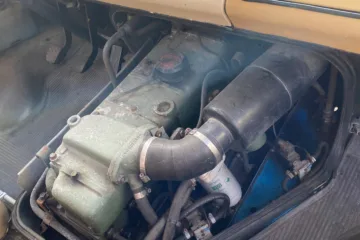

– OM314 Engine – 6 cylinders 5638 cc (5.64 litres), Diesel, Manual transmission, 5 gears with a towing gear
– Weight (unladen) – 4680 kg, max capacity (GVM) around 6800kgs
– Left hand drive
– MOT – 23/05/2025 | Milage – 241977 km’s / 150357 miles

– Sandy was first registered December 1984. After 40 years it will be classed as an historic vehicle, this means it becomes tax and MOT exempt from April 2026, this has been confirmed by the DVLA). I can forward you all of the information I have received from the DVLA to complete the process if needs be.
– Registered in 2013 in the UK as a motorhome

– Originally manufactured in Germany for use as a police truck, well maintained with lots of service history included.
– Since purchasing Sandy in August 2019, we have looked after her very well, keeping up to date with any mechanical work that needs doing of which there has been a minimal amount. She has been driven regularly and has been on a few longer European trips.
– The previous owner also had extensive history documentation which was passed on to us and is included in the sale.

If you know these vehicles already, they say the military grade Unimog engines are built to do 1 million miles and pretty much go on forever if well maintained and looked after.

– Requires a C1 category on your licence if you were born before 1979 (45 years old). The weeks intensive course to obtain the C1 is very straightforward and quick.
– Tax class private HGV – £165 p/year
– Air/hydraulic brake system
– Runs on a 24 volt system
– The torque is incredible, when cruising on the motorway we usually stick to 55mph max

– Dimensions (Approx) – 7 m long x 3m Tall (with roof rack) x 2.2m wide
– The underneath is in very good condition for its age, the solid chassis and underneath has been wax oiled in the past and sprayed with lanoguard to protect against the elements.

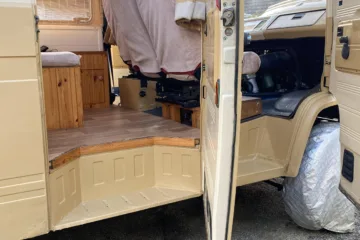

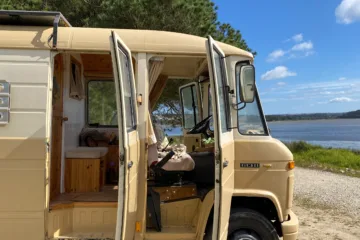

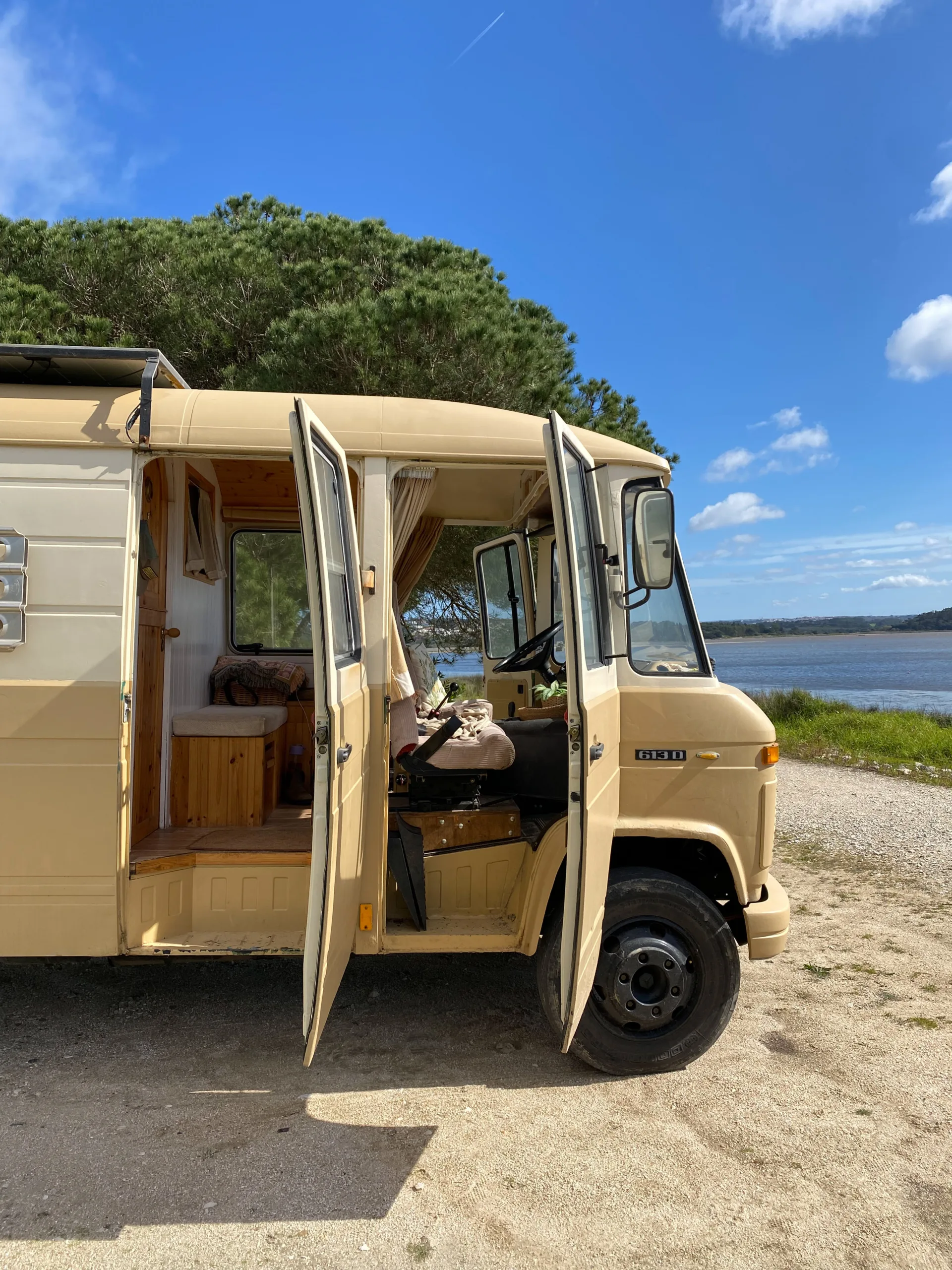

– One of our favourite features is the hinge side door rather than a sliding one.

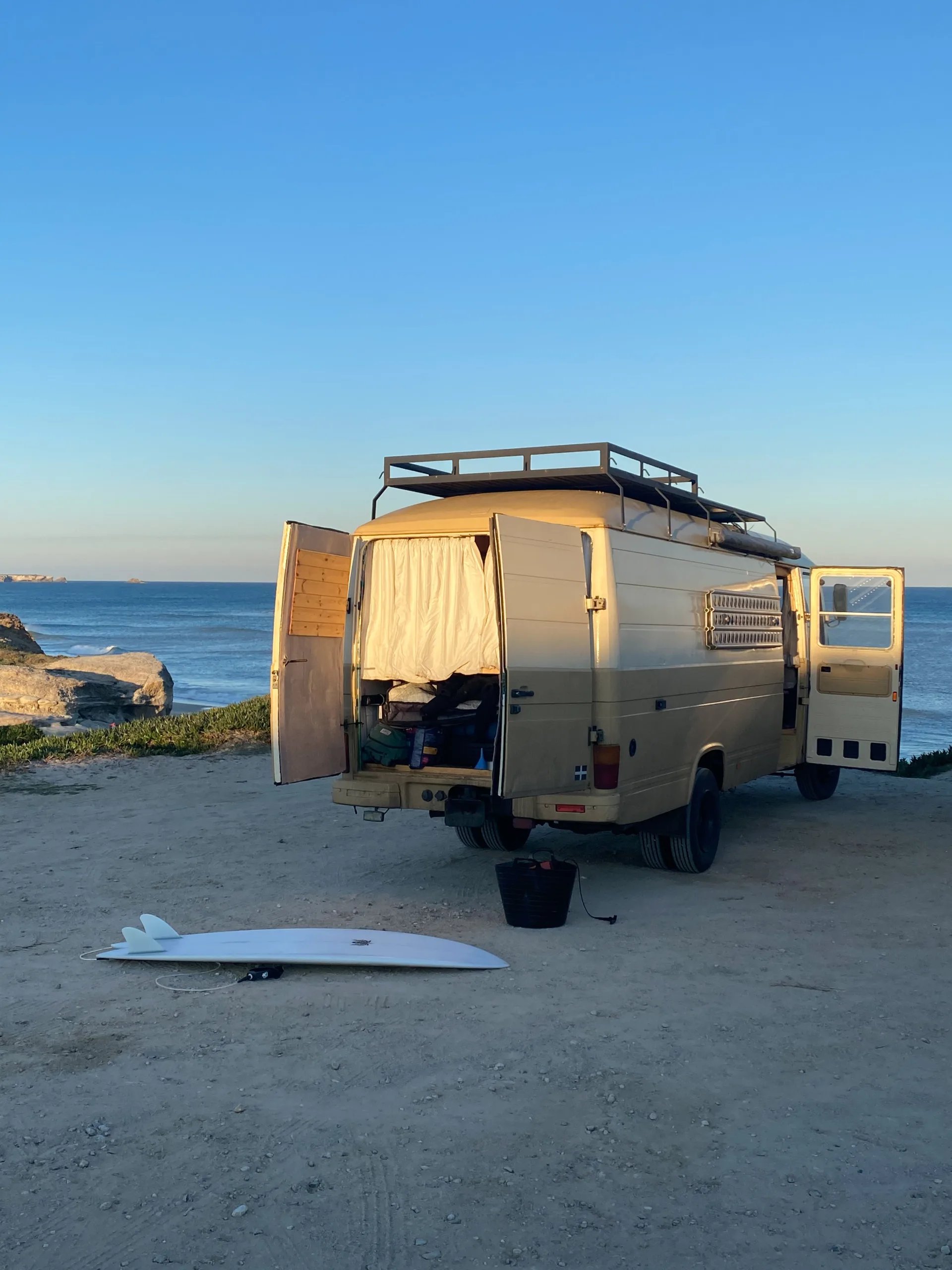

– Rear doors open 270 degrees and catch lock to the side of the van if necessary
– All doors have grease nipples
– Twin axel – 6 tyres in good condition with plenty of life left, and spare in good condition
– High clearance, great for off-roading

– 3 Sets of door keys
– Multiple drivers keys, water tank key,

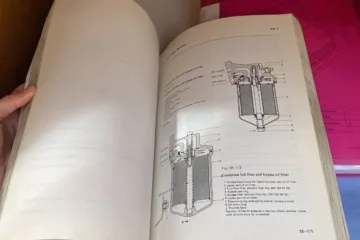

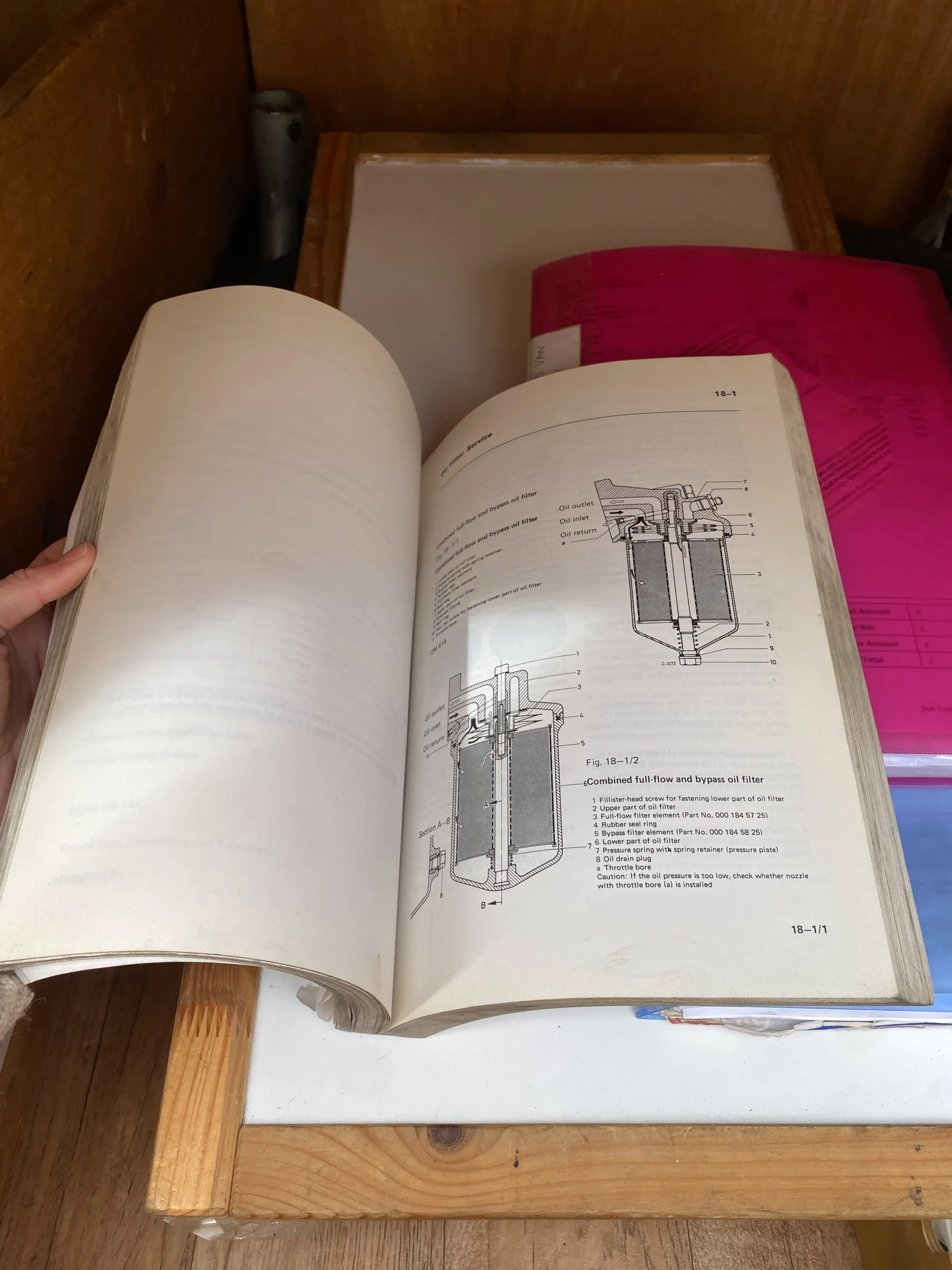

– Manuals
– 3x working seatbelts

Servicing and mechanical work
– Yearly changing of engine oil, fuel, oil and air filters has been undertaken.
– Bi annual (at least) greasing of the kingpins and prop shaft, more frequent if undertaking a longer journey.
– Differential oil changed once, gearbox atf changed twice. 2023

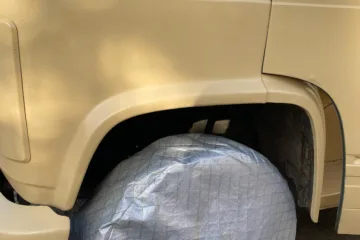

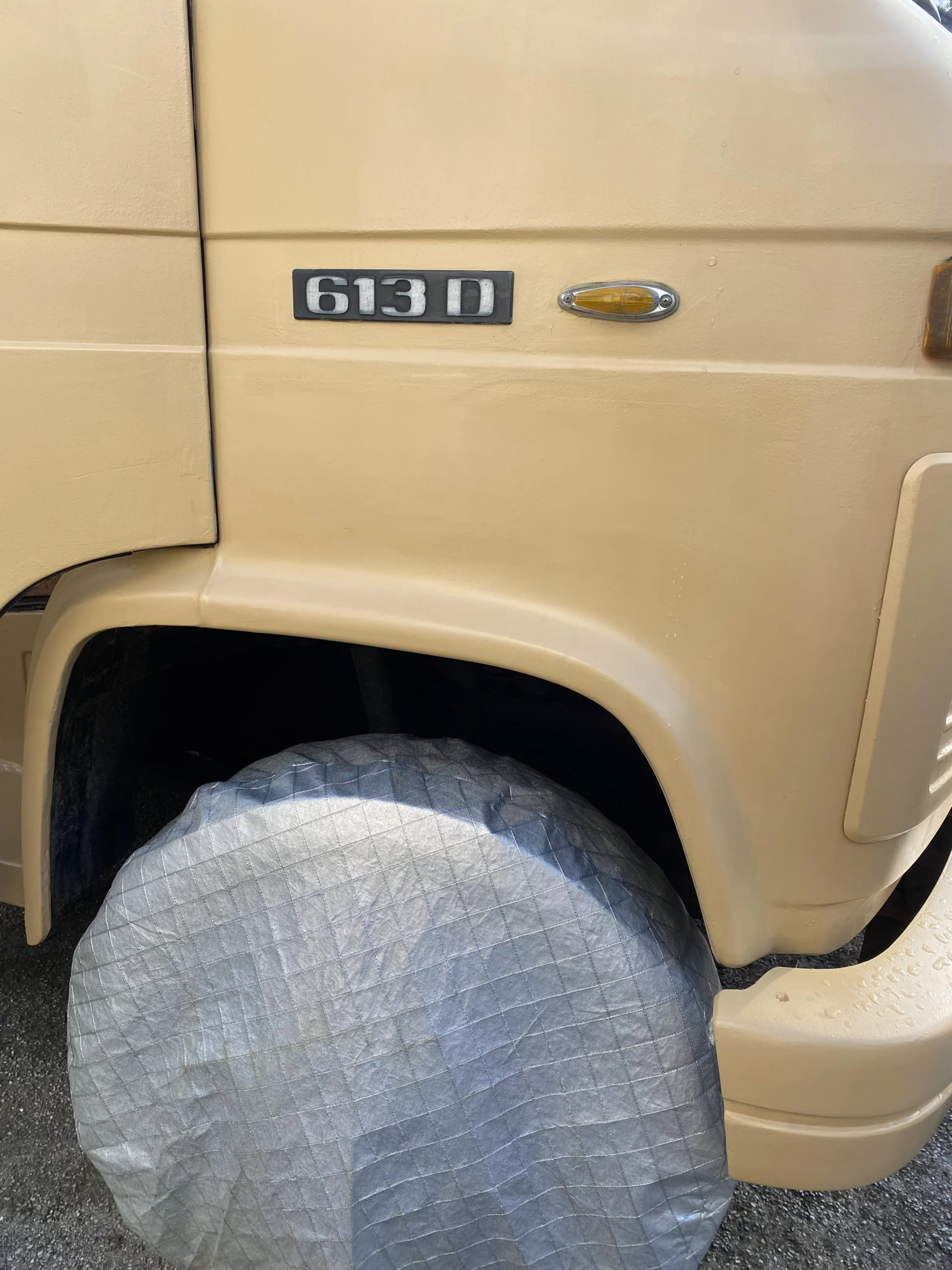

– Front wheel arches (wings) replaced recently 2025
– Replaced Slave and master cylinder 2022
– Replaced front and rear brake cylinders (kept spare for reboring) 2023/2024
– New lift pump 2024
– A few fuel pipes replaced
– Power steering return pipe replaced 2021
– brakes hoses replaced 2022
– brake fluid cap replaced 2024
– New exhaust silencer fitted 2024
– thermostat replaced (not needed so kept original) 2023

Conversion Description

It is with a heavy heart we are selling our beloved Van Sandy. We have owned her for five years and she has been a truly amazing companion and a home.
We converted her from scratch with the help of a professional carpenter who specialises in van conversions. We really would like her to go to somebody who will enjoy her as much as we have.
If you are looking for a vehicle to last you a lifetime, Sandy is the one!


100% adventure ready! She is ready to live in or holiday immediately.

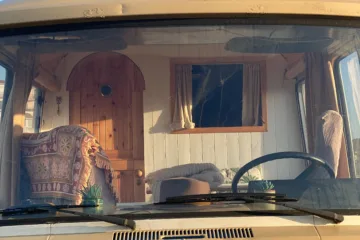

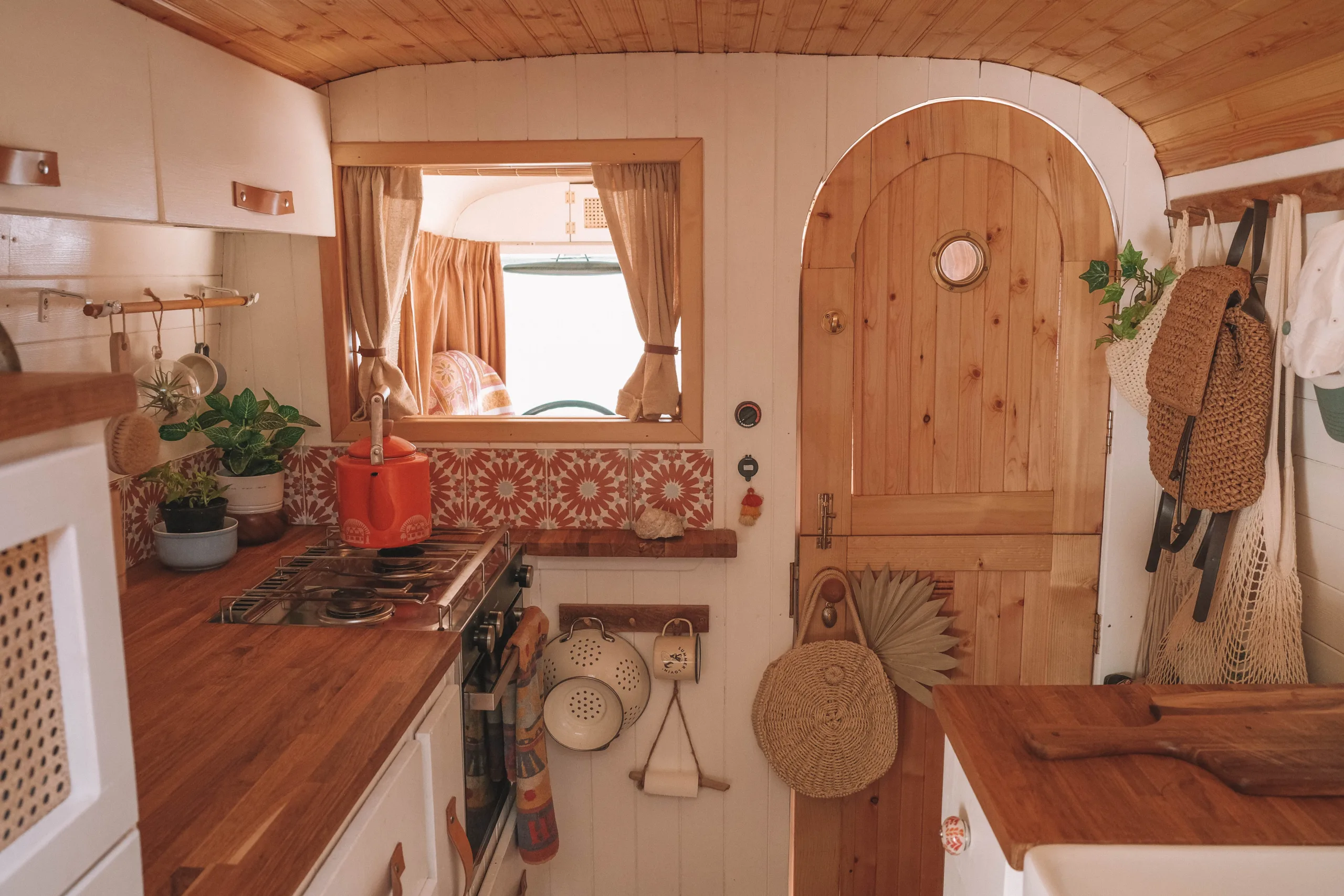

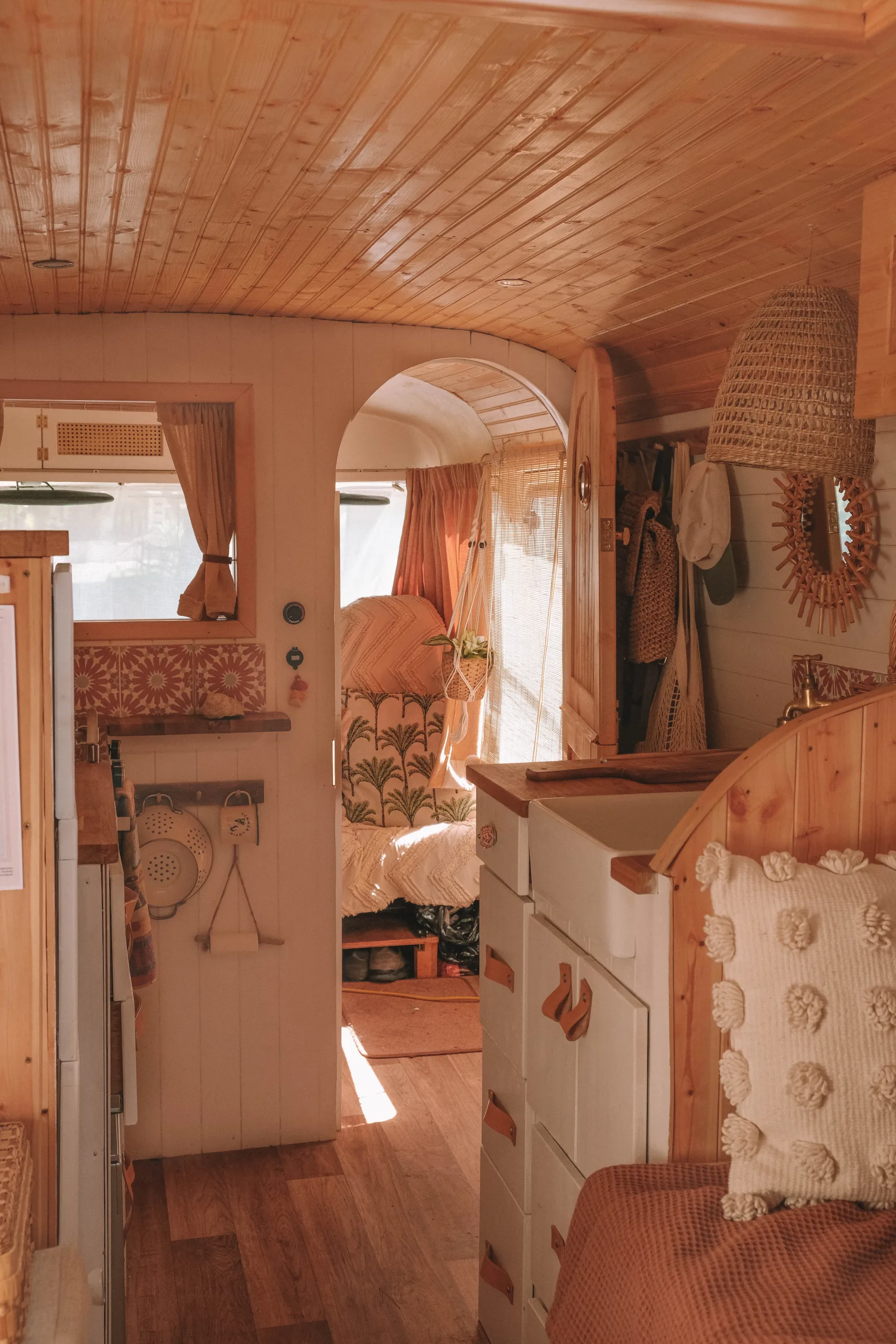

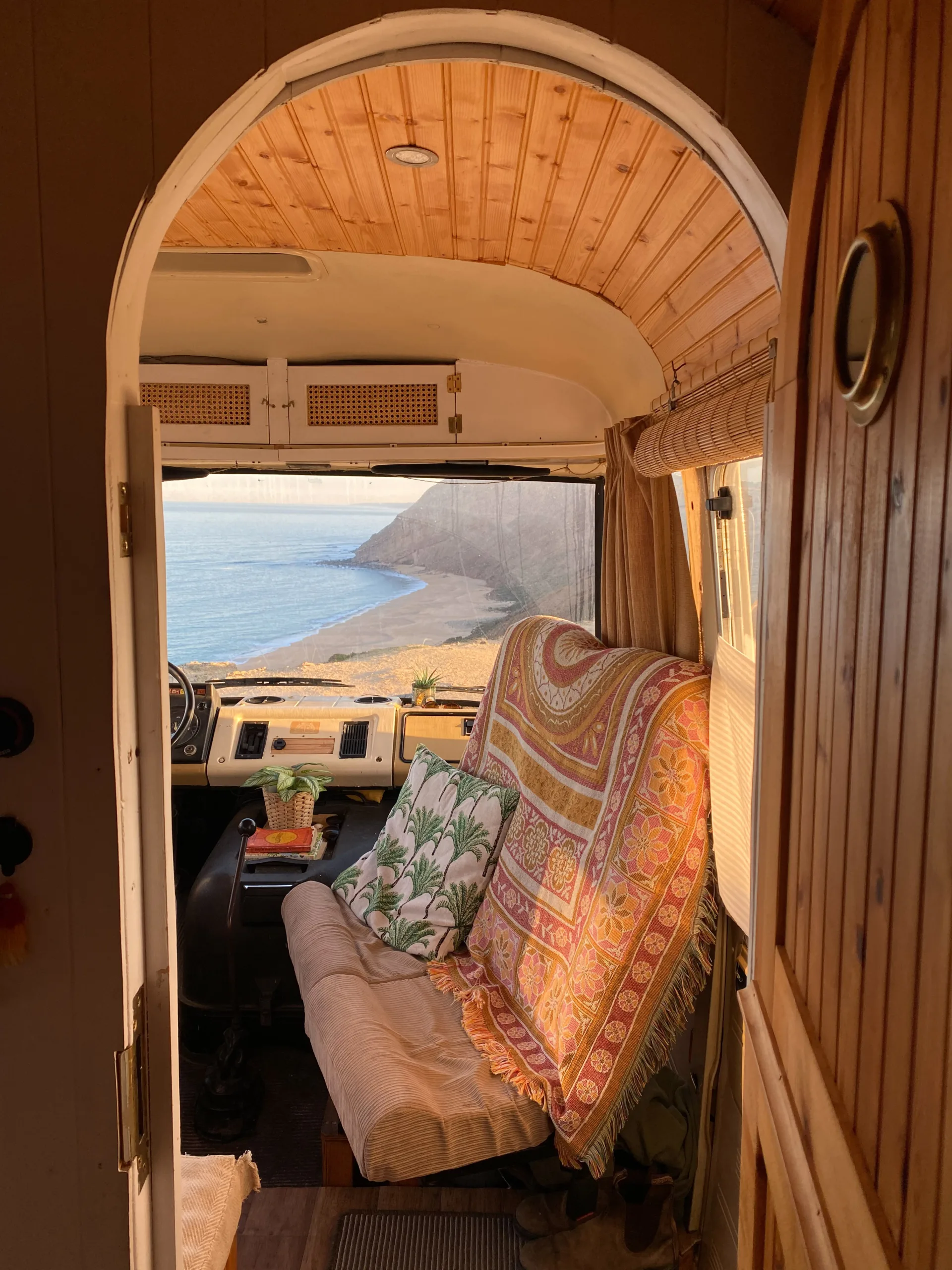

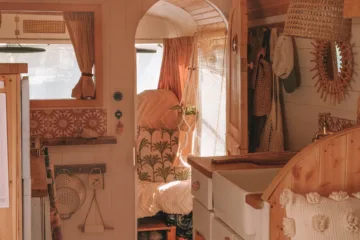

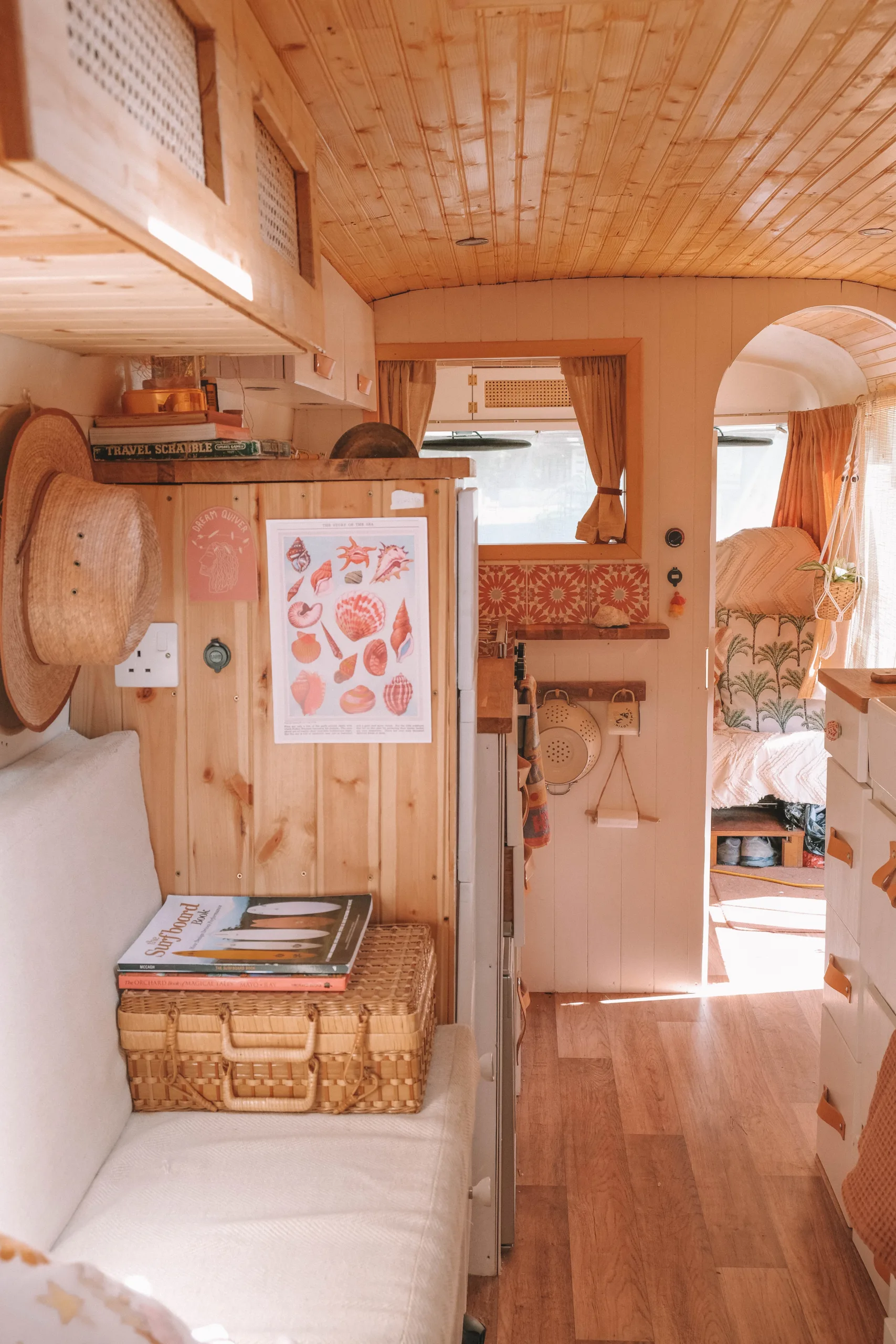

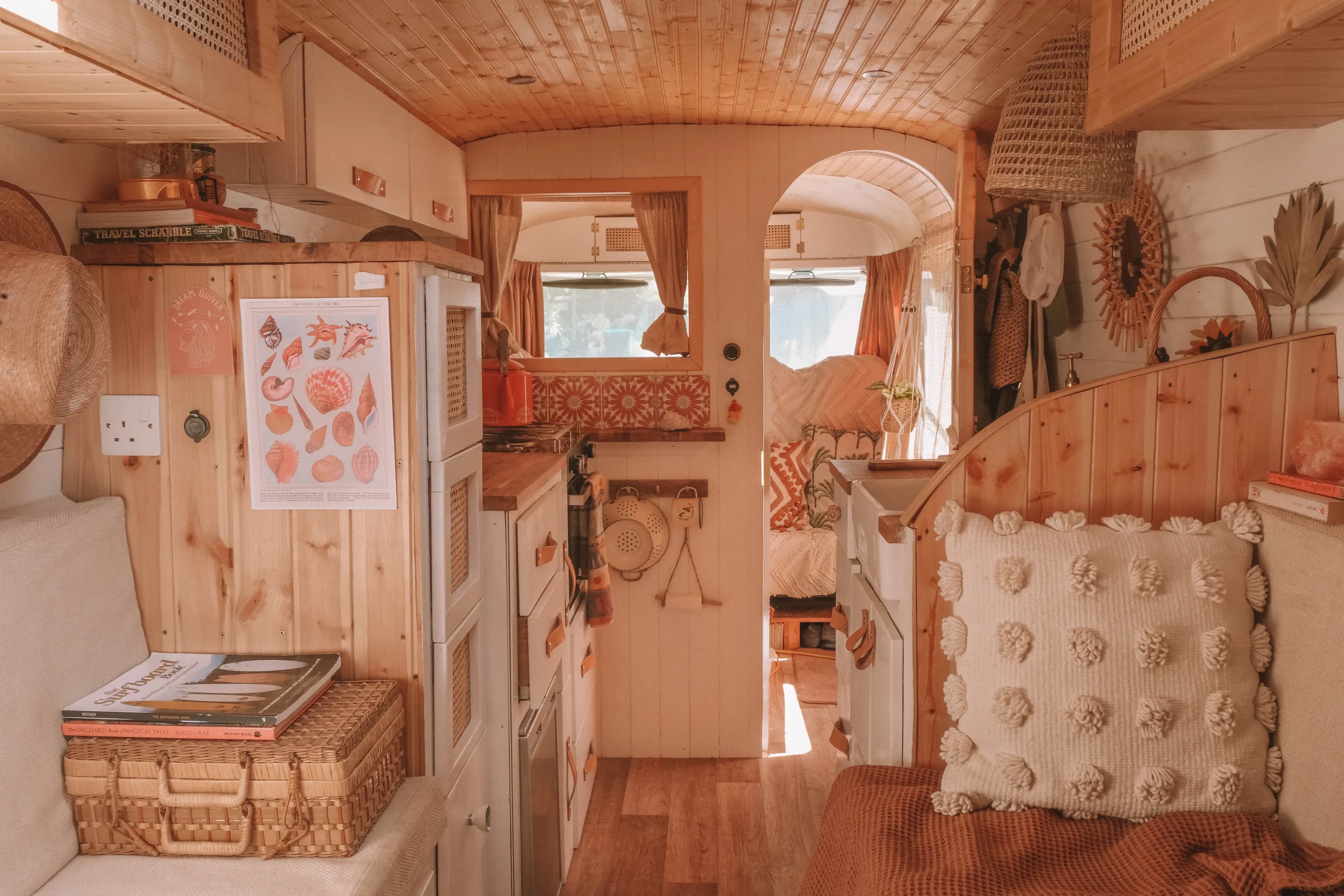

– Inside is split into two sections via an archway stable door.

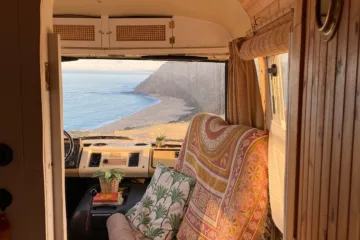

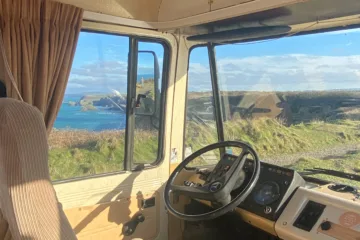

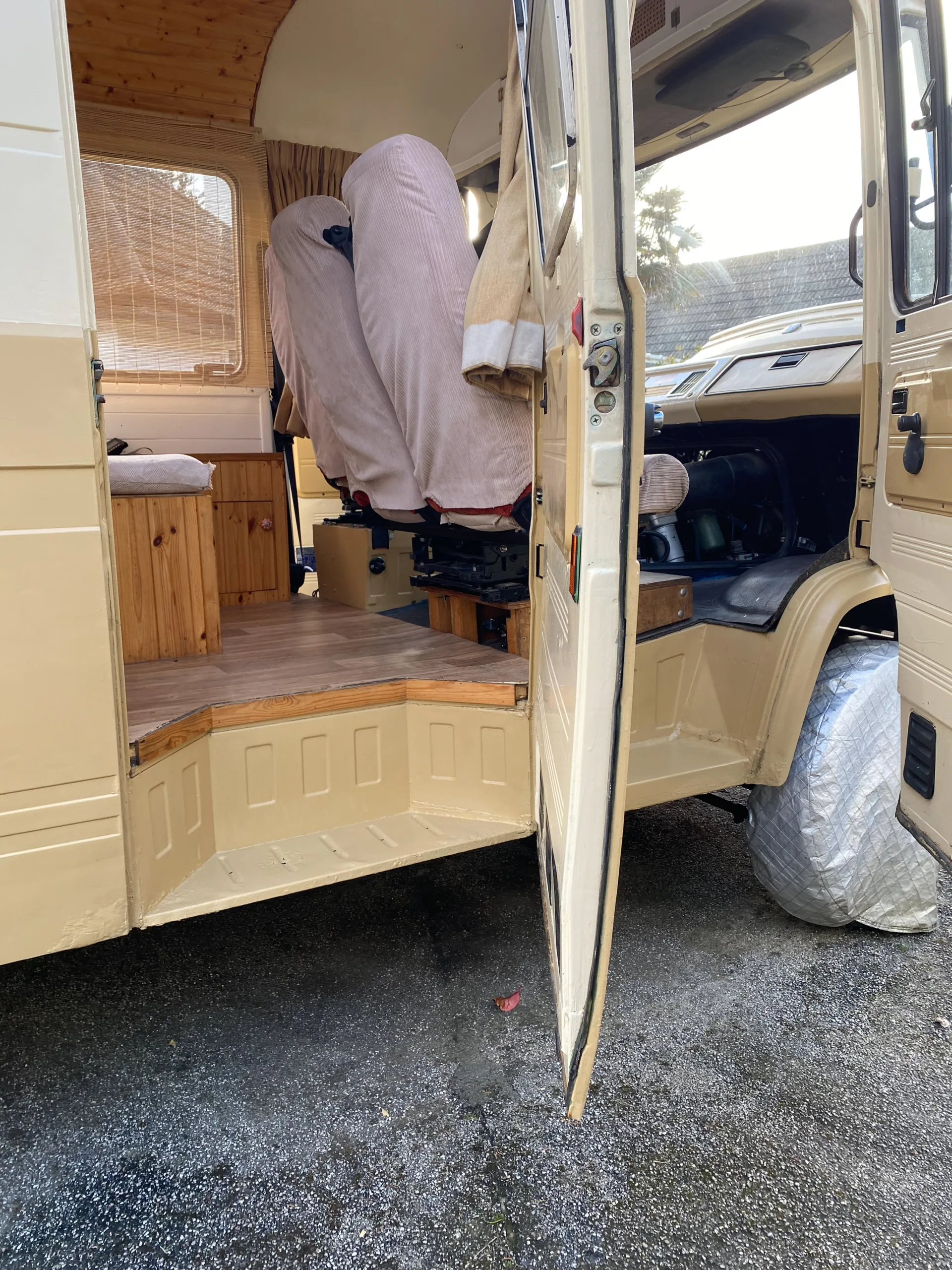

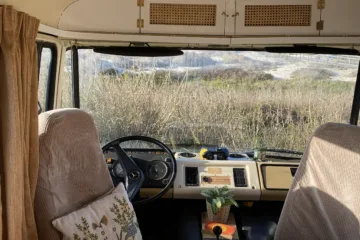

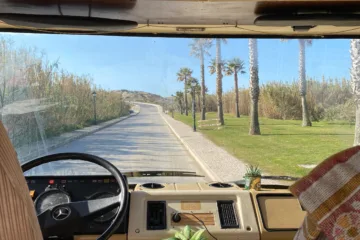

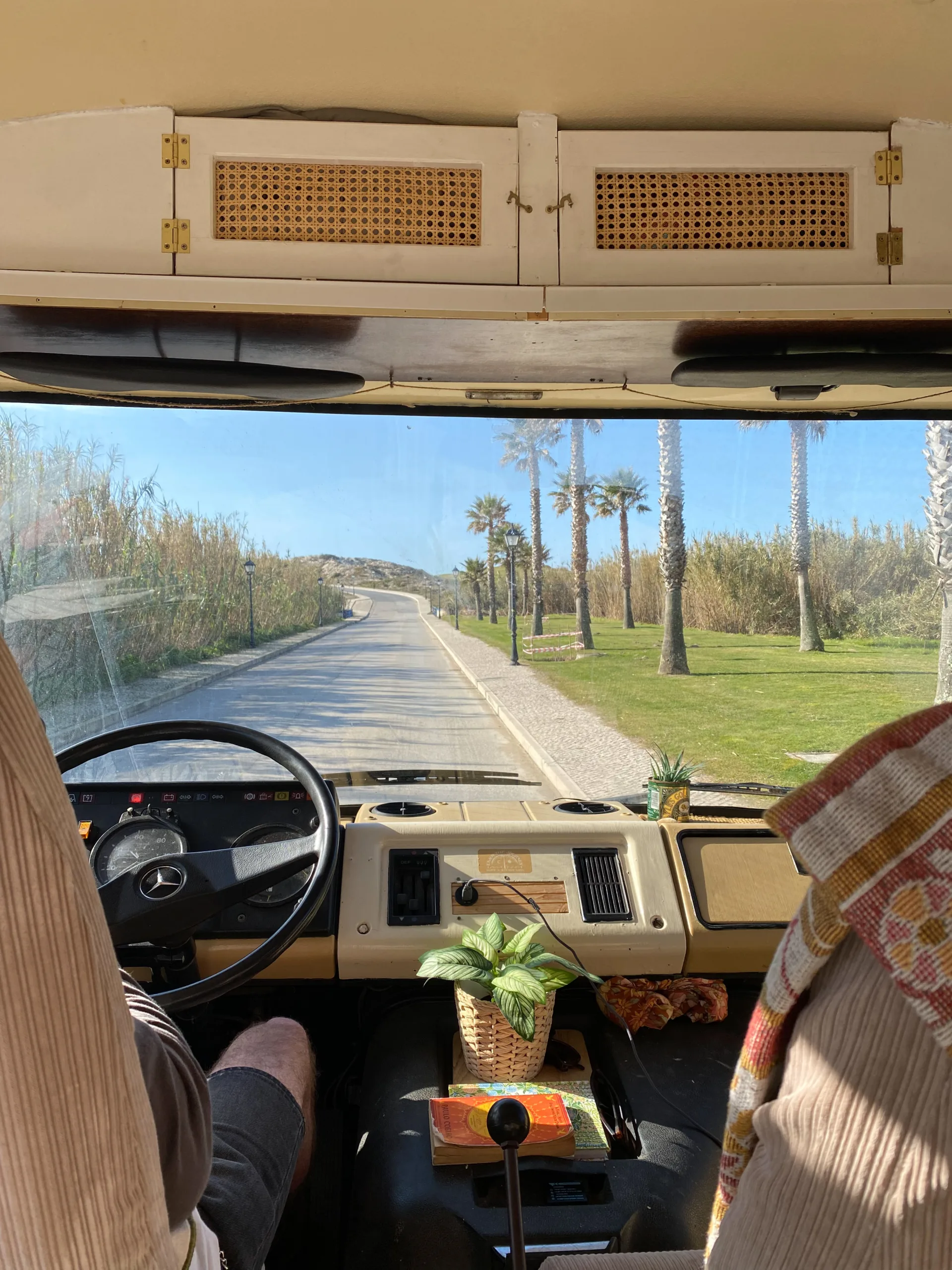

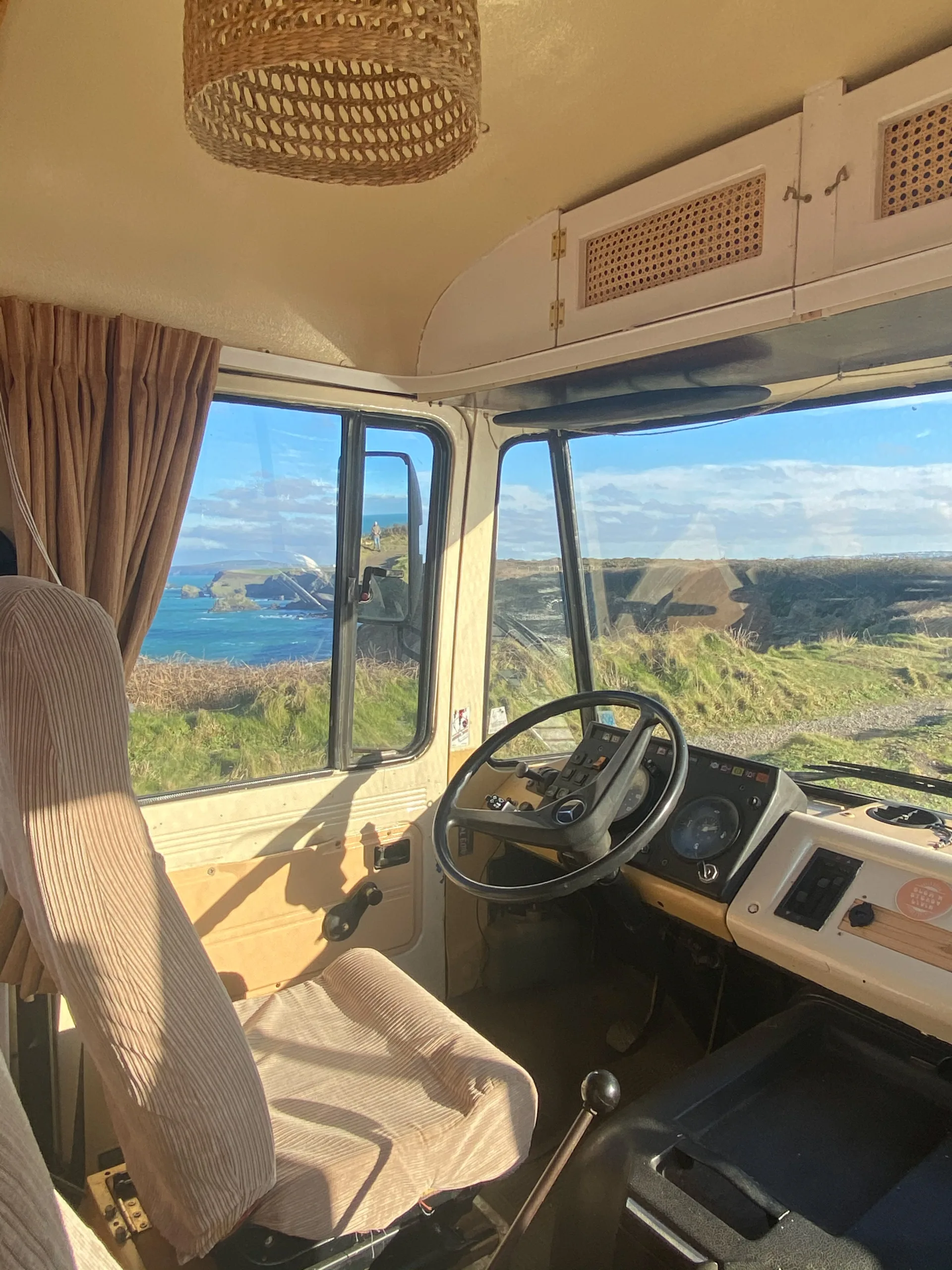

– The cab which comprises of two captains swivel seats, one drivers and one double passenger seat with a bench seat behind.

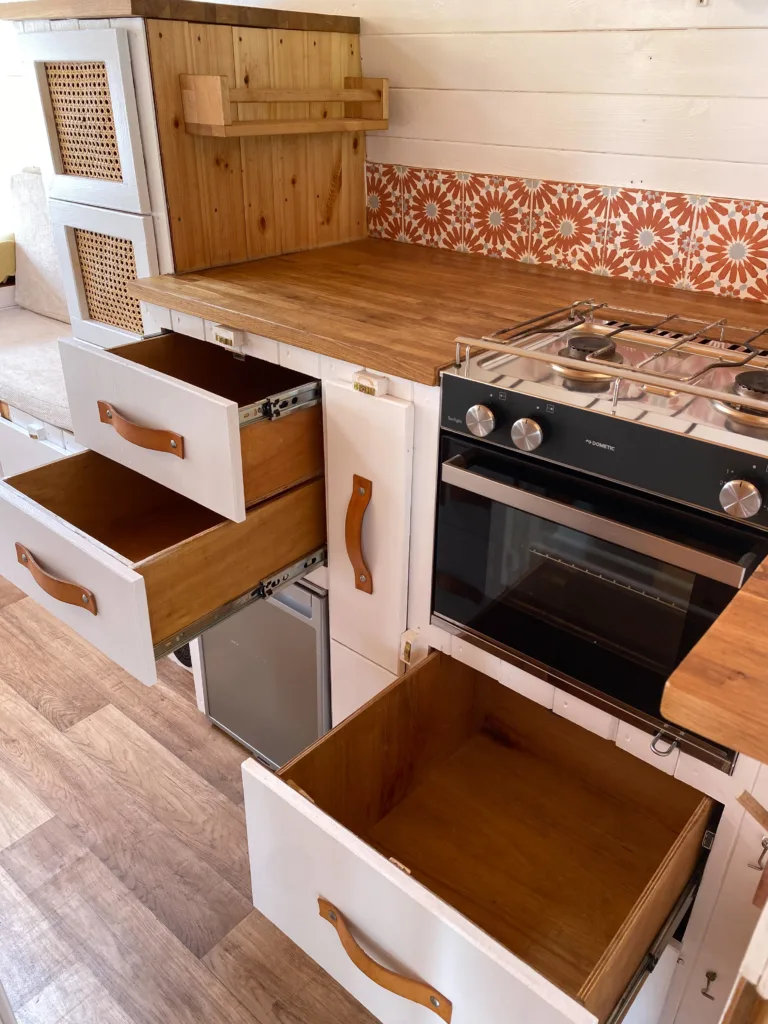

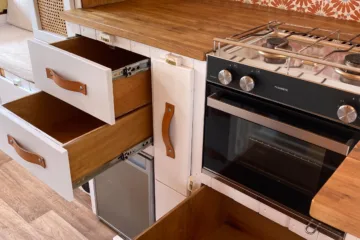

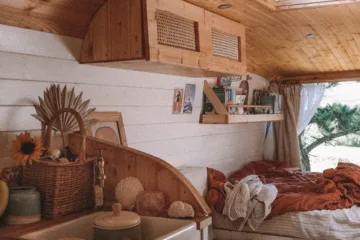

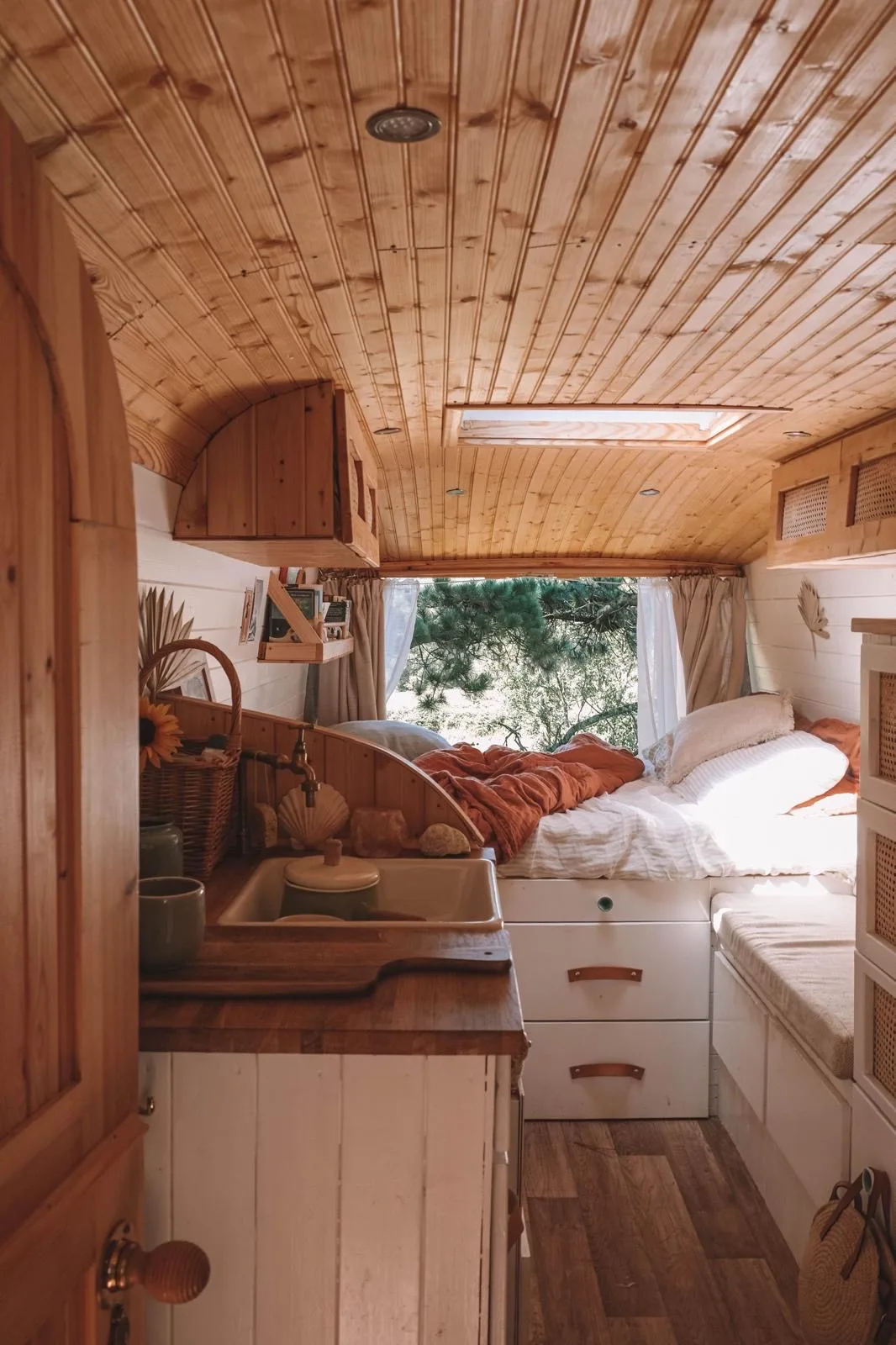

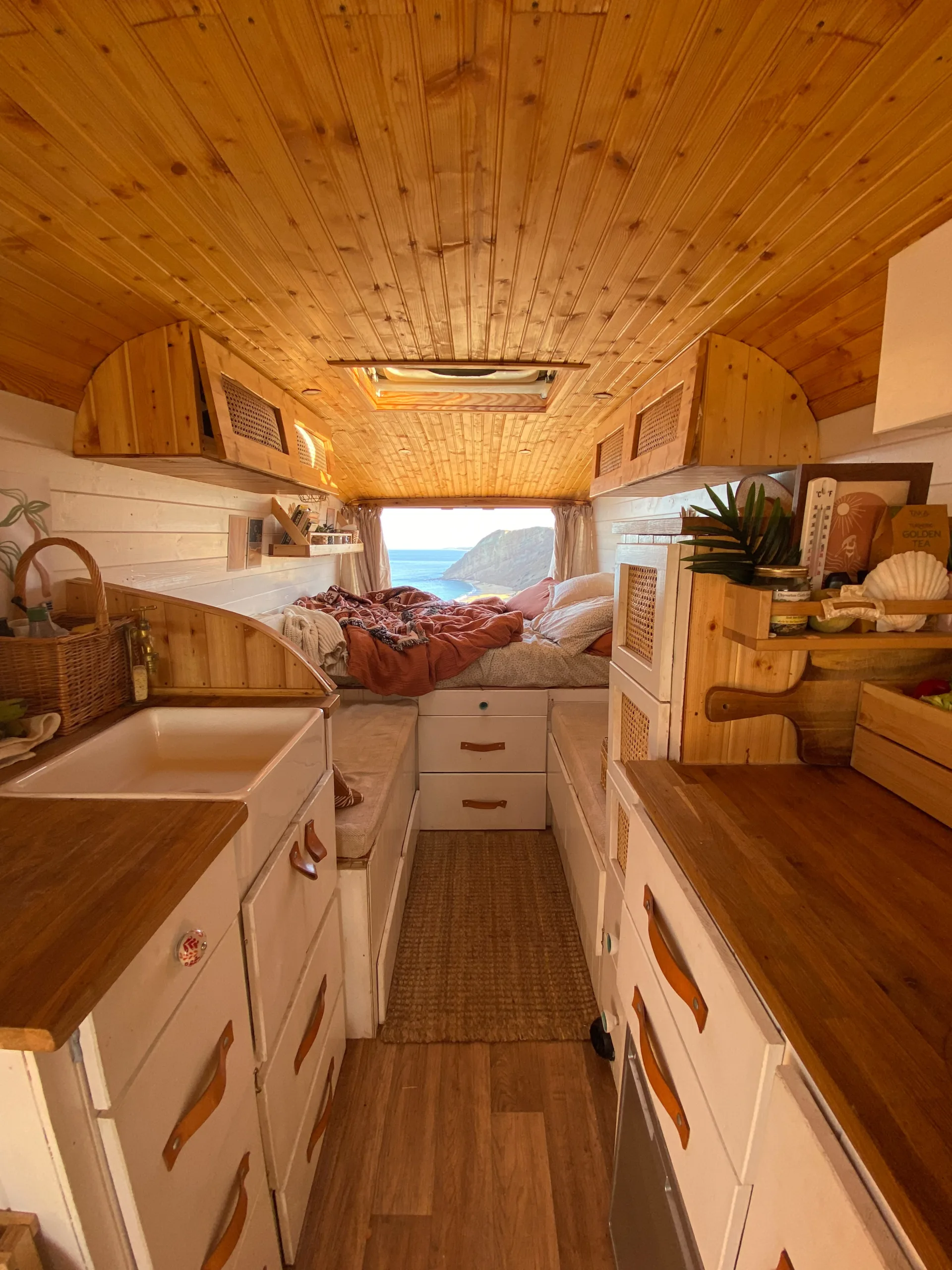

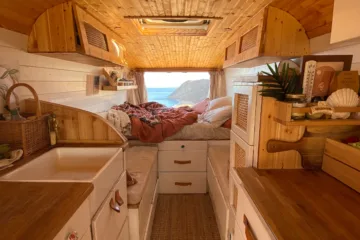

– The rear living area comprises of a good sized kitchen with plenty of worktop space, sink, a 2 ring hob and oven, fridge and lots of storage.

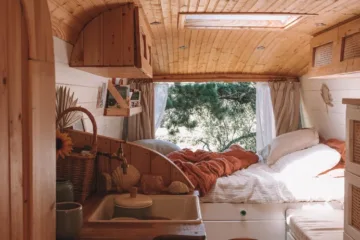

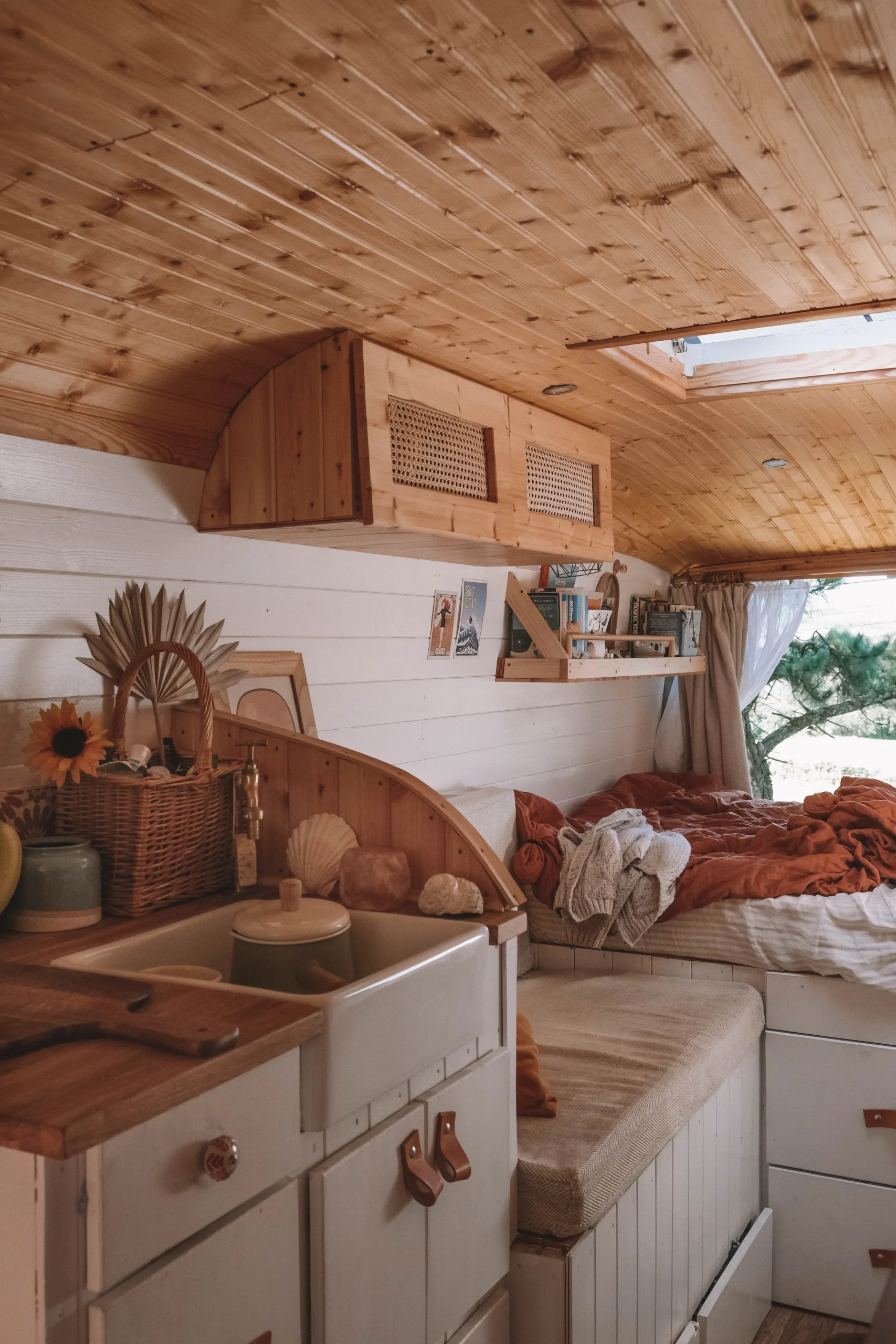

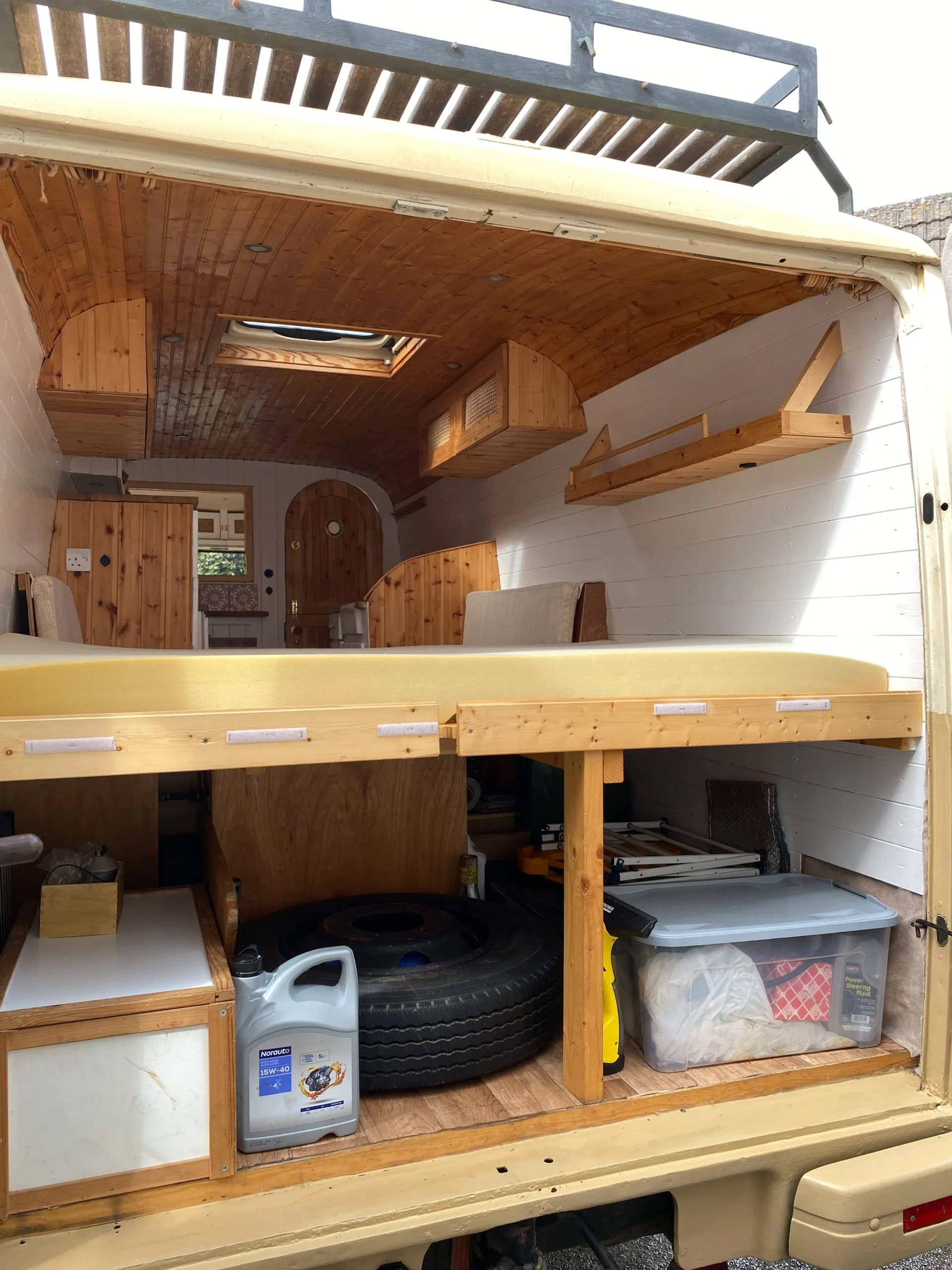

– There is also a spacious seating area with two facing benches (storage underneath), a slide out table from under the bed which can be moved for use in the cab area too, overhead cupboards for storage and a double bed at the back. The bed sits above a good size garage which is accessible from the rear of the van. (We have included photos of the van lived in plus empty ready to sell).
– We have recently painted some parts since many of the images on the road were taken.

*Viewings are essential*
– We are based in Cornwall where we can arrange viewings. We are able to drive and deliver around the uk if required (a charge for fuel would be added).
– We are open to reasonable offers.

Motorhome conversion – We converted Sandy from scratch, this was great to work with a blank canvas and we documented the whole process.

Exterior – receipts included

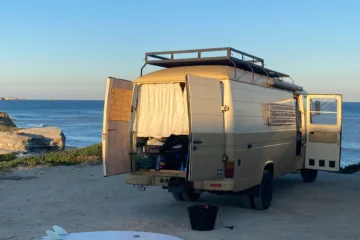

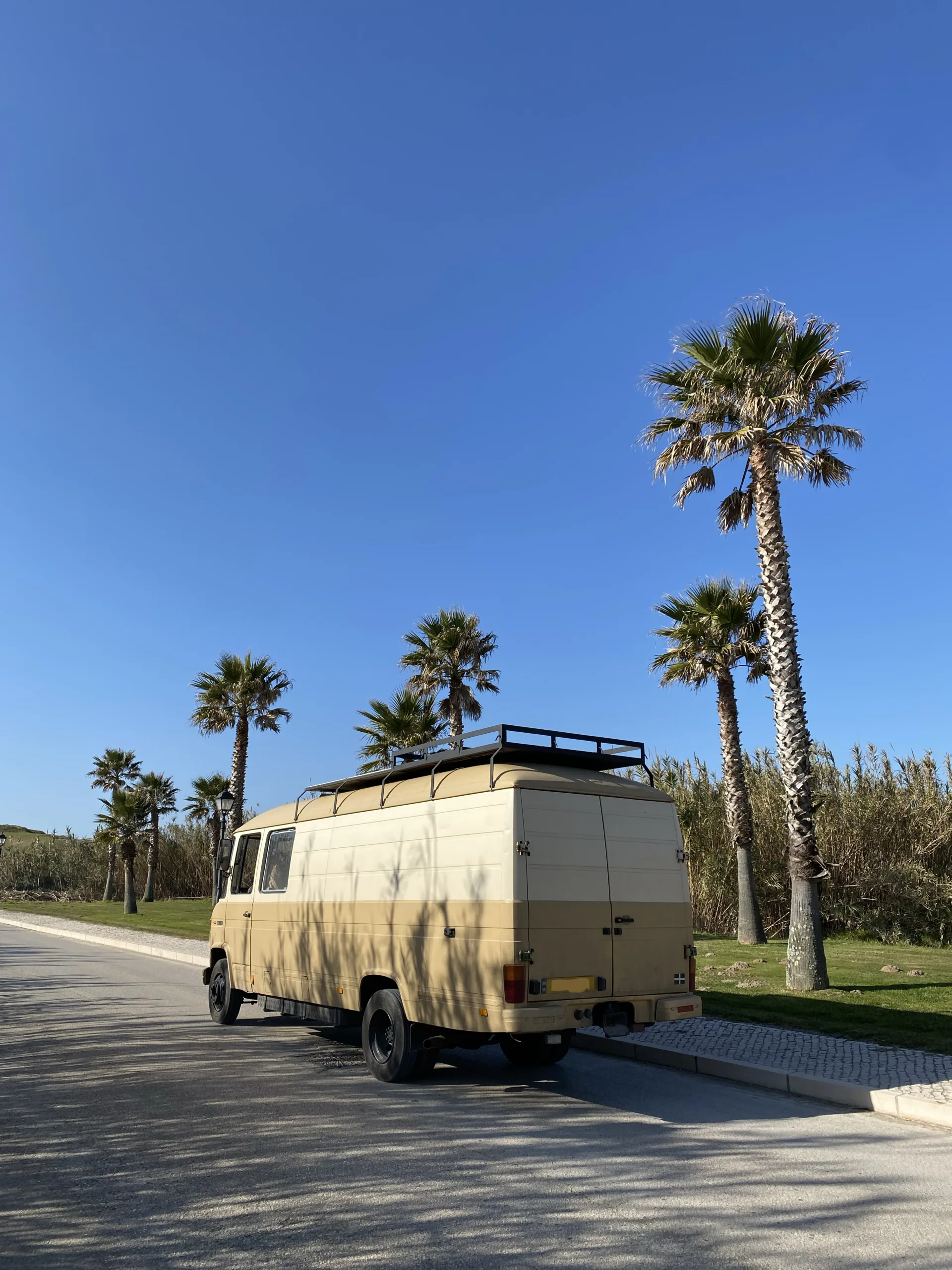

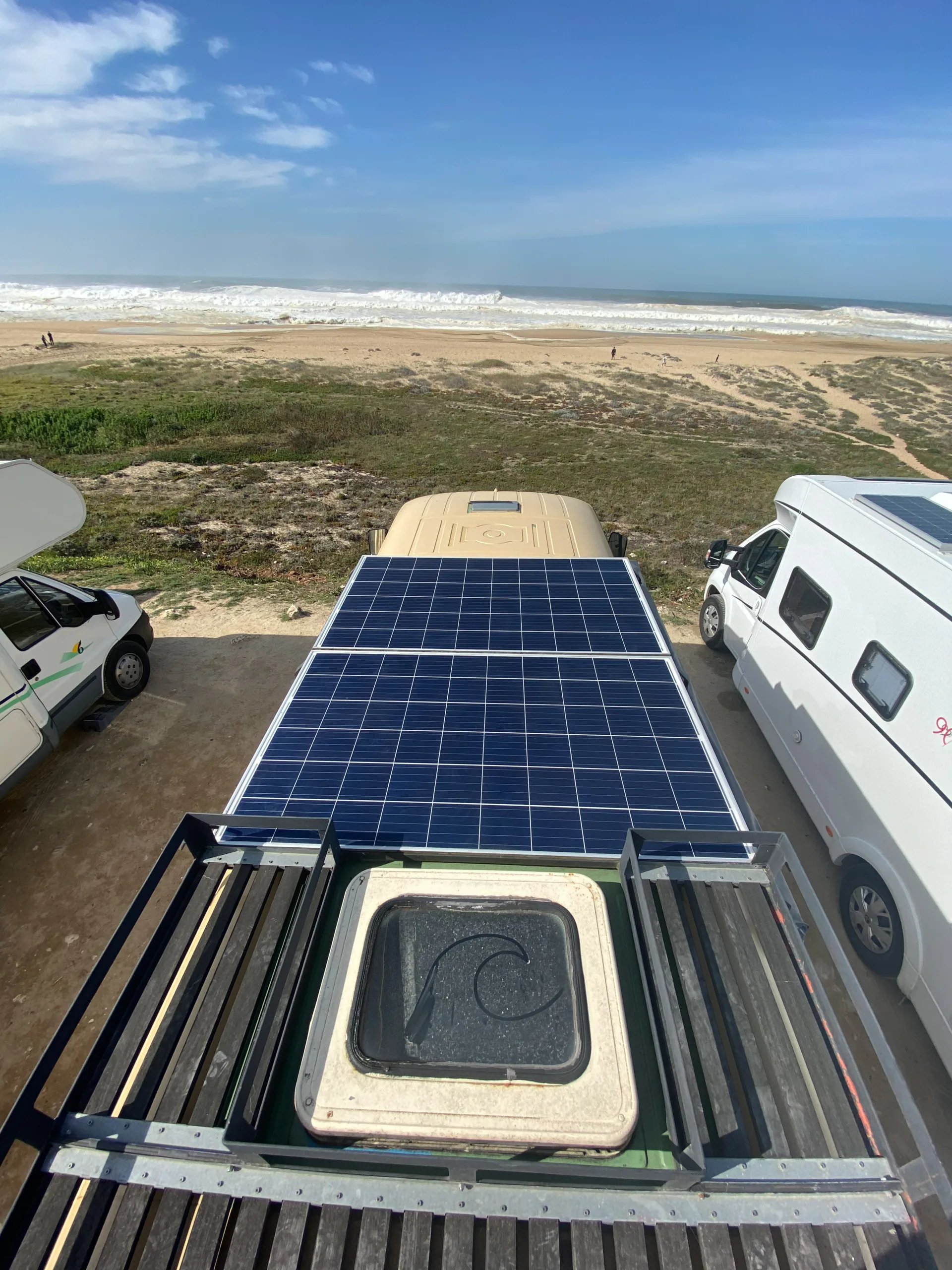

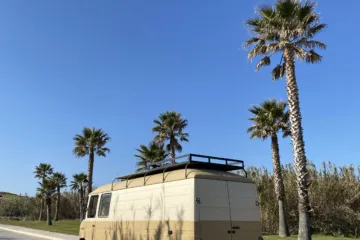

– A very good quality custom steel roof rack with decking has been professionally fitted, this also houses includes the solar panels.
– High quality sand tracks
– 230V 16a electric hookup
– 2x 275 watt Talesun poly solar panels
– ARB awning
– 70 litre fiamma water tank – fillable from the side of the van.

Interior – Converted to be liveable all year round in the Uk but also to be fully off grid here or on the road. We designed the layout and built the interior ourselves.

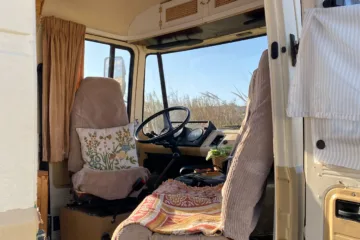

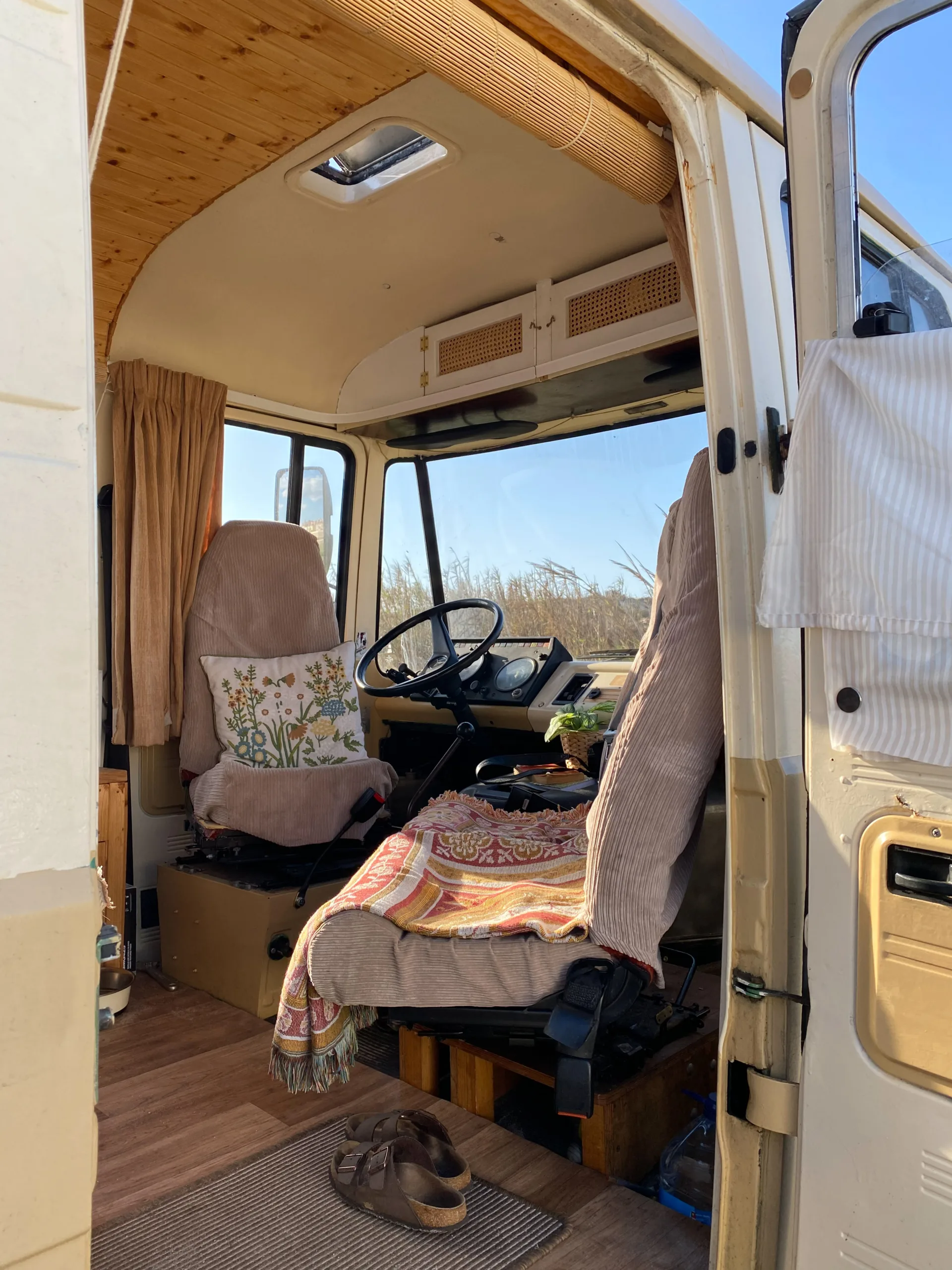

– Rotatable captains drivers and passenger coach seats in the cab

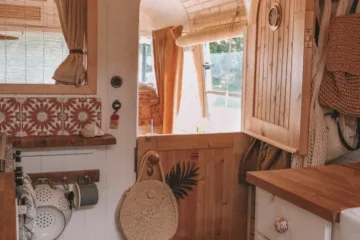

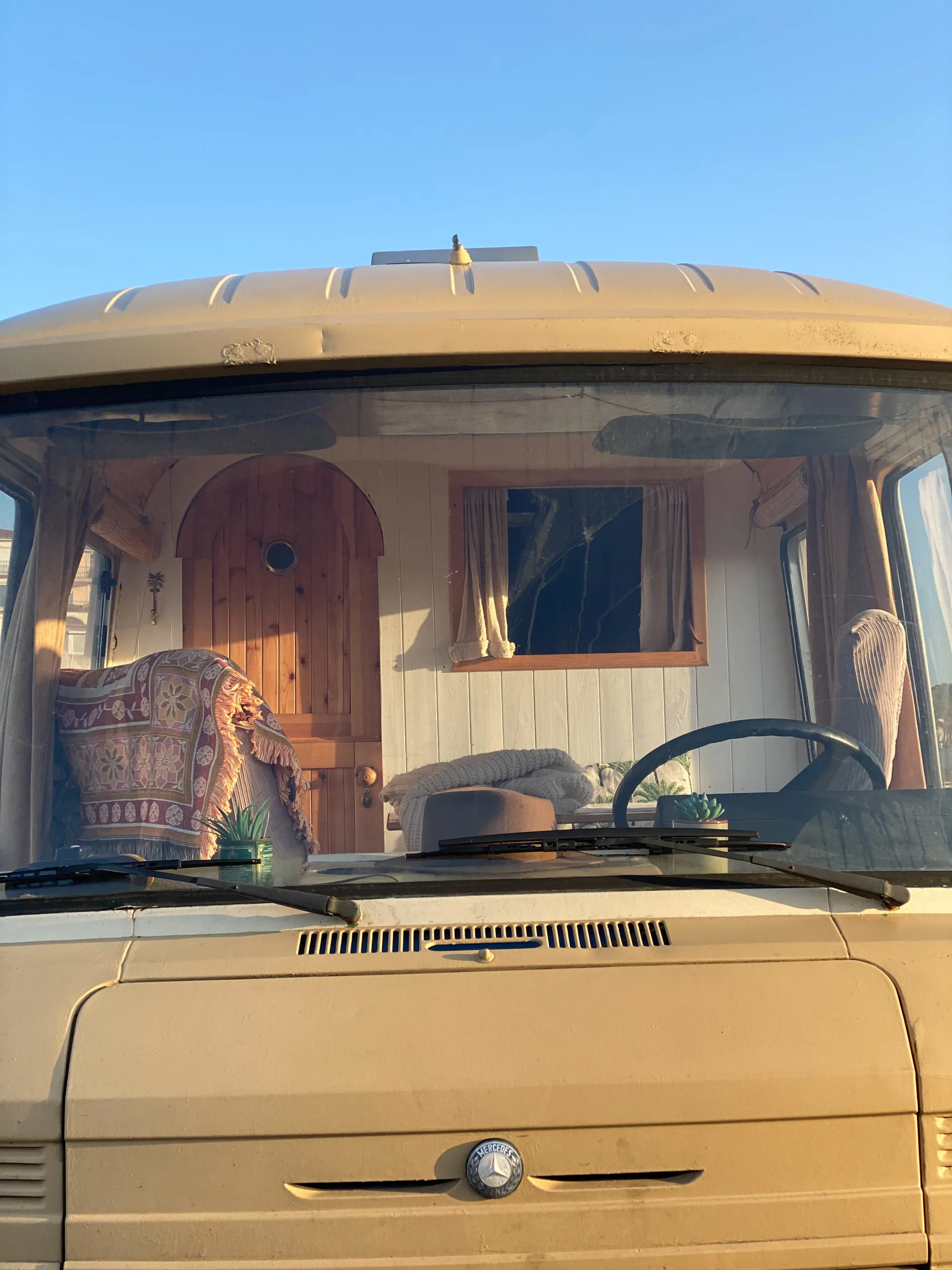

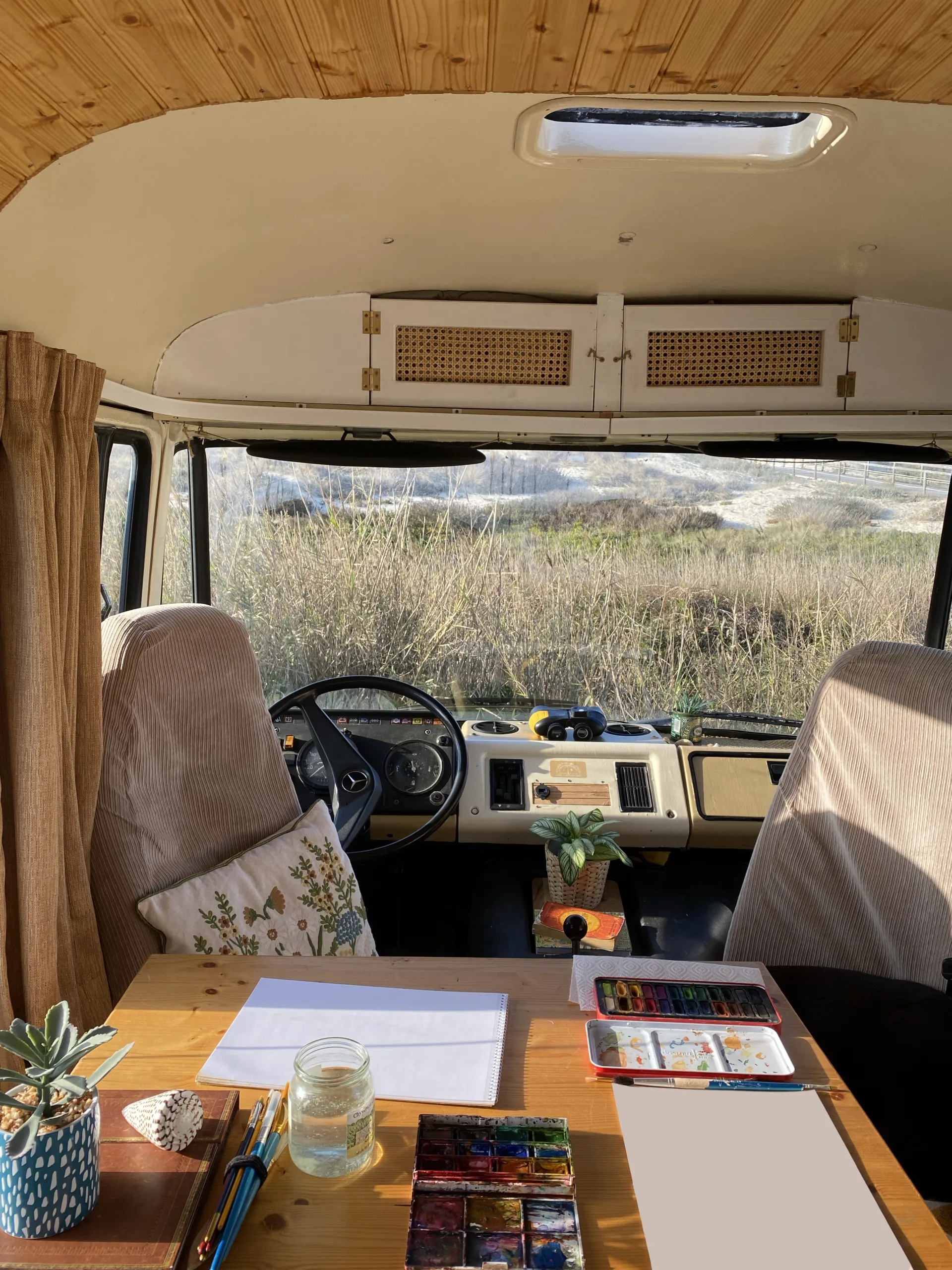

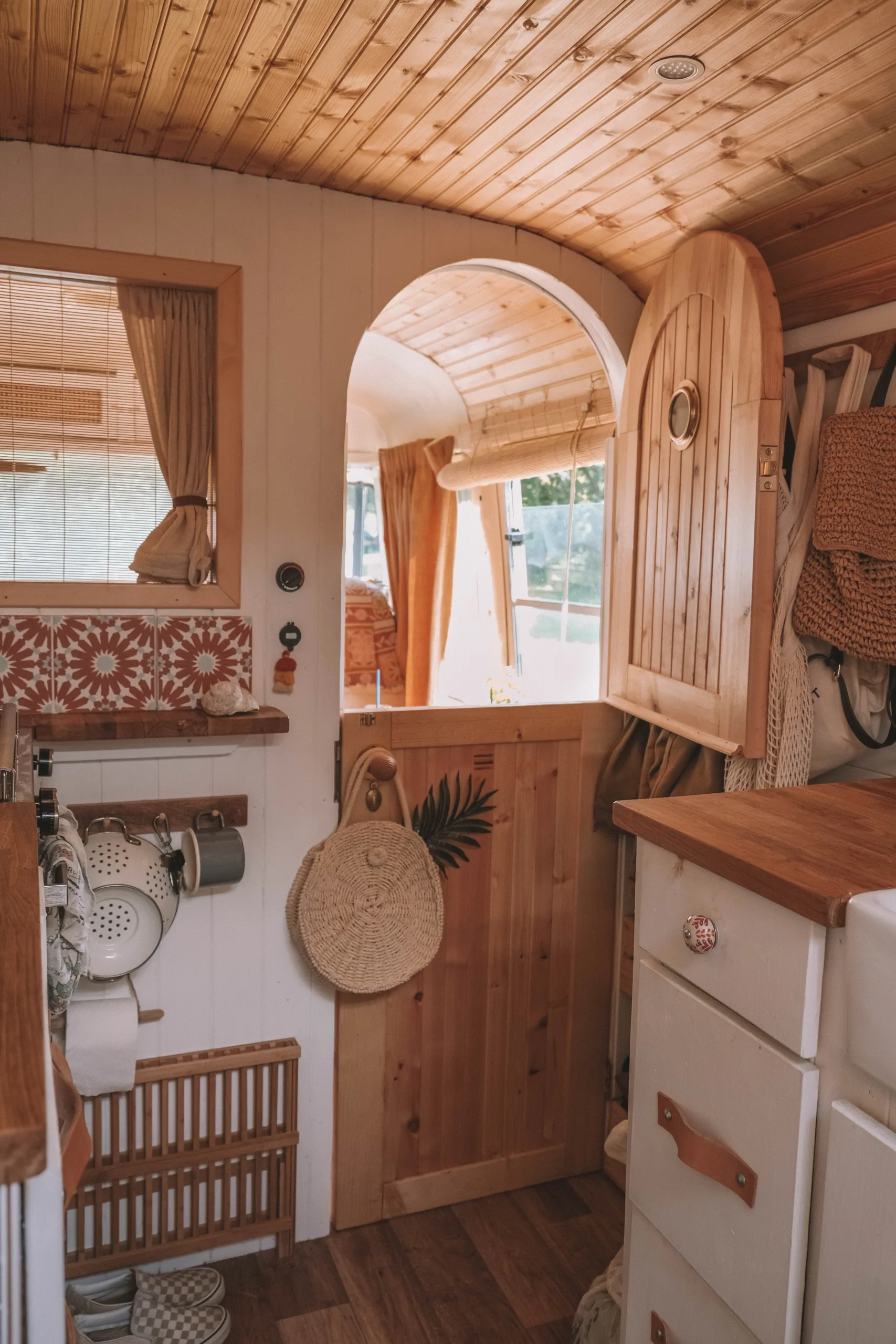

– We have partitioned the front cab from the rear which splits the van into two rooms, helping mainly with heat retention in the back as well as privacy and security, we also think it looks really nice with the custom made arch stable door!
– Rockwool and multi layered foil insulation
– Tongue and groove wooden cladding throughout, painted white with the rest sealed with Osmo poly-x oil to repel moisture and mould.
– cellotex insulation on the floor and hardwearing wood effect lino flooring
– Headroom – 6ft 2”

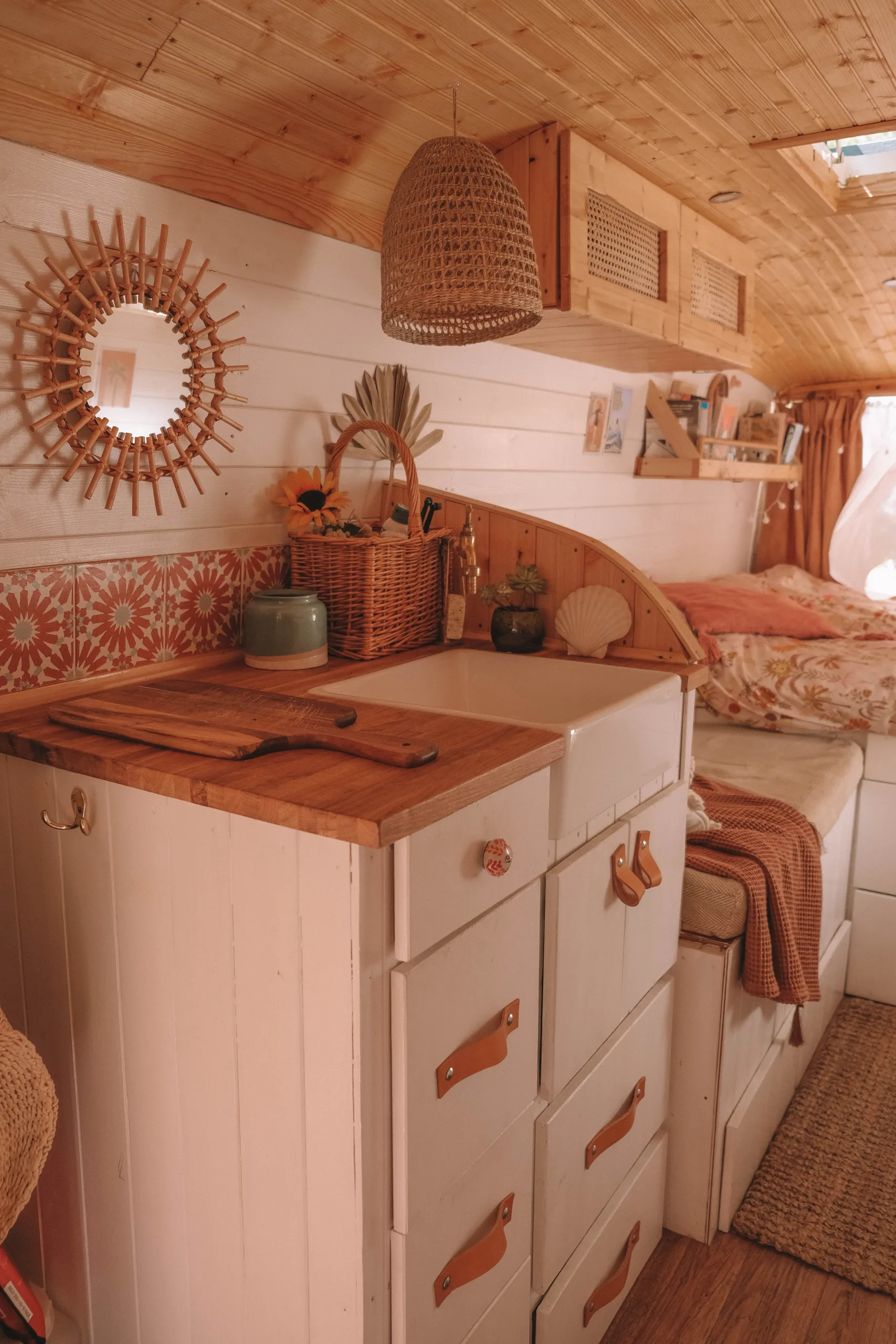

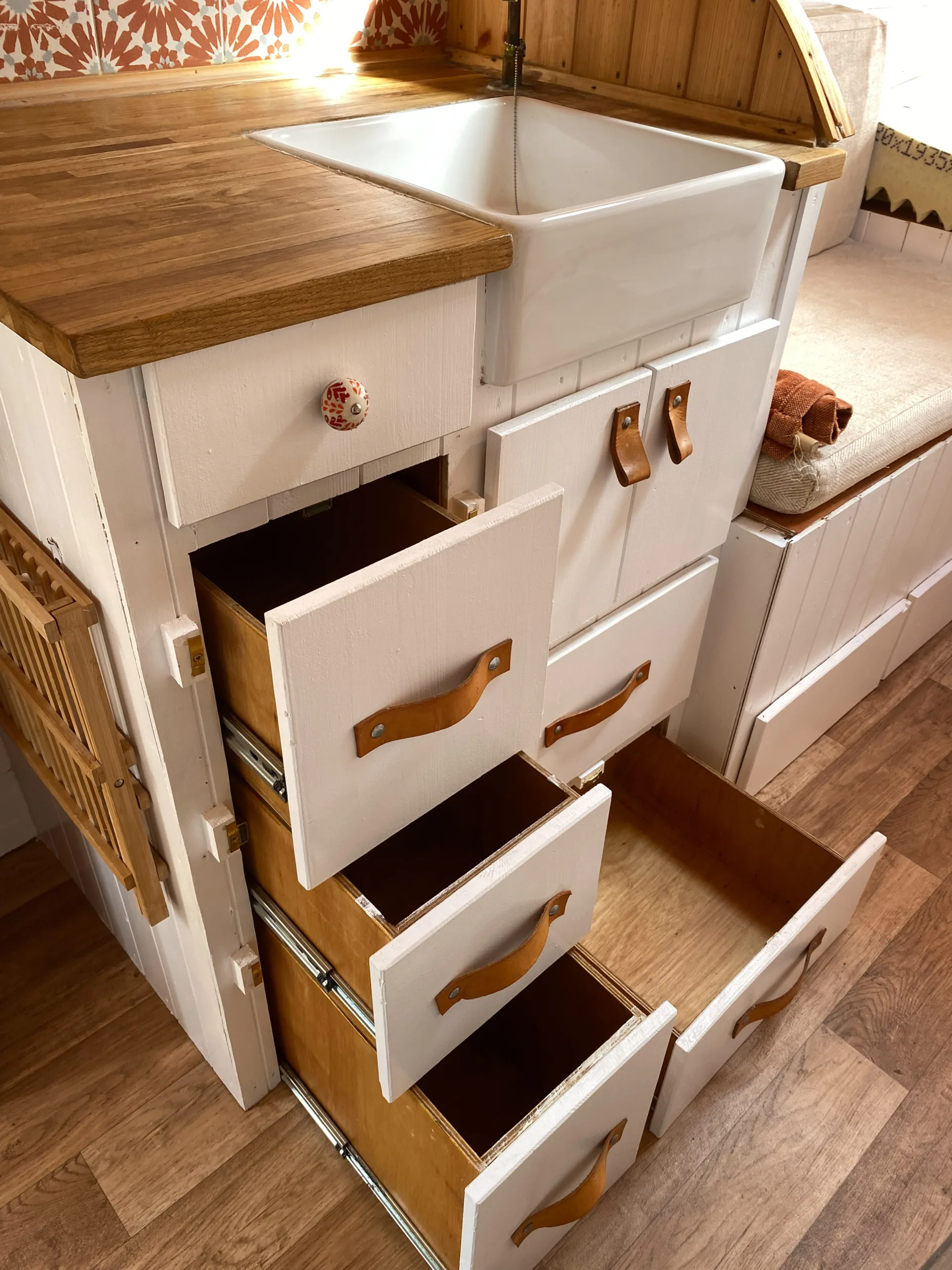

– custom made cabinets and oak worktops in the kitchen
– Furnished bench seats and malfors ikea foam mattress
– hinged side window added
– We created a storage space for surfboards along one side which runs under the bench seats

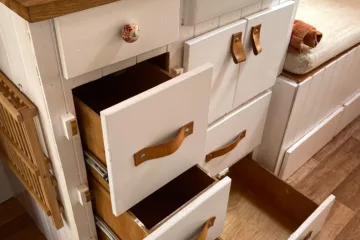

– Lots of storage drawers for easy access

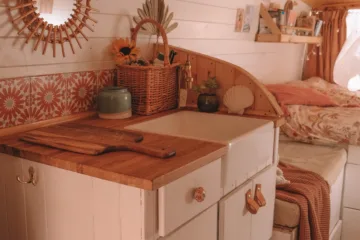

– Belfast sink with copper and brass tap
– Dometic ‘sunlight’ gas oven and hob
– bolt lock fitted on backdoors for extra security

Electrics
Batteries setup from the solar panels in parallel on 24 volts, everything runs on 12v apart from the when the inverters on to charge laptops.
– 2 x deep cycle non maintenance 12 volt leisure batteries
– Victron pure sinewave inverter – 24 | 375 230v output
– MPPT solar controller
– changeover fuse/ circuit breaker box from mains electric (when hooked up) to generator (off grid)
– viltron orion tri 24v – 12v converter
– 2 x 240v plugs
– battery charger which runs off the 230v hookup
– Webasto AirTop 2000STC heater kit – ducting to the front and rear of the van, control dial next to the door – this keeps the van very toasty in the colder months and uses minimal fuel – pickup connected to the fuel tank
– Dometic 12 fridge
– Shureflo diaphragm Waterpump
– 12v touch LED recessed lights from Kiravans (so handy)
– 12 volt usb inputs throughout

Extras (more included than is listed)
– 2 spare lower right welding panels
– 15 kg flogas bottle
– Bottle jack (6 tonne load capacity)
– Axle stands
– T bar and sockets (for tyre changing)
– grease gun
– grease
– tyre pressure checker
– heavy duty jump leads
– extendable ladder
– Sand coloured Rustoleum combi colour paint
– lino
– foil
– fabric
– electrical cables
– travel shower
– fuel siphon kit
– washing rack
– hose for filling the water tank
– 20l metal diesel jerry can
– chocks
– spare tyre valves and dust caps
– ducting

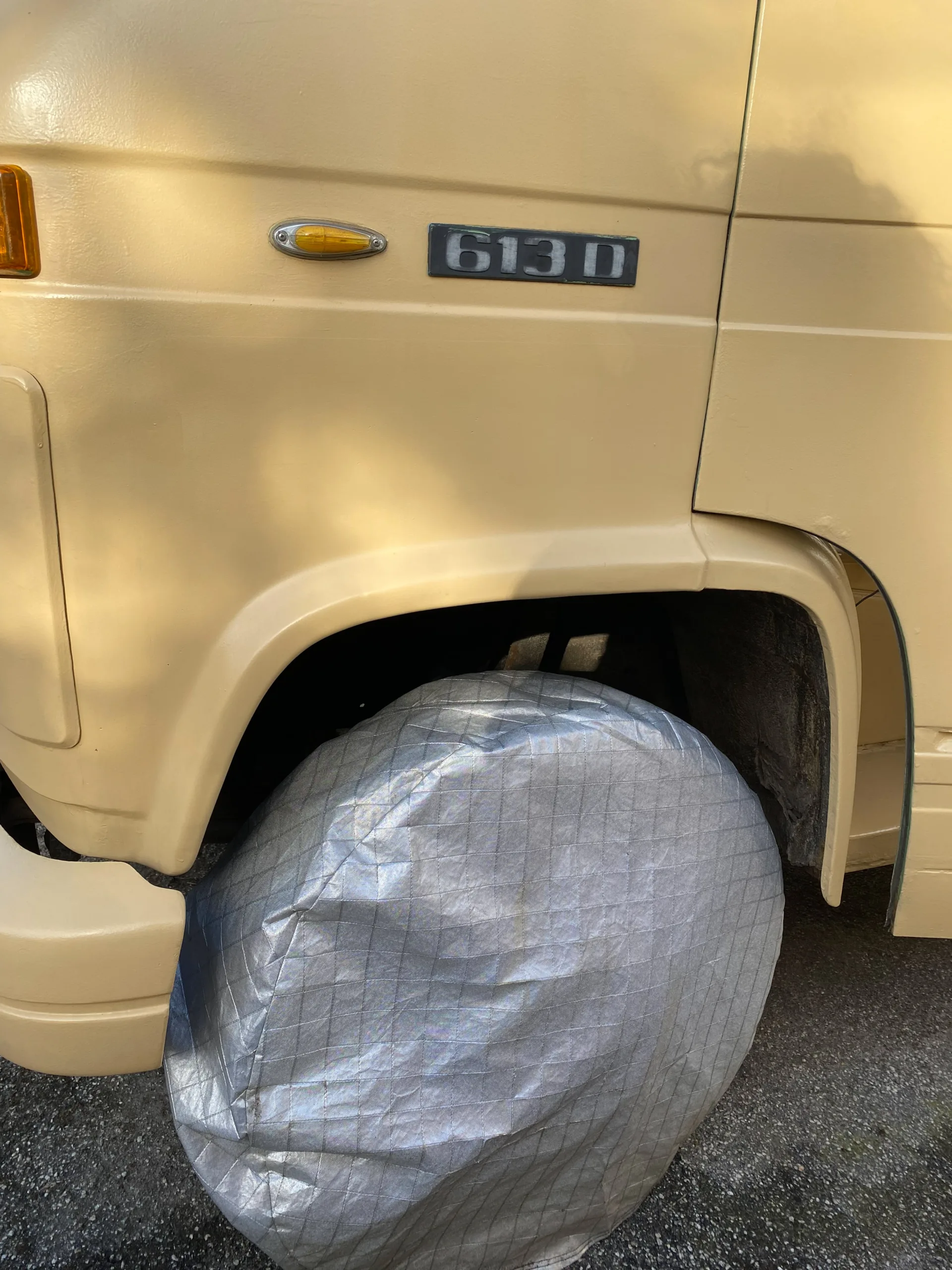

– tyre covers

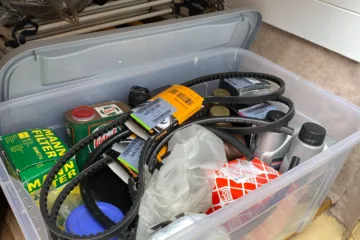

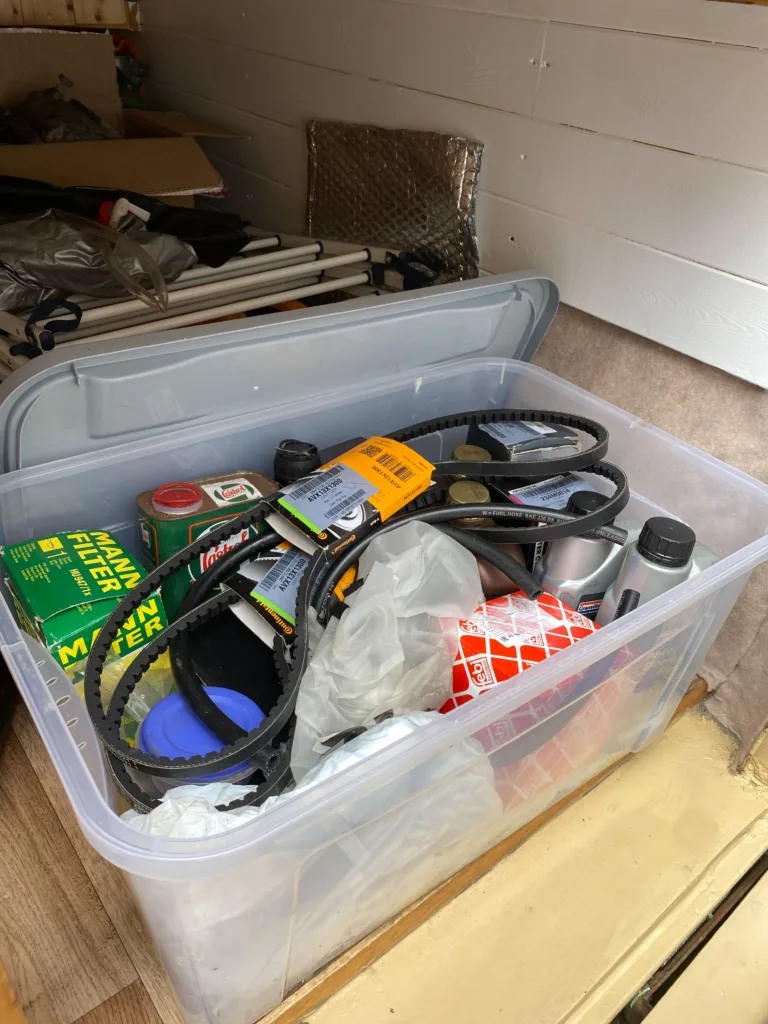

Spare mechanical parts Included (more not listed)
– Clutch master and slave cylinders
– fuel filters
– oil filter
– pulleys/belts
– brake cylinder – for reboring
– lights
– fuel pipe
– fluids – 15w40 Mineral oil, ATF fluid, brake fluid, coolant
– spare front dashboard panel
– lightbulbs

Only selling in the UK.
Sold as seen.

Thanks for looking!

Beds Description

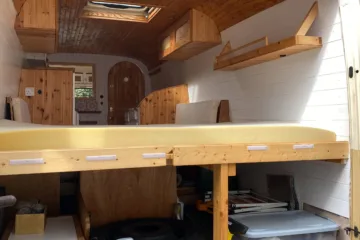

Permanent double slatted bed above the garage
Can easily sleep 4+ (2 adults and 3 children) with the space. The sofas could be joined together to create another bed
135 cm wide by 190 cm long, which is 4 ft 6 in wide by 6 ft 3 in long

Main Bed Length
190cm
