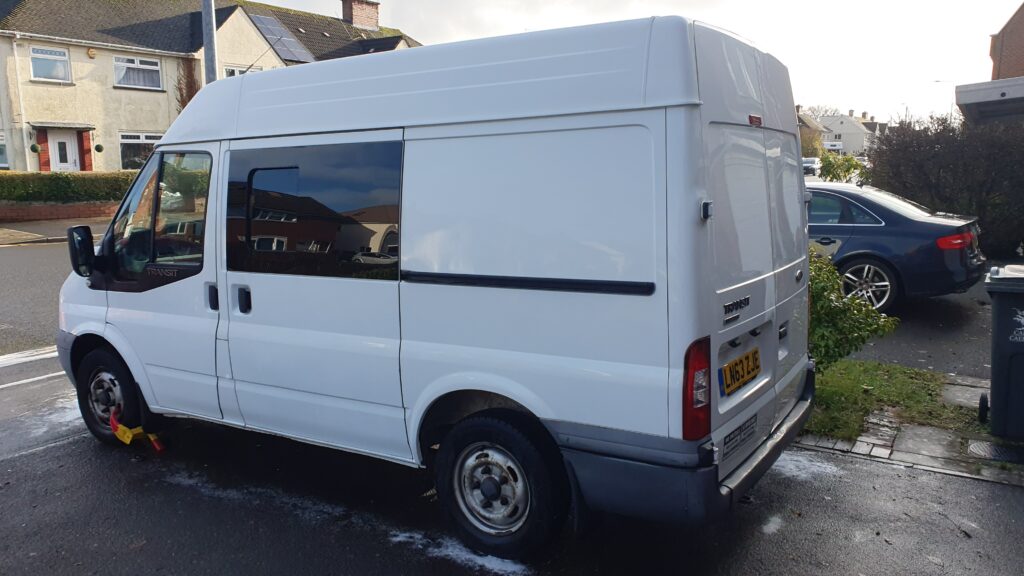

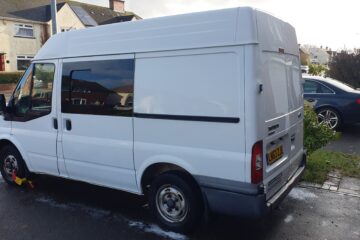

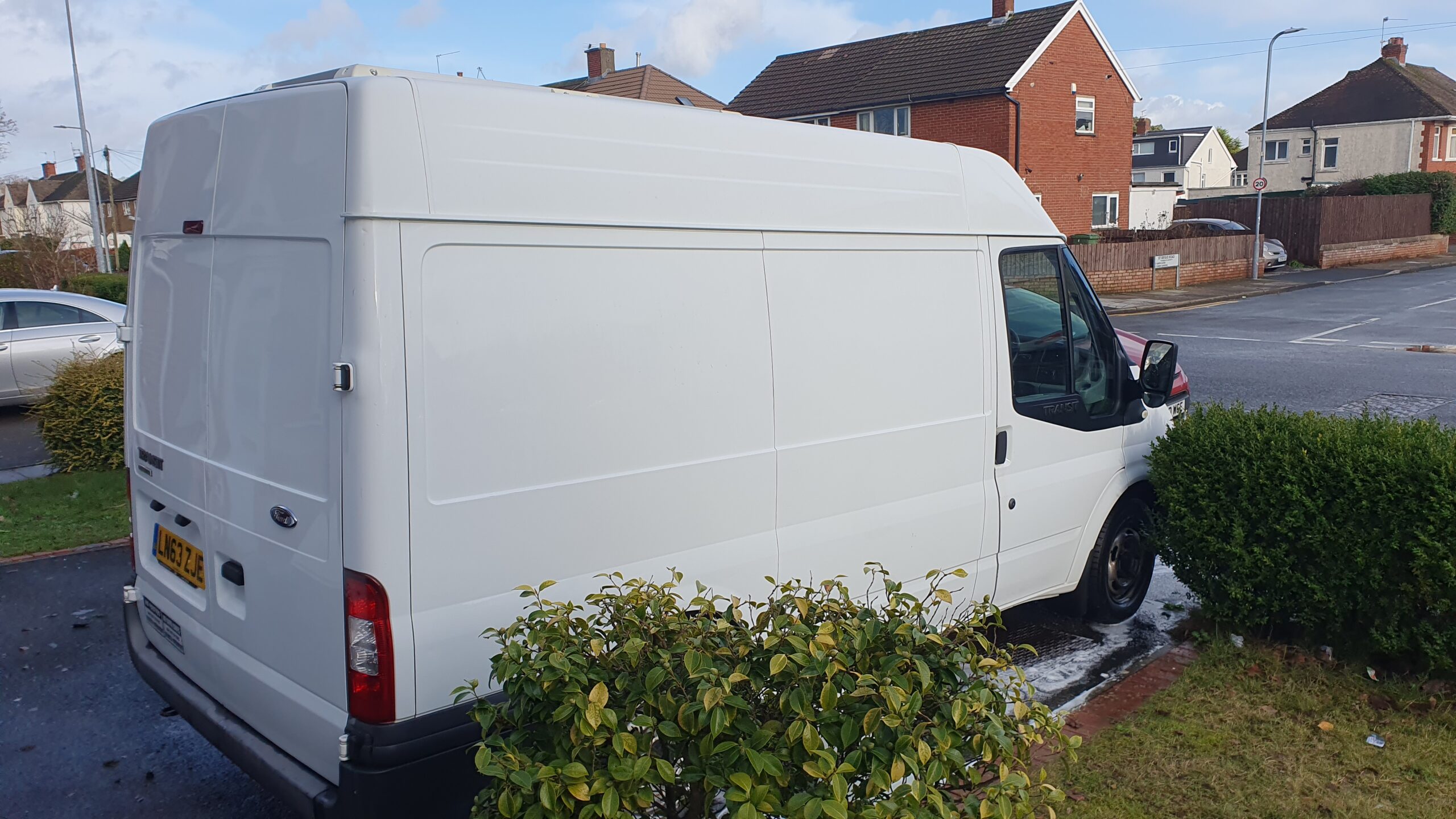

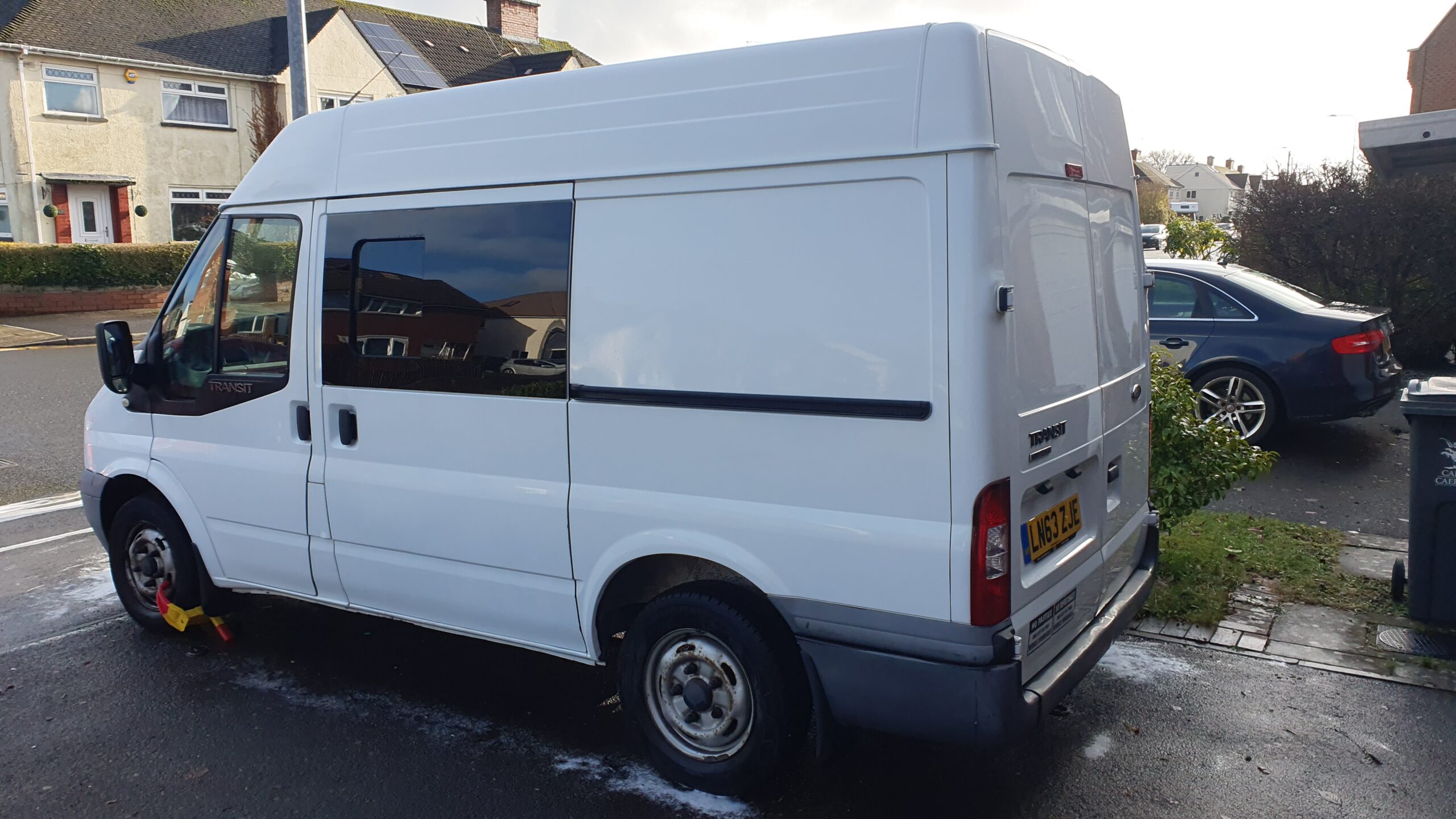

Off-Grid Ford Transit Camper 2013

Electrical System
• Fully off-grid camper

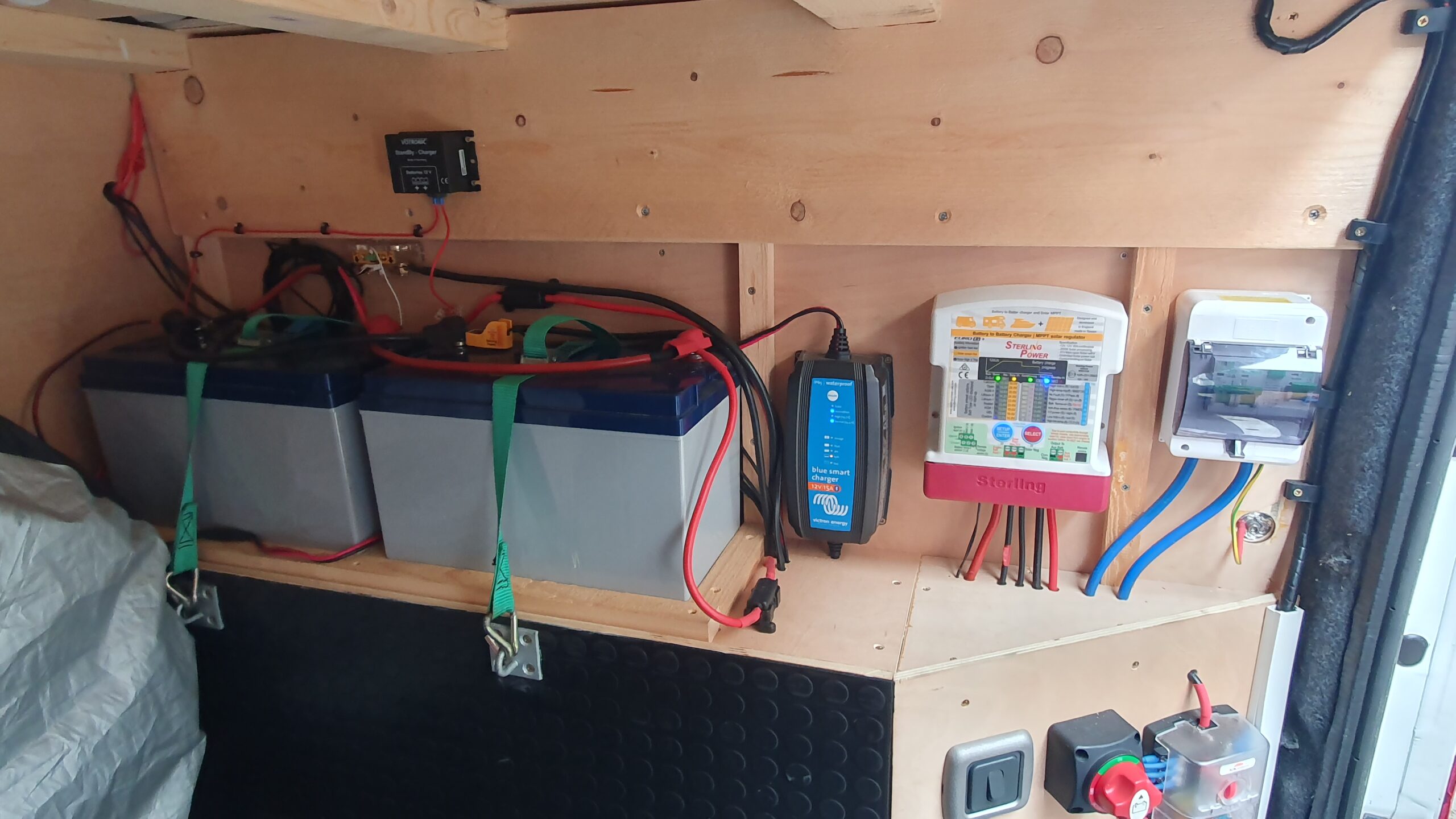

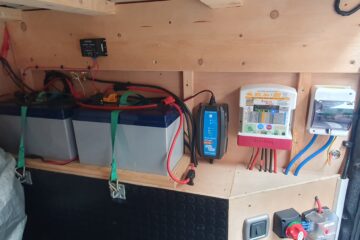

• 2x AMG 130Amh leisure batteries – secured with straps on rear wheel arch box.

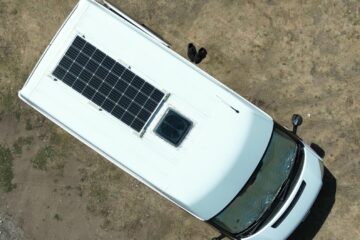

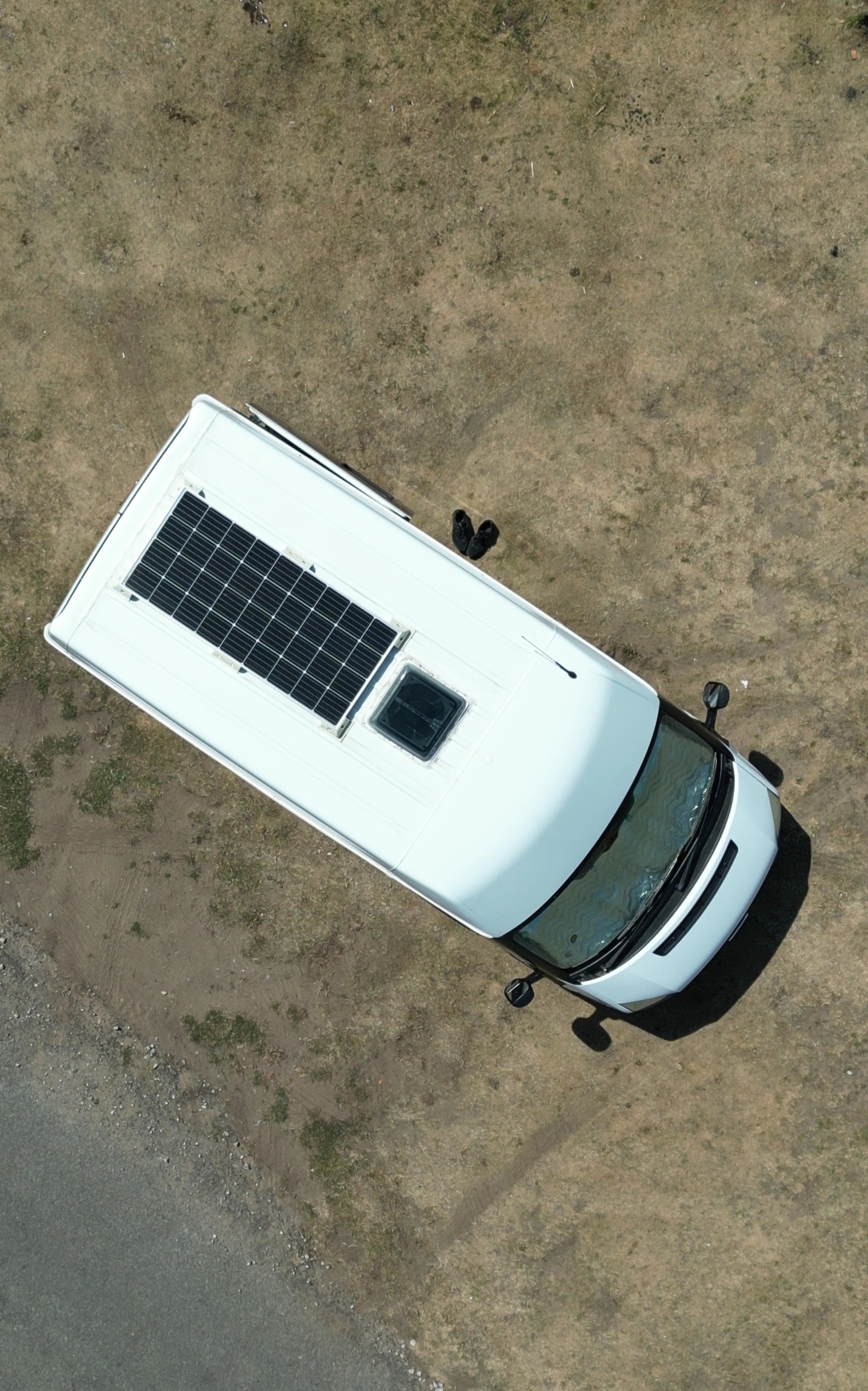

• 180W roof mounted solar panel

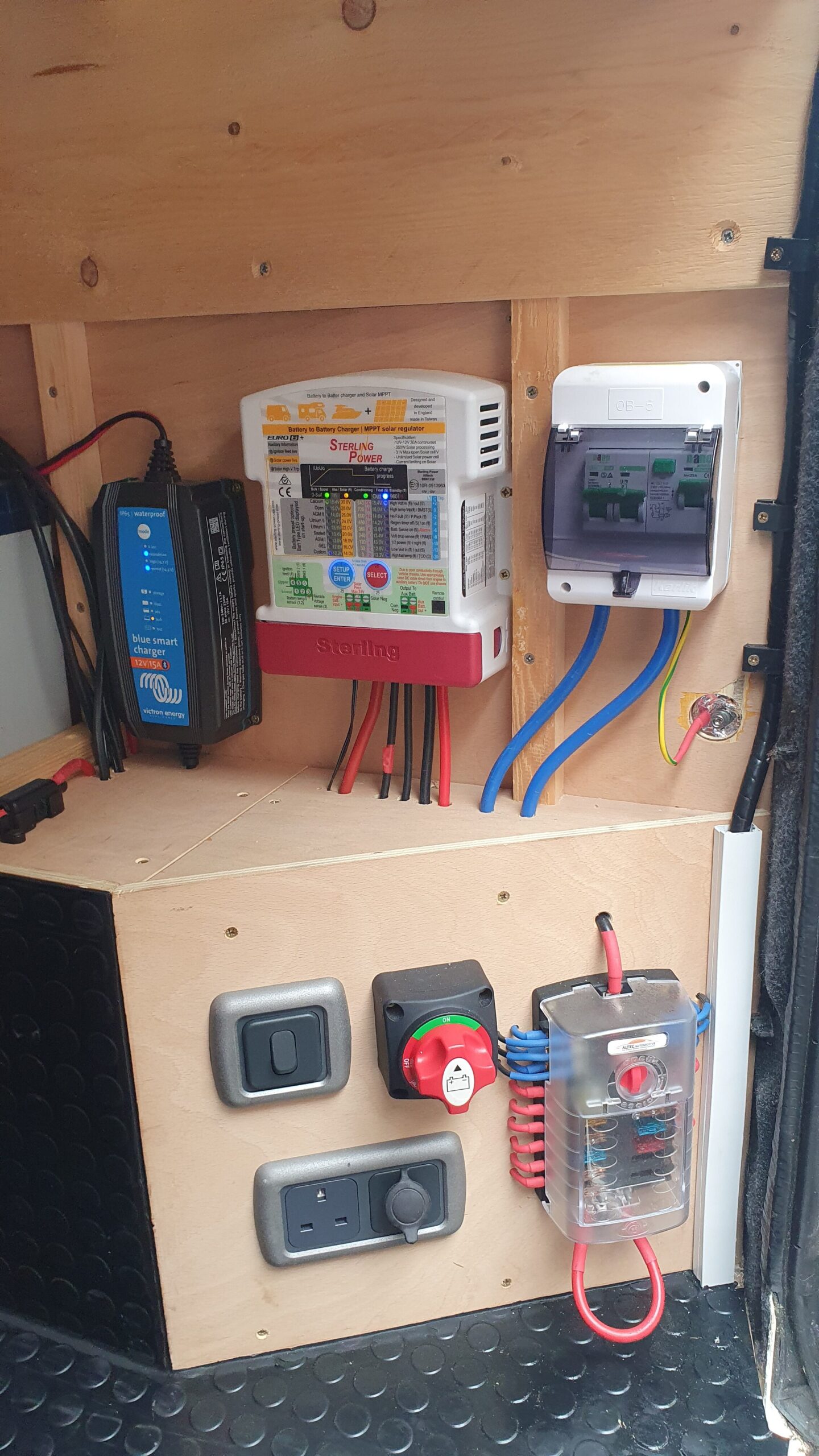

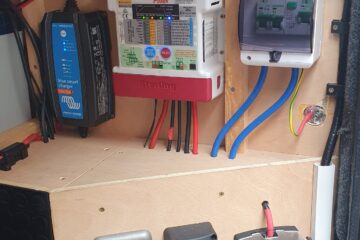

• Sterling BBS1230 Battery to Battery charger and MPPT solar charge controller – charges the leisure battery while driving and via the solar panel.

• Victron Blue Smart IP65 230v Mains Battery Charger – charges both leisure and van starter battery and can recover deeply discharged ‘dead’ batteries.

• Shore hook-up with double pole RCD with 10m charging cable – charges both the leisure batteries and van starter battery at campsites and at home.

• Voltronic starter battery trickle charger 3A – simultaneous trickle charges the starter battery whilst the leisure battery is being charged from a mains charger and solar.

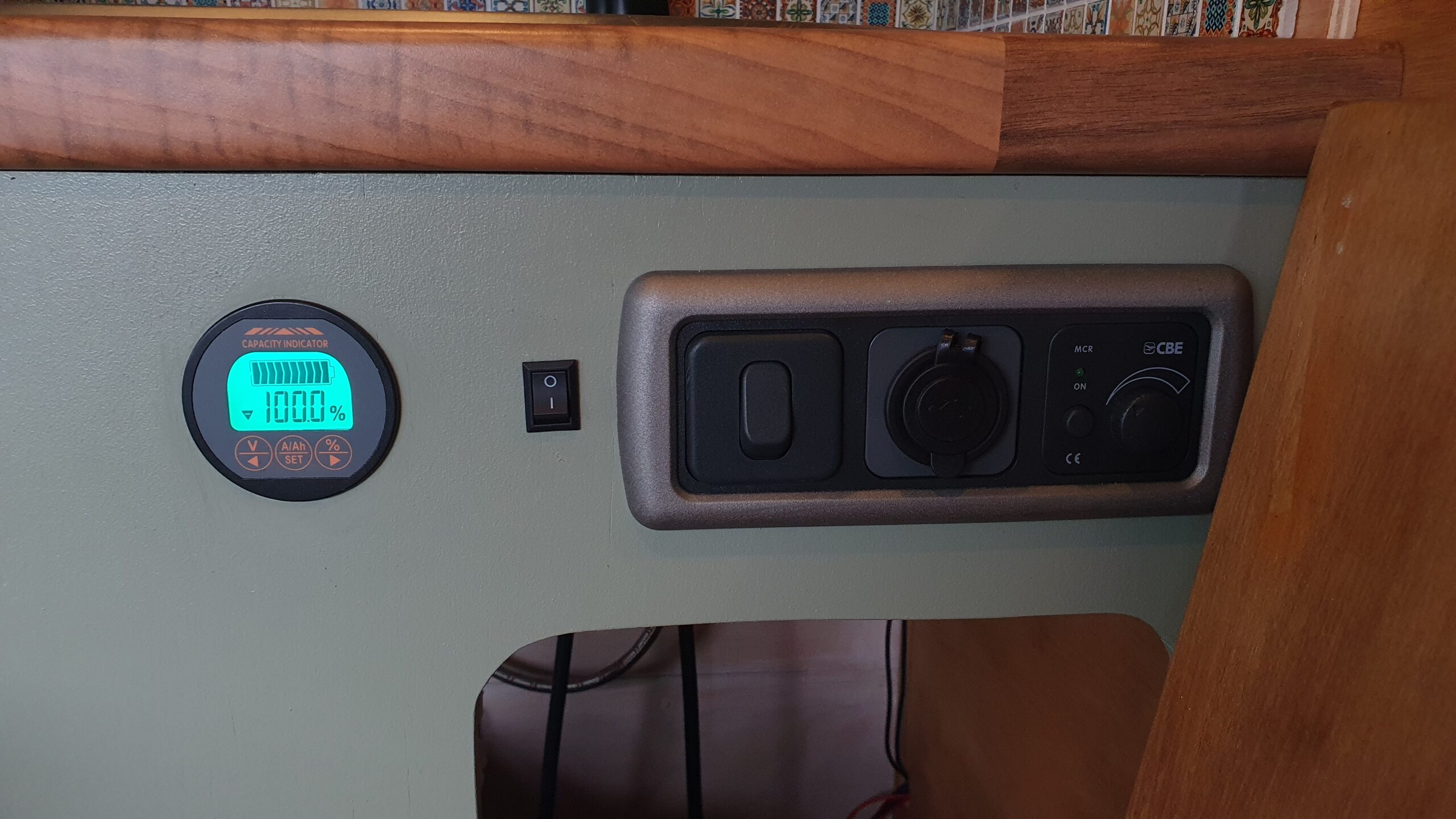

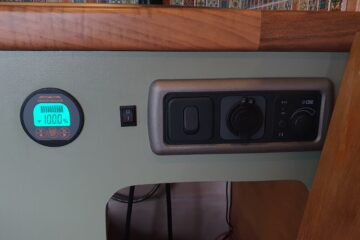

• Battery monitor with shunt and digital display displaying battery voltage and % – it’s a great reassurance when you’re off grid that you’ve got way more energy than you need.

• 200A Isolation switch – isolates the leisure batteries from all electrics.

• Main spotlights with 2-way light switch – one switch by the side door entrance, and another on front of kitchen unit.

• Dimmable LED strips – great for evening lighting while having dinner and laying in bed.

• Spotlights in overhead storage – super helpful when finding things buried at the back!

• Reading light with USB

• 2x USB ports – both on the front of the kitchen unit by the bench.

• 2x 230v plugs – one by the side door entrance and one in the garage / boot.

• 1x 12v socket – in the garage. Useful when using the shower and portable tyre pumps, etc.

• Earthing / grounding points – Separate 230v and 12v earthing/grounding points.

• 12v fuse box – All loads connected to a 12v fuse box and protected by appropriate fuses.

• All internal wiring runs protected in flexible conduit.

• Electrical installation checked by electrical engineer and conforms to wiring regs.

Appliances
• Fiamma turbo vent – adjustable temperature and fan speed.

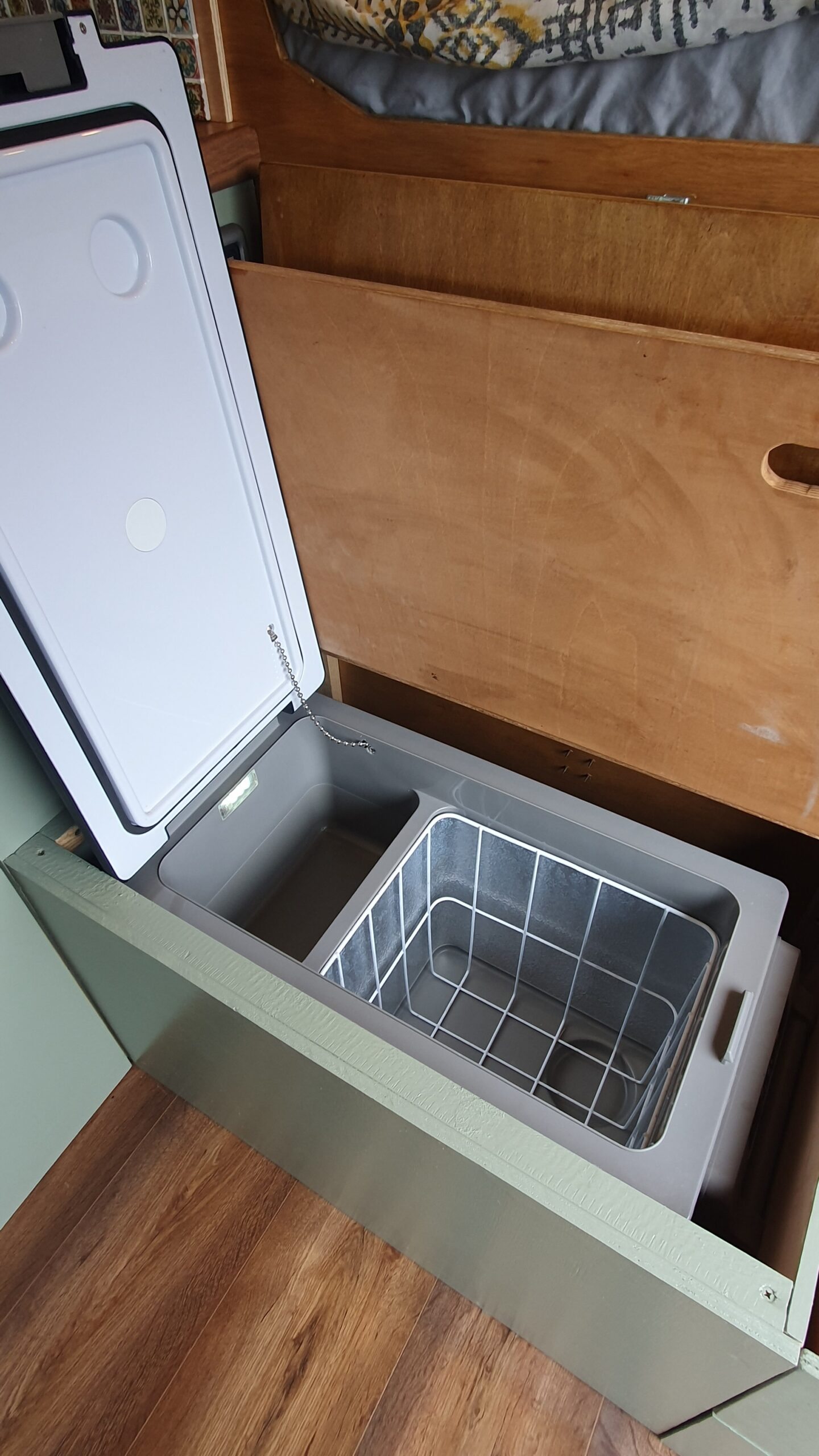

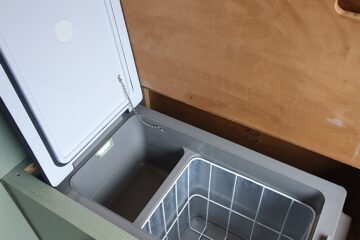

• JustKampers 45ltr temperature adjustable compressor fridge. Easily accessible under the bench and can also be accessed when the fold up work top is up.

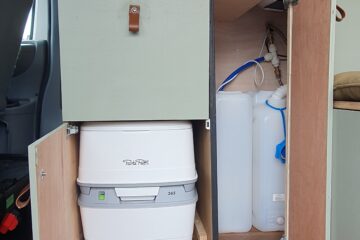

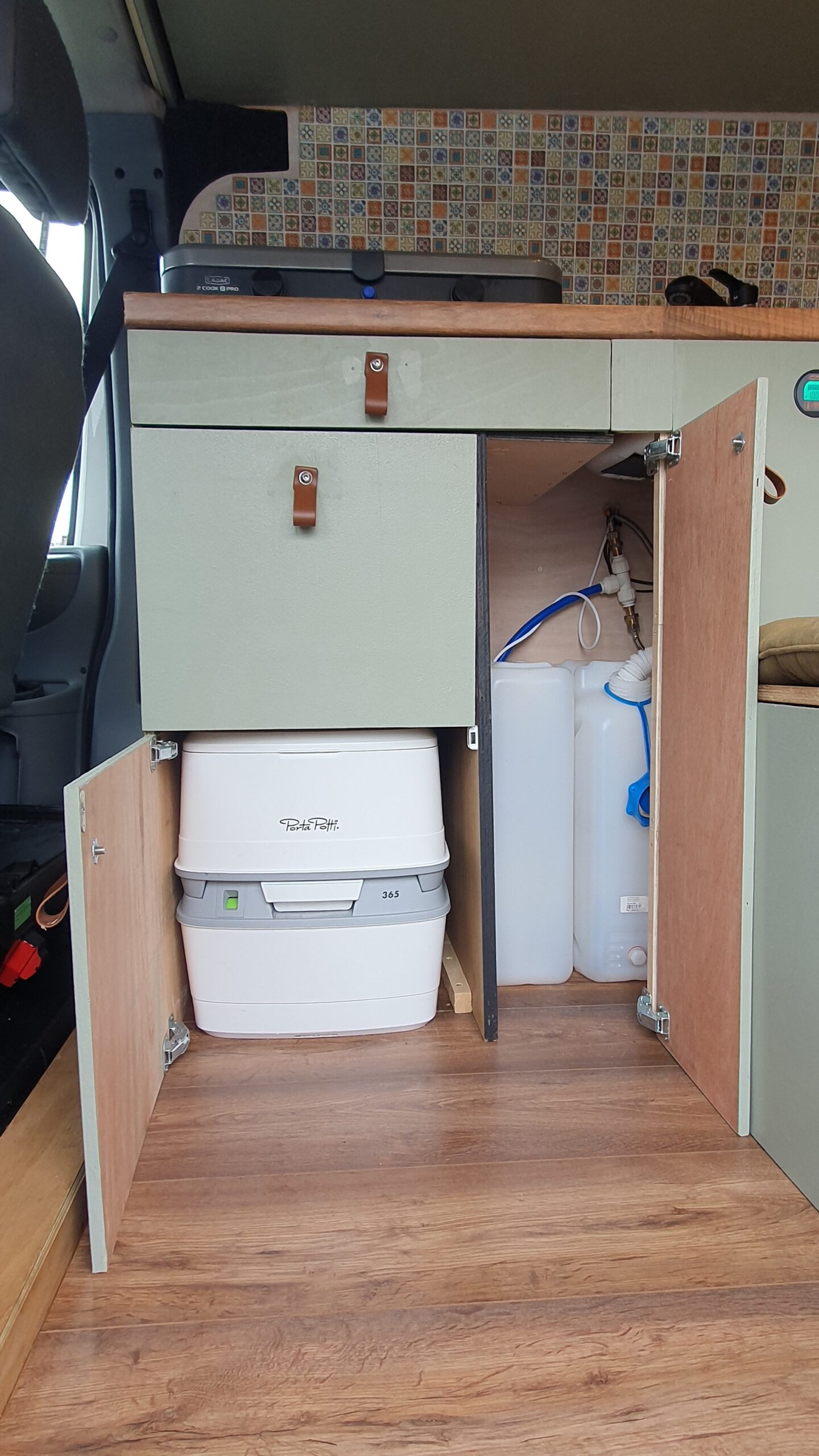

• PortaPotti 365 – under the kitchen unit. Tucked away and easily accessible. It will last 4 – 6 days of two people peeing and pooping before it needs emptying.

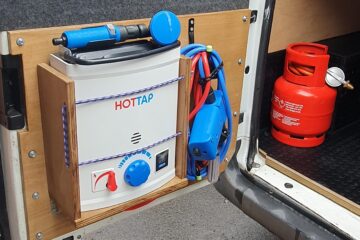

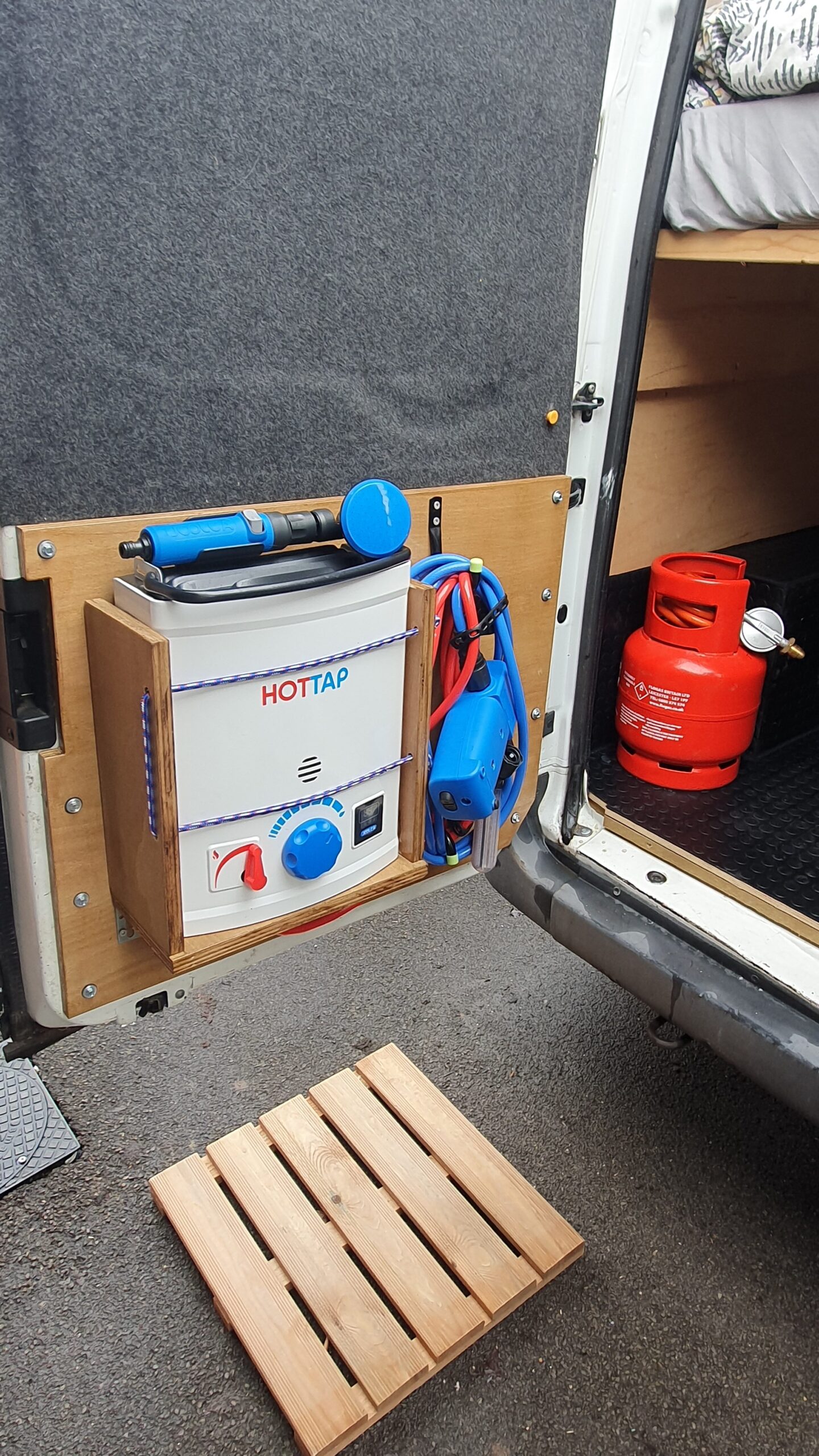

• Outdoor HOTTAP Shower with 6.6kg gas cylinder – take a hot shower anywhere! Attached to the rear door and gas cylinder in garage. I’ll also include the decking board.

• Cadac Pro 2 cook two burner portable stove with two flat tops.

Other features

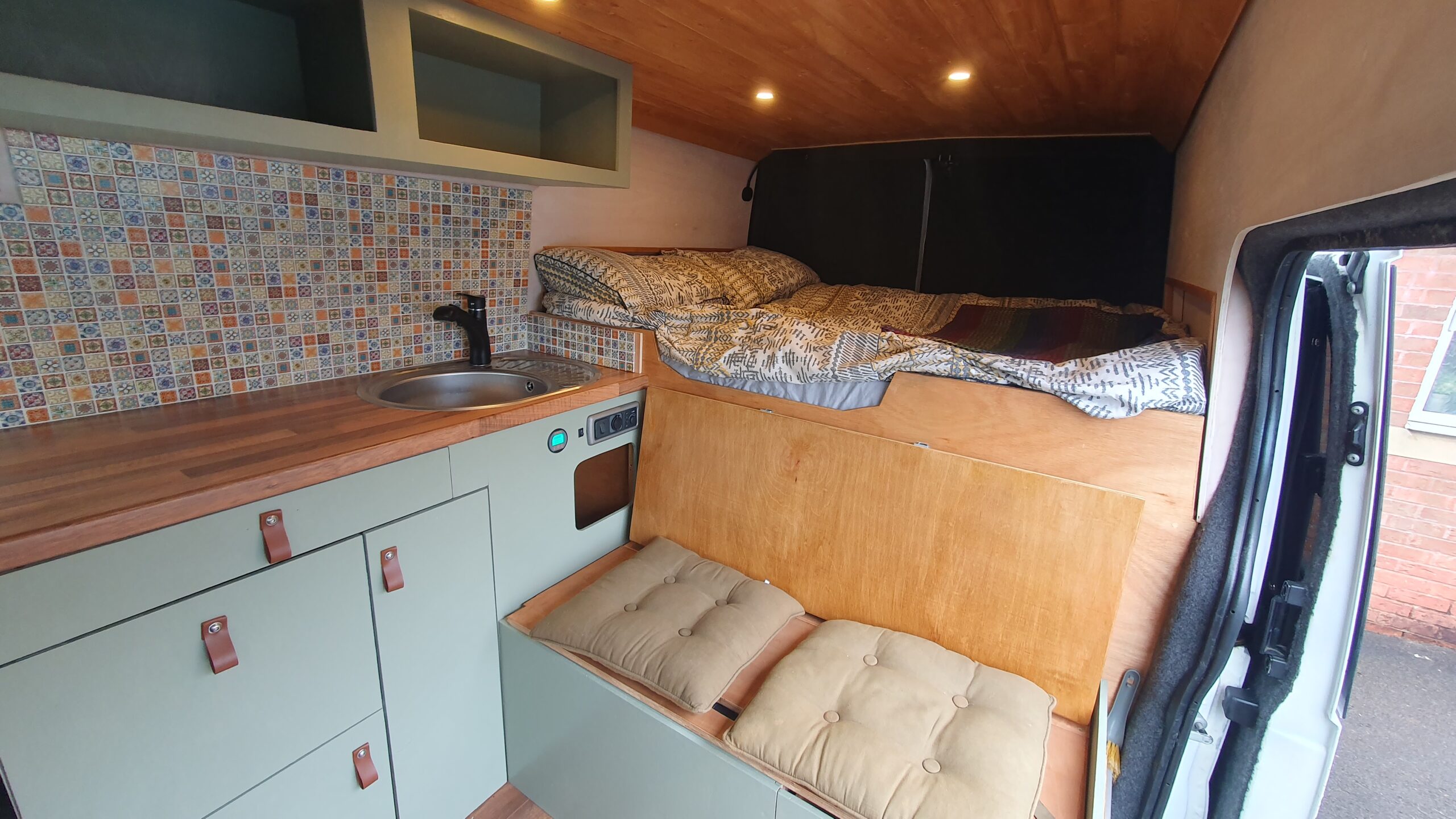

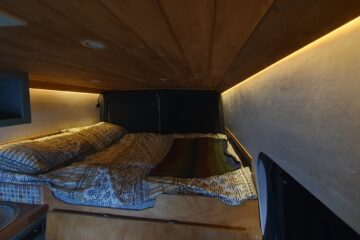

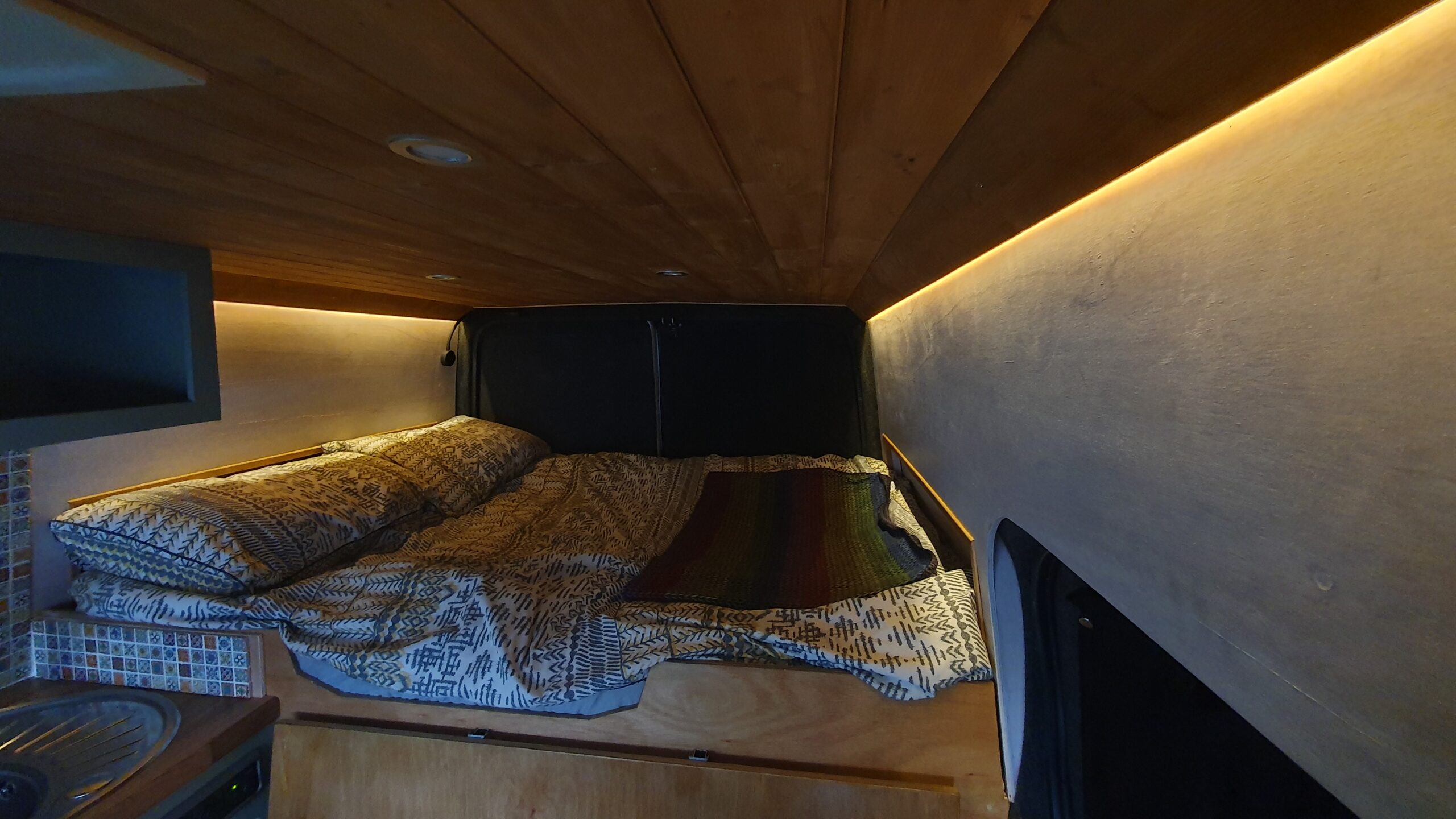

• Fixed bed – Small double. L 180cm x W 128cm. Comfortable bespoke foam mattress.

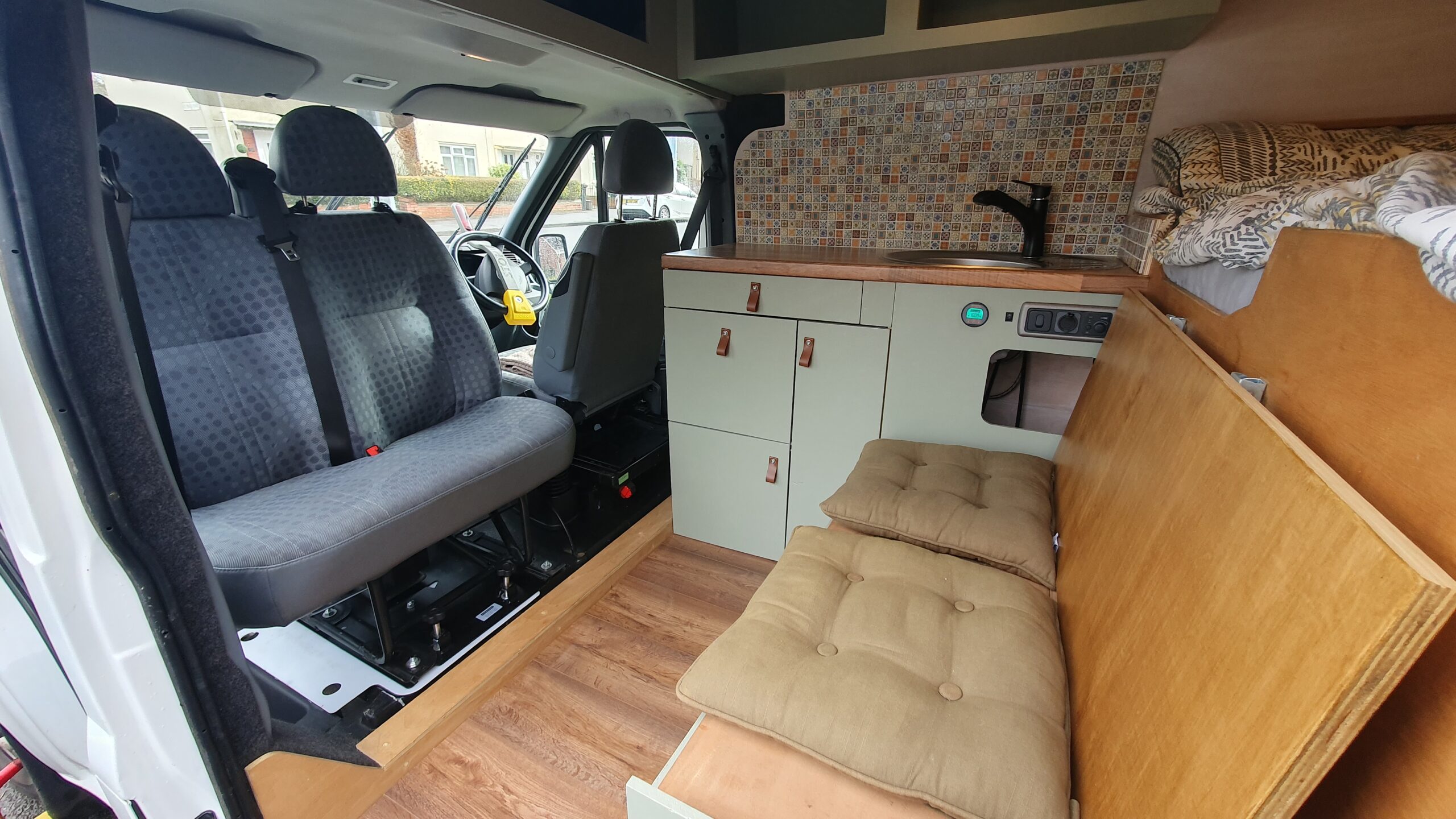

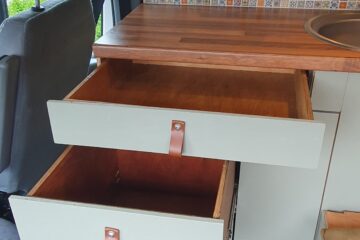

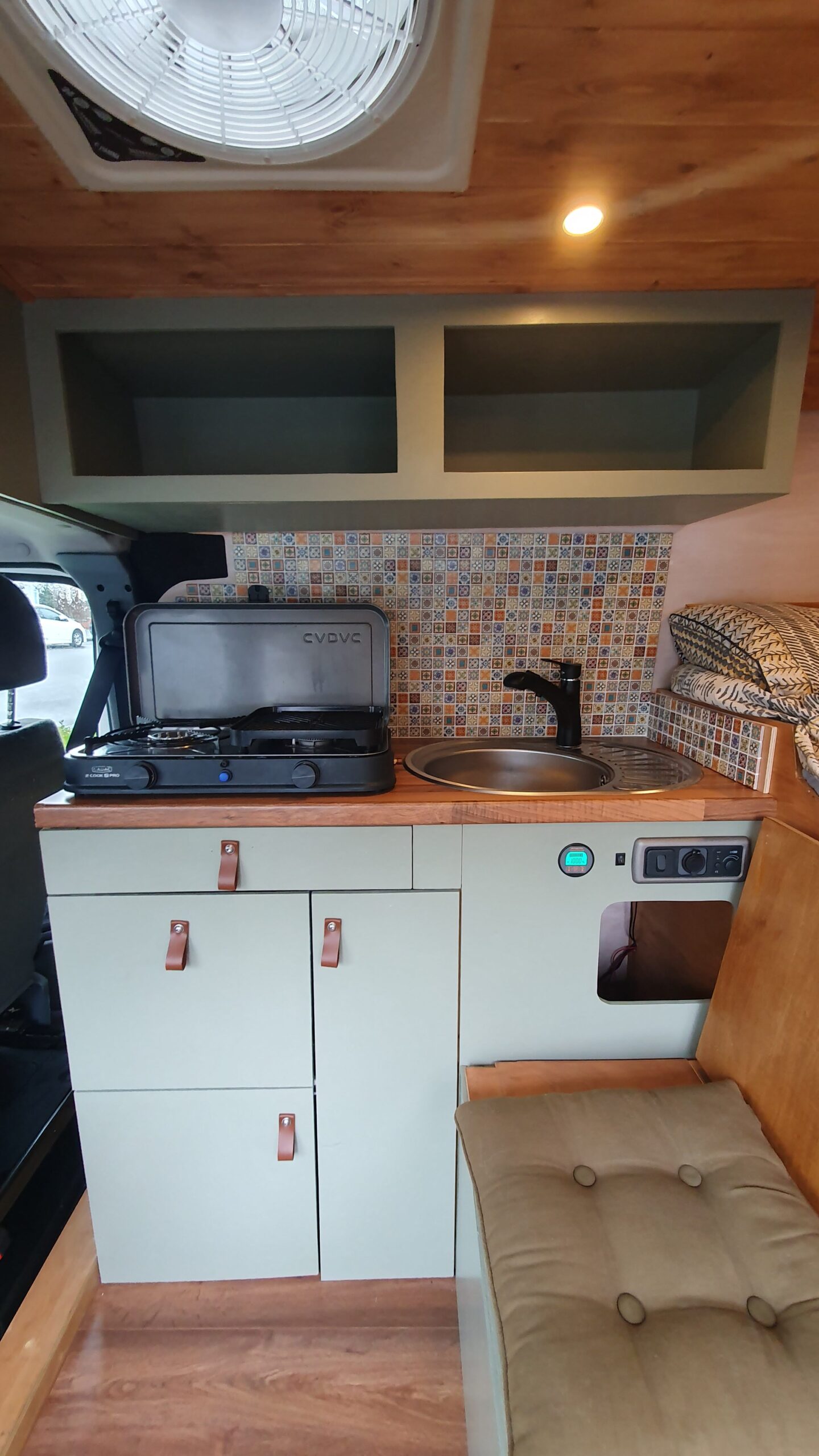

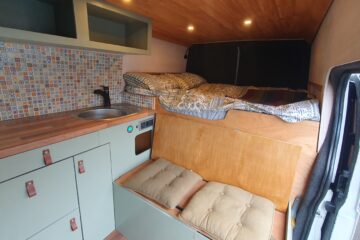

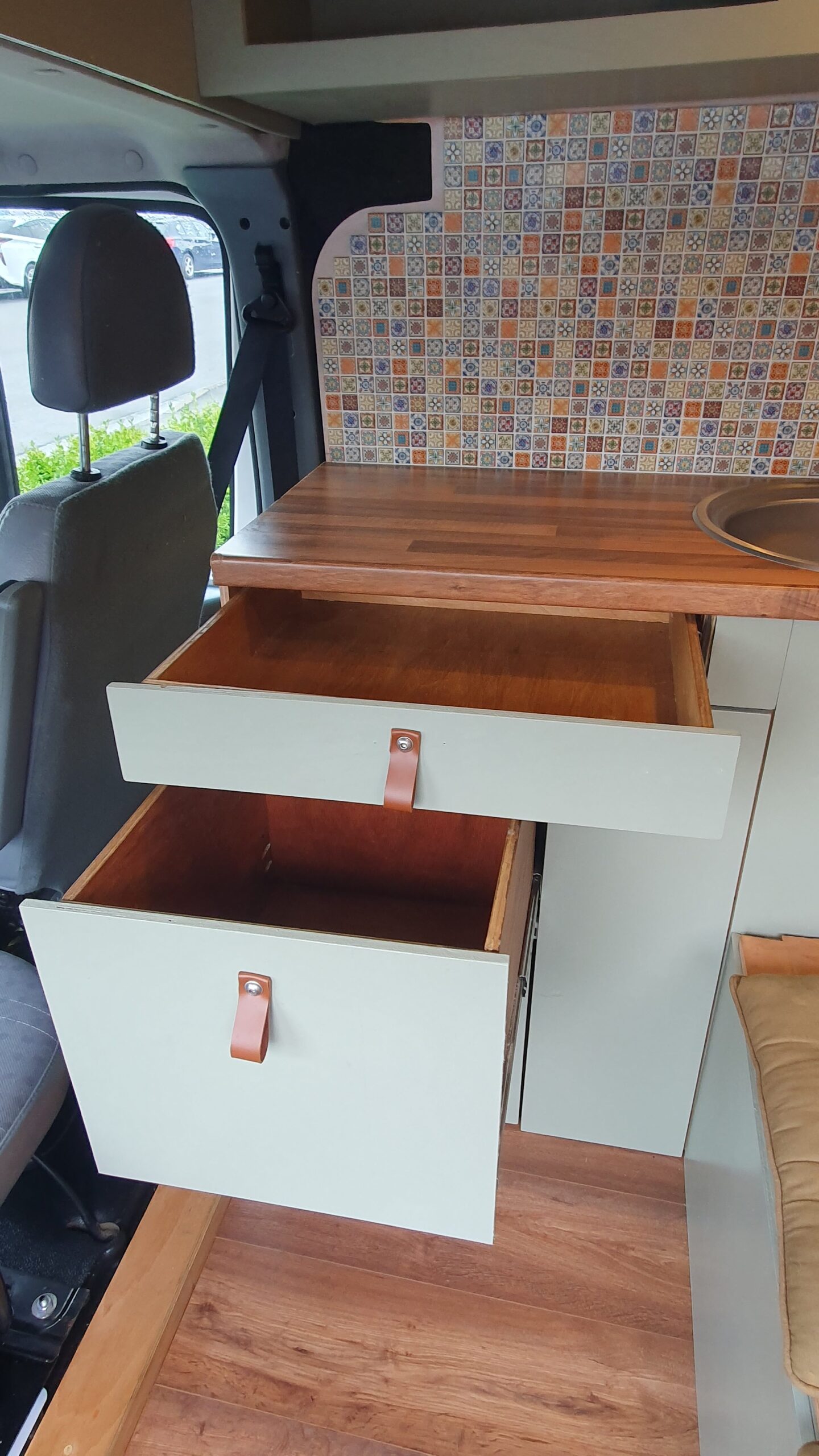

• Kitchen Storage – The unit houses one large cutlery / utensil drawer, one deep drawer for pops and pans, both water tanks, and one large cubby hole which is great for jumpers, blankets and towels. Overhead kitchen storage is great for storing food.

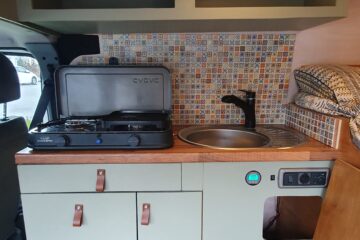

• Large sink with draining board and tap with extendable hose – fill up the saucepan without moving it from the hobs.

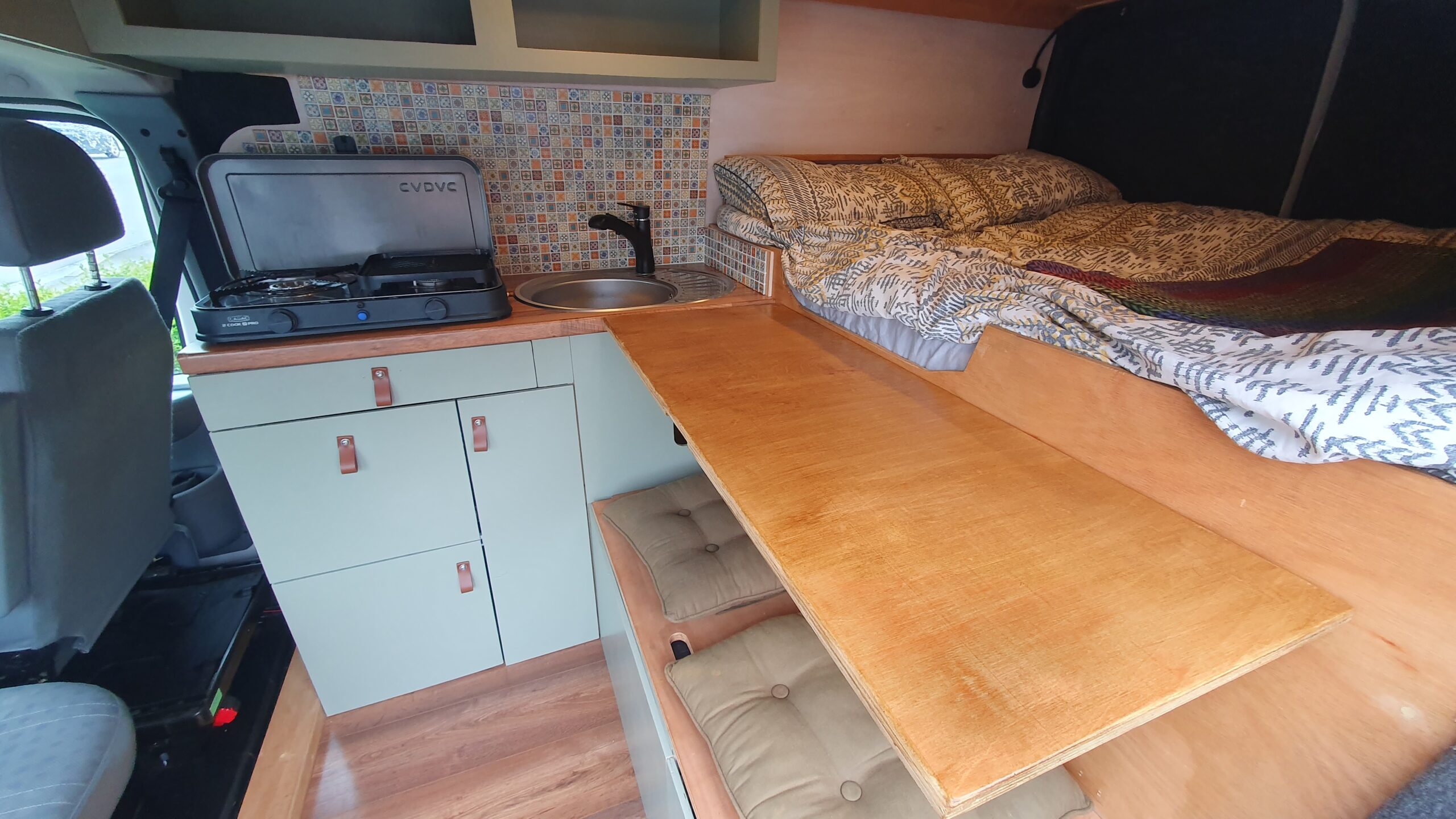

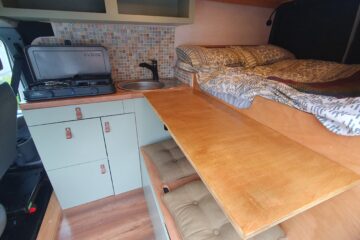

• Fold up work top – creates an L-shaped little kitchen with plenty of cooking and preparation space.

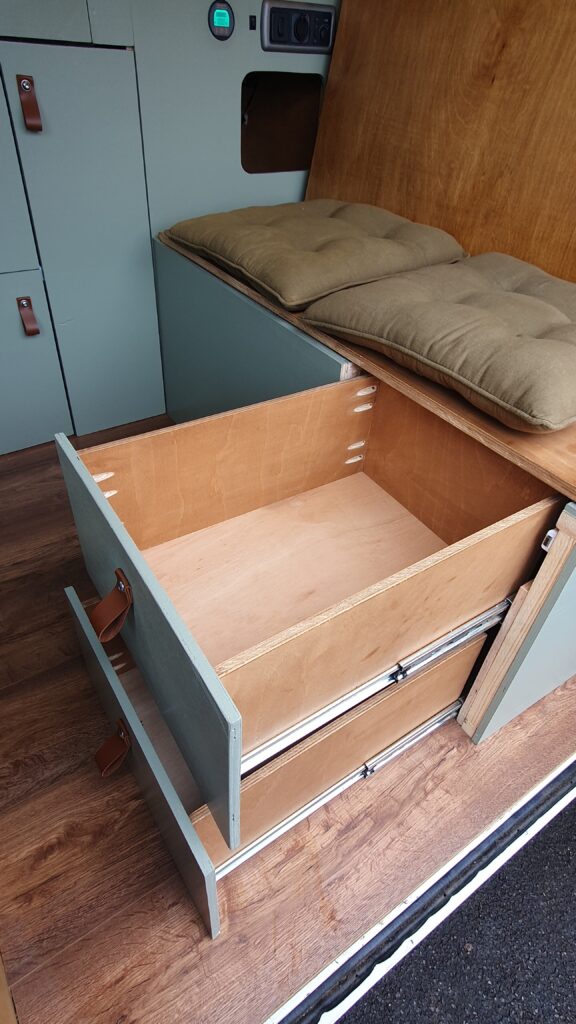

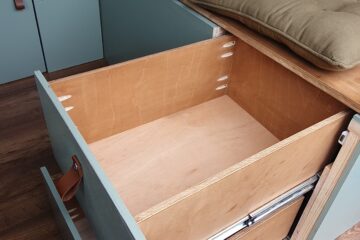

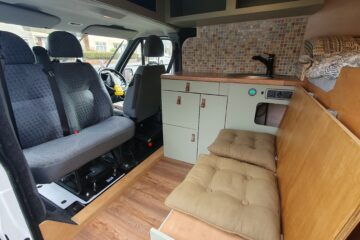

• Bench – two seat bench with storage of fridge and two large drawers, which are great for clothes.

• Swivel bench seat – 2 additional seats means four adults can comfortably chill out, drink wine, and play games.

• 25ltr freshwater tank – enough for 2 – 3 days of water for two people.

• 25ltr grey water tank – takes 4 – 5 days to fill up with two people.

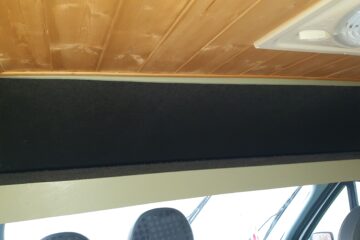

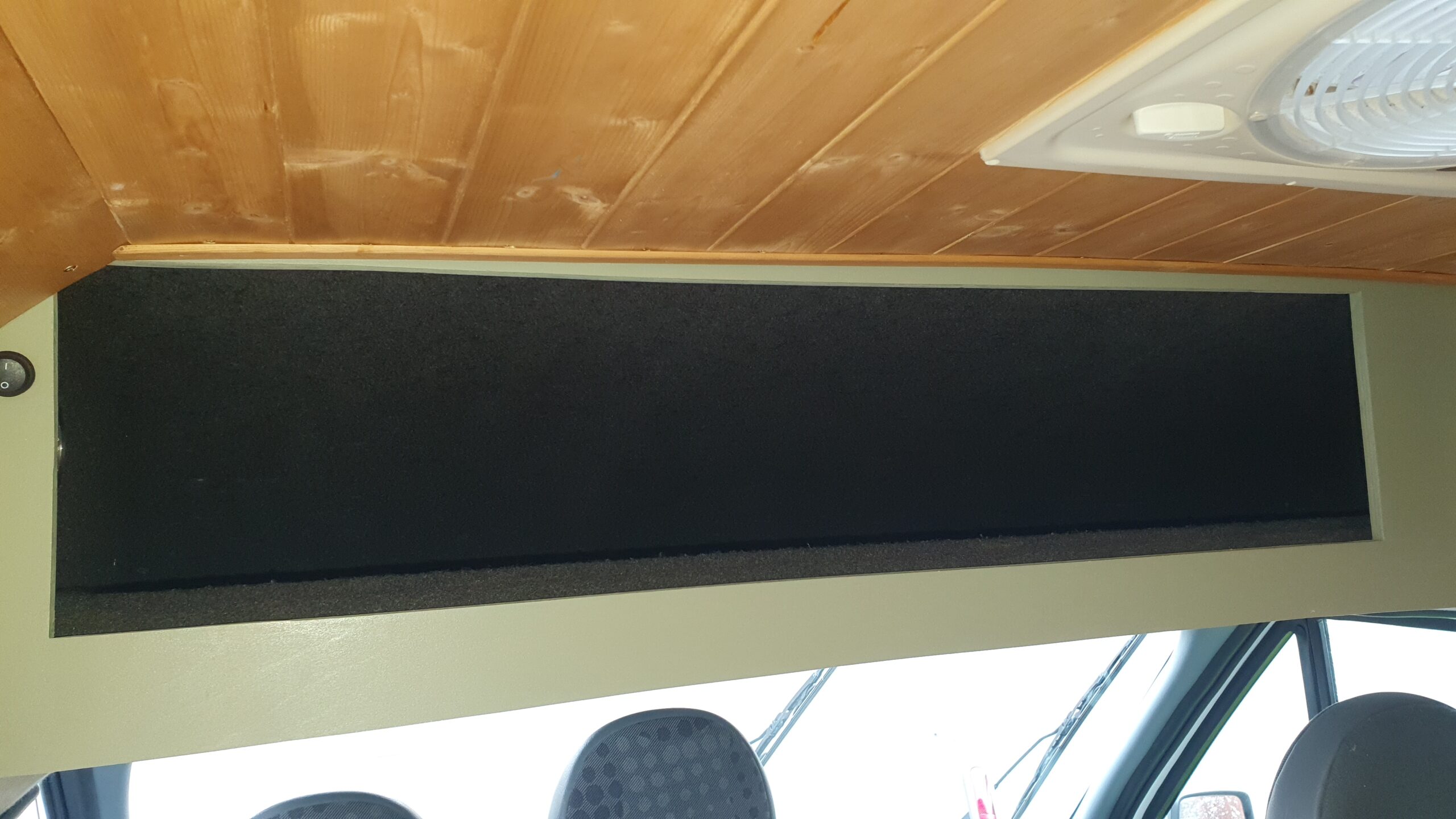

• Overhead cab storage – really large, deep storage. I store the two-burner stove and various other things up there.

• Fully insulated polyiso board and recycled plastic insulation – does a great job at keeping the van toasty in the winter and cooler in the summer.

• Complete vapour barrier – prevents condensation and moisture.

• Thermal windscreen / window sheets included – easy to (de)attach with sucker pads and rolls away in bag.

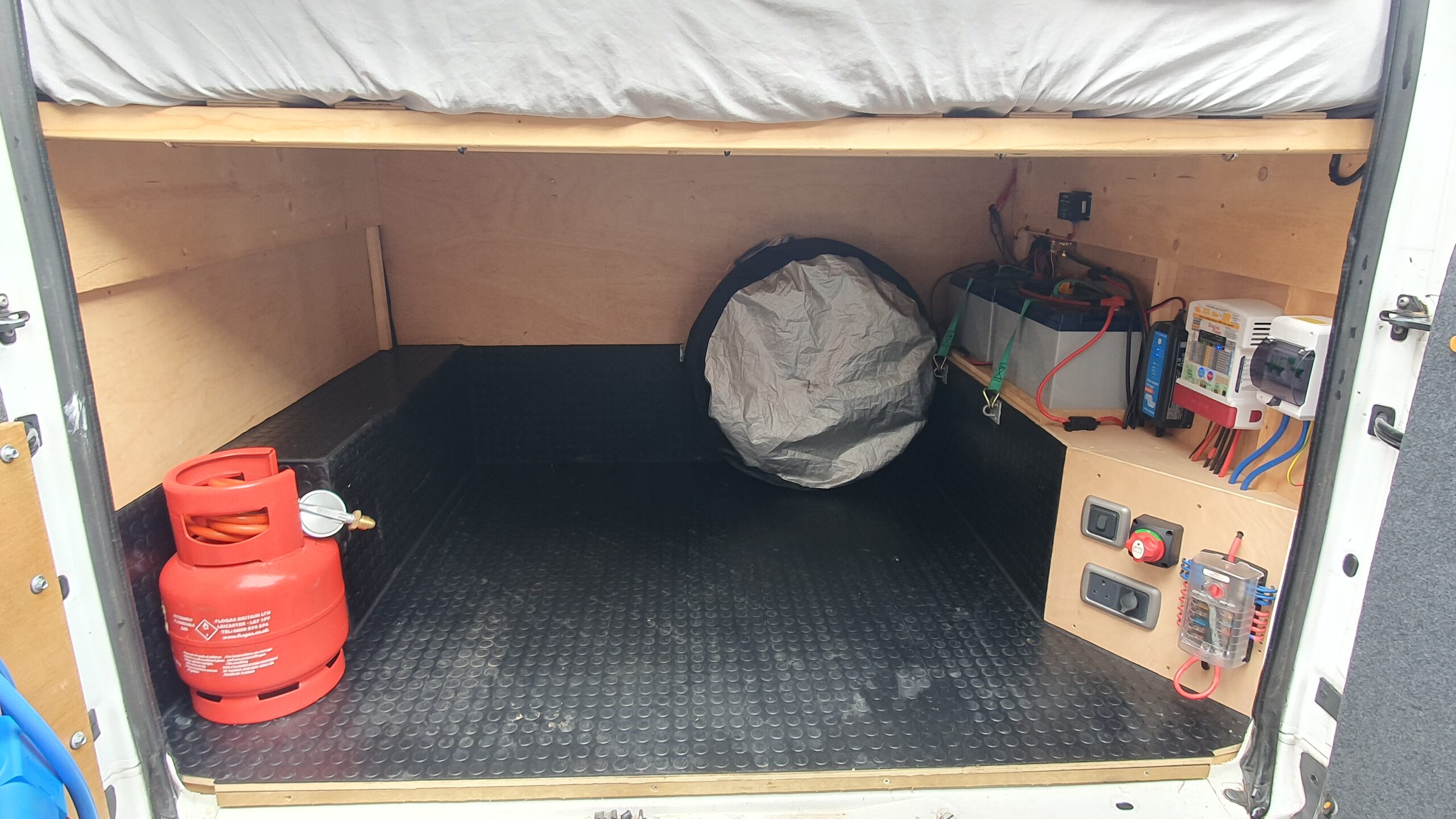

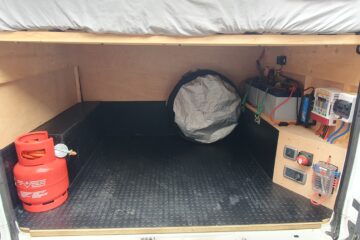

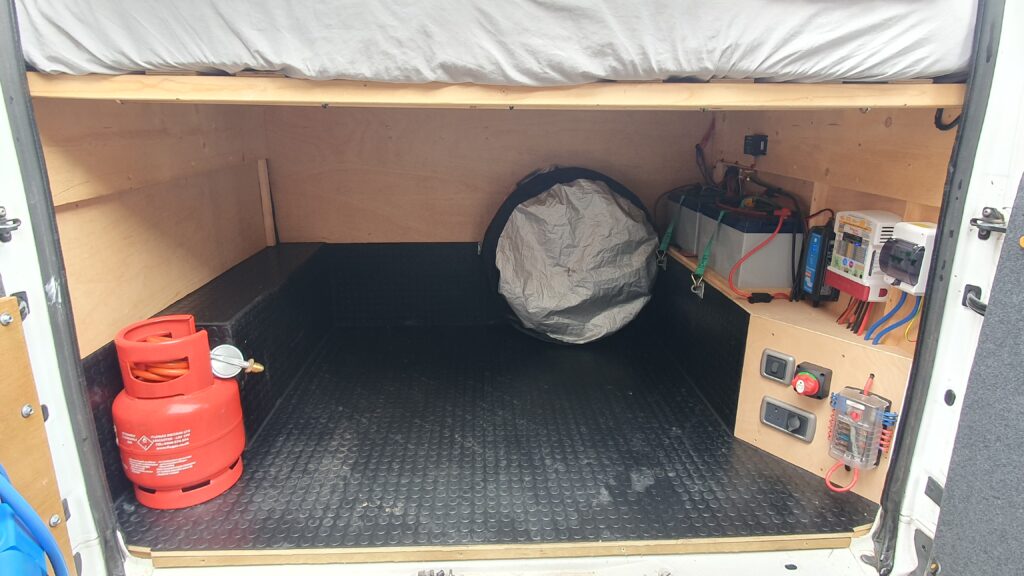

• Large garage – H 1m, W 1.7m, D 1.35m

• I have a PDF with pictures of (most of) the build process so you can purchase knowing it’s a high-quality build and well insulated to keep you toasty at night. Please ask and I will send it to you.

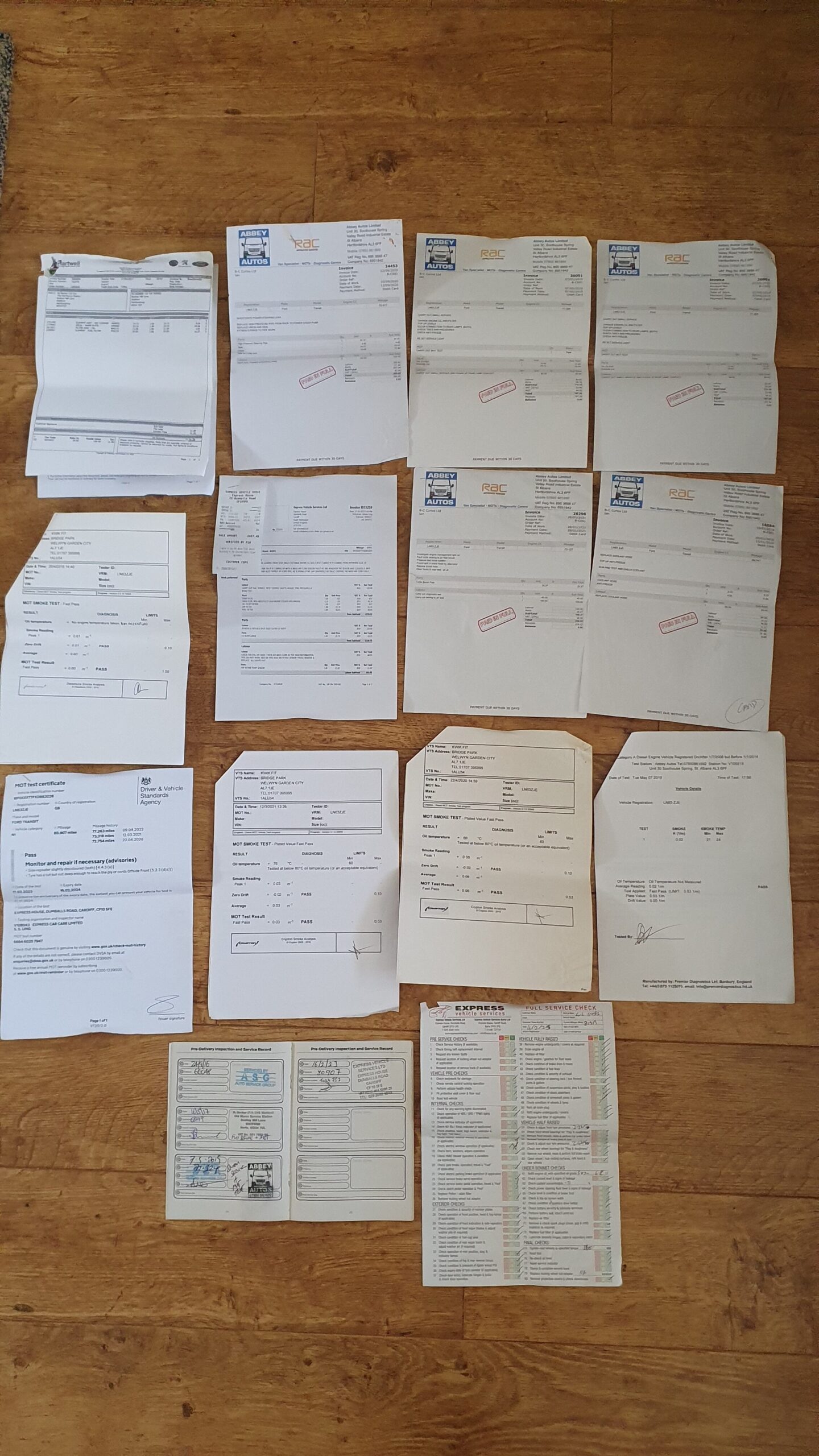

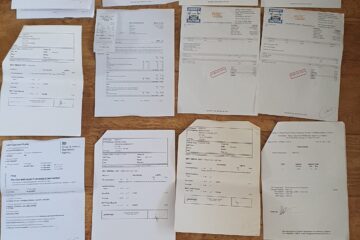

• I have invoices for all major purchases of the conversion
