VW CRAFTER MWB OFF GRID HIGH SPECS

All equipment is BRAND NEW and I have receipts for all of it which is still on warranty. Some of it for over a year like a Truma boiler, some of it 5 year warranty like Victron Charger.

This conversion fulfills all the criteria, both internally and externally, needed to be registered as a MOTORHOME by DVLA.

It is a fully off grid model as opposed to many conversions out there which work well only as a hook up on a dedicated motorhome sites. It comes with large AGM battery that can be charged using 320 watt solar panels or while driving using van’s energy + just in case, although I doubt you ever need to use it, there is a Victron charger that plugs in directly to 220v grid and can charge the leisure battery. There is a huge underslung LPG gas tank which will keep you warm in the wilderness.

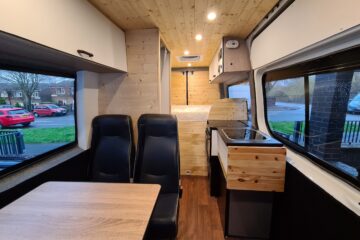

It has a reverse camera which should facilitate parking and reversing. Because of its length it is far easier to drive, park and maneuver than long campervans and motorhomes. However, at the same time it has all that is needed to live in the van full time: double bed, electricity, heating, shower, hot water, toilet, cooker, fridge, spacious cabinets and garage area.

It has 5 seats with seatbelts so 5 people can travel and two double front seats swivel.

This van conversion is loaded with features and has top of the range equipment fitted including:

– Truma 4E Combi Boiler (heating and hot water all in one) running on 12v and gas
– ABSO DMT-1250 BATTERY TO BATTERY CHARGER and MPPT
– 260 AH battery,
– VICTRON smart charger,
– Maxx air fan with remote
– Dometic CRE50 12V Compressor Fridge
– 320cm long FIAMA F80s awning
– Porta Potti toilet

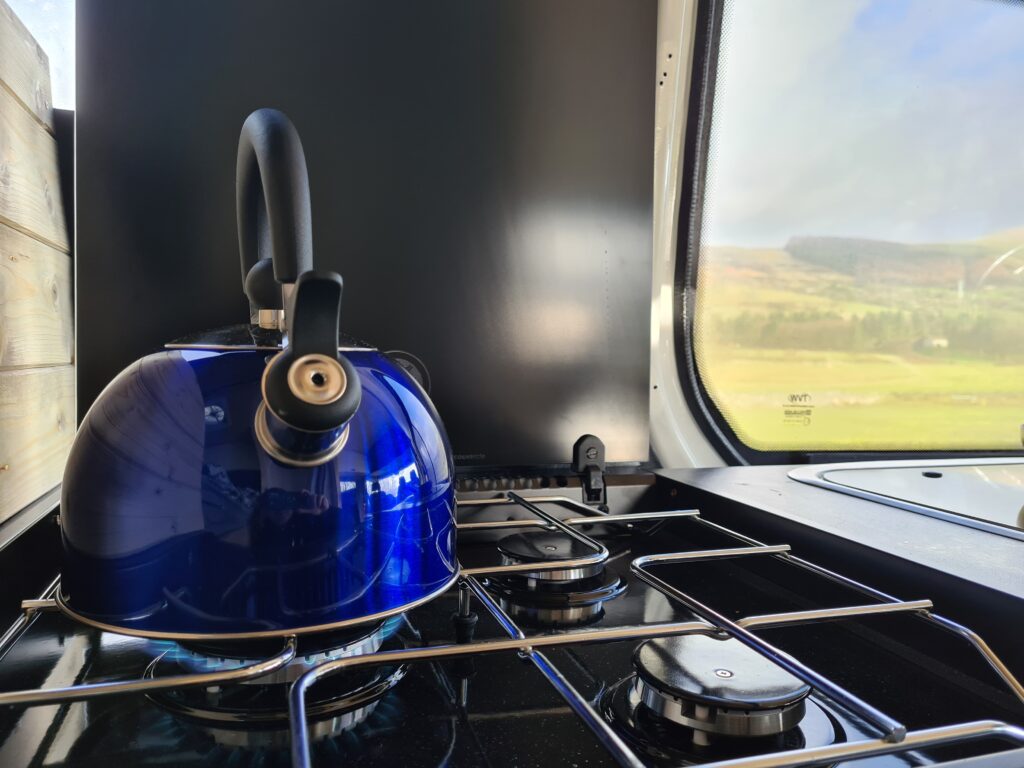

– Thetford Triplex Cooker, 3 Burner Hob Oven & Grill
– 25l underslung LPG gas tank re-fillable
– 70 litres fresh and 52 litres waste water tanks. Both underneath the van to save space!
– Full insulation to the floor, walls, ceiling and doors with vapour barrier and sound deadening (I have photos to prove that)
– Shower: Whale Elegance Mixer shower
– two extra van seats with seatbelts (allowing for 5 people to travel)
– 3 zone lighting: 2 x LED lights above the bed, 4 x LED lights in the kitchen area, 1 X LED light in the wetroom
– This van has really big storage potential with overhead cabinets and a spacious garage area.

Water System in details:

– underslung 70 litres or 15.5 gallons fresh water tank
– underslung 52 litres waste water tank
– DOMETIC SMEV 8005 with cold and hot water mixer tap
– Shurflo 12v, 30psi, 7 Lpm Pressurised Water Pump
– Fiamma A20 Expansion Tank
– water filters

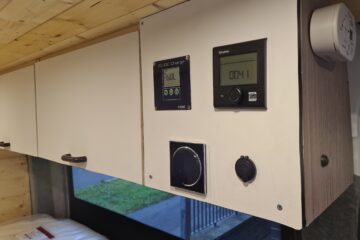

Electrics in details:

– 320 Watt Mono Solar Panel
– 260AH Expedition AGM Leisure Battery
– Victron Energy Blue Smart IP22 Charger 12/30(1)
– ABSO DMT-1250 12v 50amp BATTERY to BATTERY CHARGER + SOLAR MPPT
– 12 Blade Fuse box
– Pure Sine Wave Power Inverter 1500W/3000w peak with remote
– 2 x usb charging points

Additional Features:

Carbon monoxide detector
Water hose
reverse camera
sequoia table (which is flexible and can be easily removed if needed)
5 seats with seatbelts
swivel double front seats
Fire Extinguisher
2 keys
